DataExpert G2-11HS-12/B
Logs
chipChipset
cpuSockets
DIP40 PLCC68
speedFSB speeds
10MHz16MHz
moboForm factor
Baby AT (max 220 x 330 mm)
dimDimensions
220mm x 220mm
chipCache
None/Integrated in the CPU
ramMax RAM size
4MB
ramRAM types
30-pin SIPPDIP-18 (1bit)DIP-16 (1bit)
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
connI/O ports
1x
AT Keyboard
cardExpansion slots
6x
16-bit ISA
1x
8-bit ISA
wrench Known issues
  • Leaky Ni-Cd clock battery

The Ni-Cd battery may be leaking, risking damage to PCB layers & nearby components. Promptly remove the battery & clean corrosion/alkaline salts from the board. Use white vinegar to dissolve salts, but exercise caution as vinegar can corrode exposed metals. A thorough examination & repair may be needed. Replace battery with guide: https://github.com/wiretap-retro/Not-A-Varta

Last updated 2025-09-06T18:23:54Z
Board info score is 7.8/10
chip Chips
-> Chipset part
Headland HT12
-> Human Interface
(multiple brand) 8042 (Keyboard Controller)
-> Real-Time Clock
(multiple brand) 6818A
cpufam CPU family support
bios 1 BIOS file available

vendor AMI - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
DH12-1107-061390
Note
Core version
040990
BIOS version
Logs
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
3.01
OS support
MS-DOS
Arch
Size
56.4KB
Filename
doc No board documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1995-11-30
File
Logs
Chip
Release date
1984
File
Logs
Chip
Release date
1995-11-22
File
Logs
Chip
Release date
1994-10
File
Logs
Chip
Release date
1994-07
File
Logs
Chip
Release date
1996-01
File
Logs

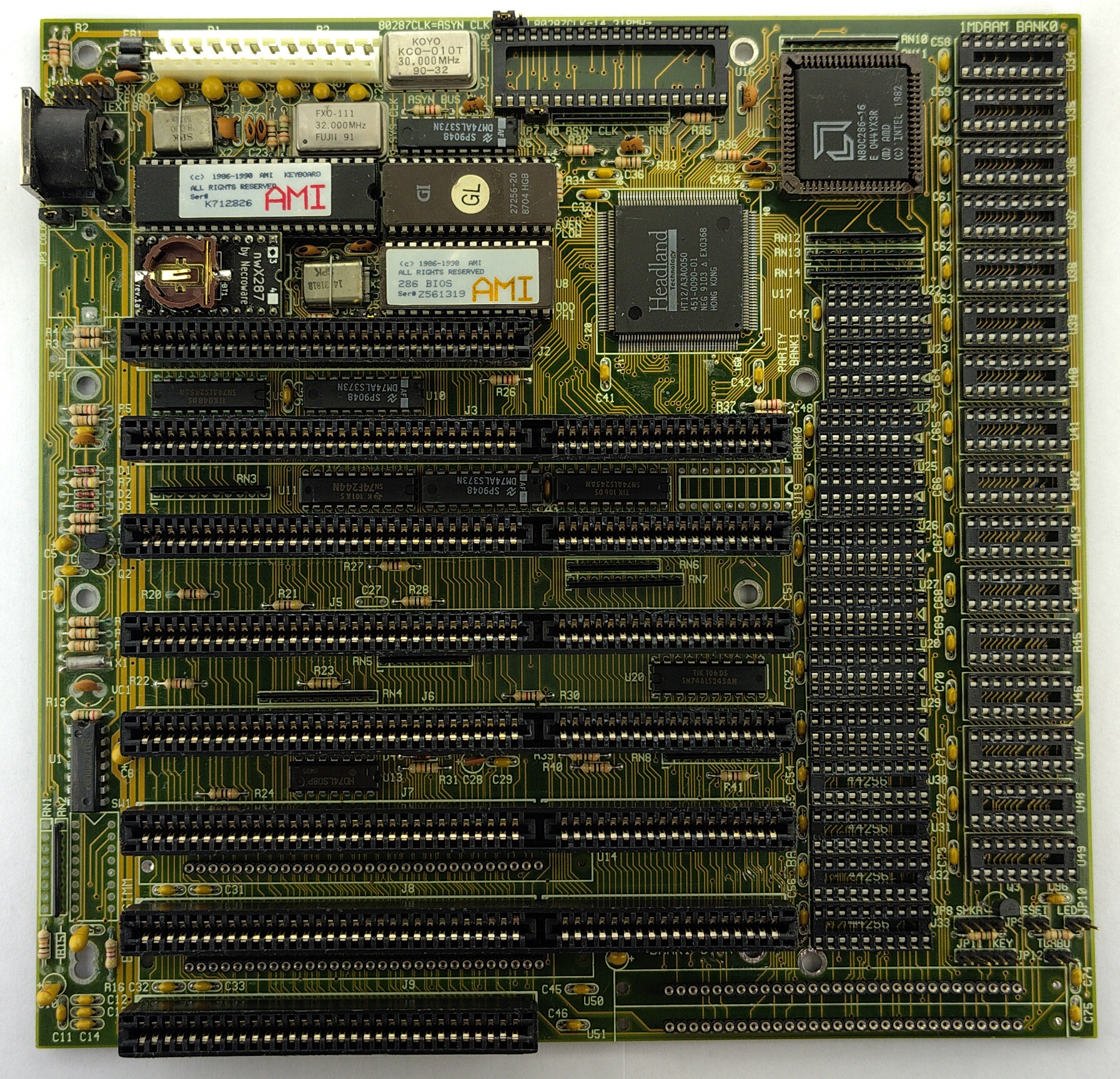

image1 Image 1 of 2 (Harakhti)

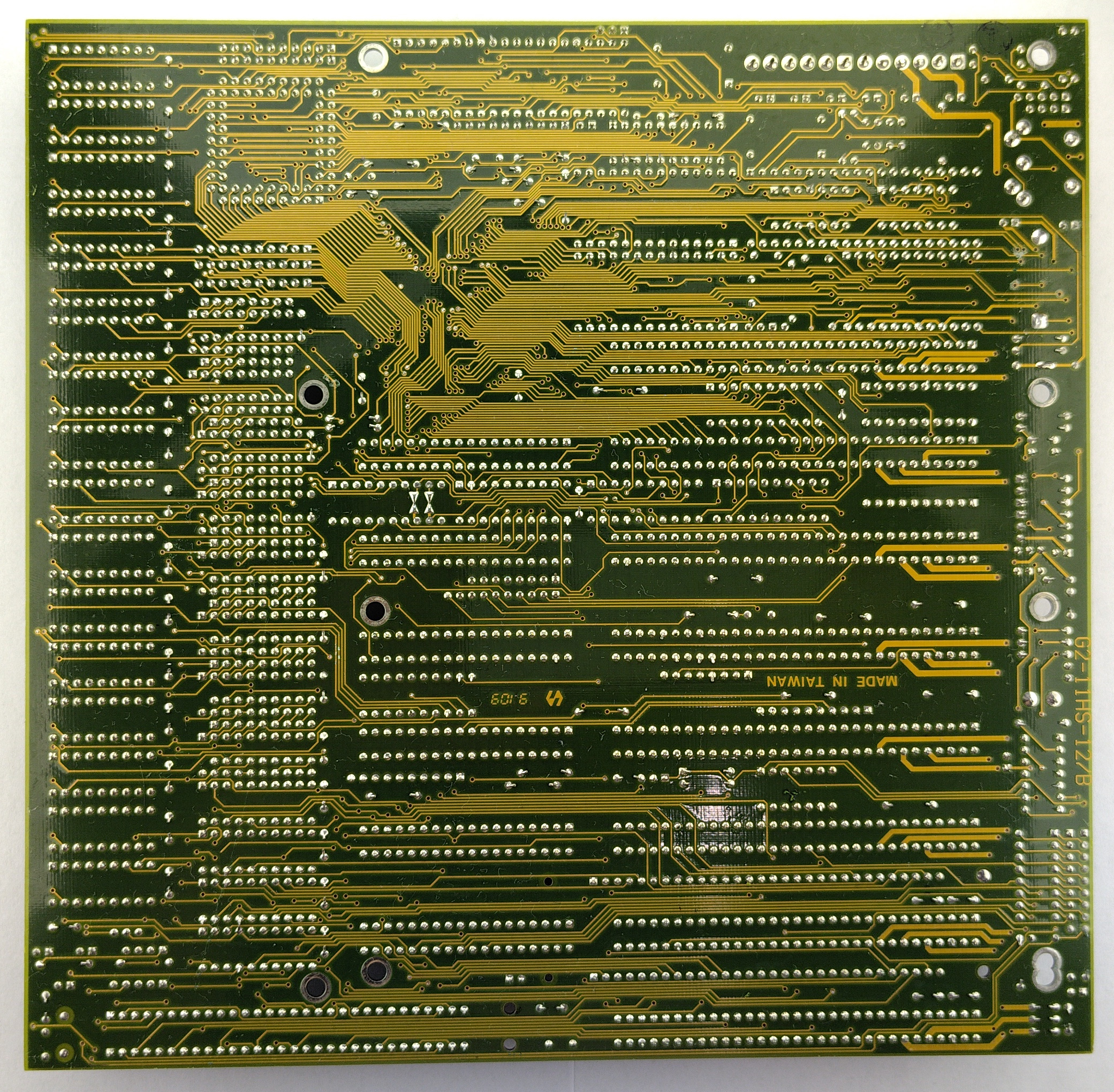

image2 Image 2 of 2 (Harakhti)
