Cubix BC 3035
Logs
chipChipset
cpuSocket
PQFP100
speedFSB speed
Empty
moboForm factor
Single Board Computer
dimDimensions
Empty
ramMax VRAM size
1MB
chipCache
None/Integrated in the CPU
ramMax RAM size
16MB
ramRAM type
72-pin Parity FPM
pwrPSU connector
Empty
tag Also known as
connI/O ports
1x
Floppy interface
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-11 modem
1x
RJ-45 LAN
2x
Serial
1x
VGA
cardExpansion slots
1x
16-bit ISA
wrench Known issues
  • Leaky Ni-Cd clock battery

The Ni-Cd battery may be leaking, risking damage to PCB layers & nearby components. Promptly remove the battery & clean corrosion/alkaline salts from the board. Use white vinegar to dissolve salts, but exercise caution as vinegar can corrode exposed metals. A thorough examination & repair may be needed. Replace battery with guide: https://github.com/wiretap-retro/Not-A-Varta

notes Notes
  • TX486SLC Series CPU
Last updated 2025-10-27T08:31:42Z
Board info score is 6.2/10
chip Chips
-> Chipset part
OPTi 82C295 (SLCWB)
-> Processor
Texas Instruments TX486SLC 25MAB
-> Video
Cirrus Logic CL-GD5428
cpufam CPU family support
bios 0 BIOS files available
drv 4 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.43
OS support
MS-DOS Windows 3.1x
Arch
x86
Size
741.9KB
Filename
Name
Version
3.50
OS support
Windows NT 3.1 Windows NT 3.5x
Arch
x86
Size
140KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 3.1x
Arch
x86
Size
1.4MB
Filename
Version
OS support
Windows 3.1x
Arch
x86
Size
600.3KB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

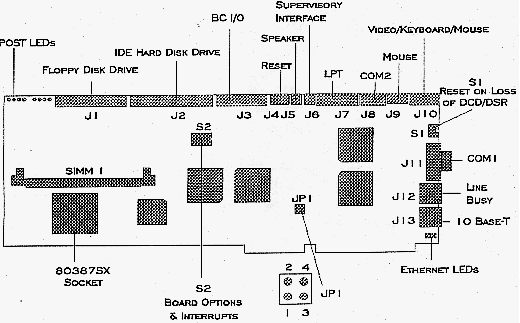

image1 Image 1 of 2 (Cubix corporation)

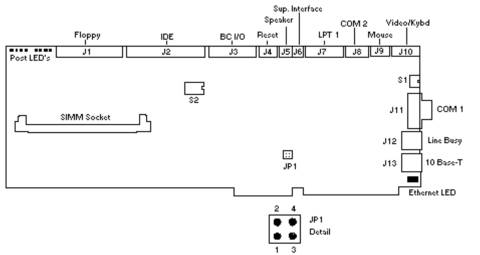

image2 Image 2 of 2 (Cubix corporation)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
