CompuAdd LP486MS
Logs
chipChipset
cpuSocket
Socket 2 (PGA238)
speedFSB speeds
16MHz25MHz33MHz40MHz
moboForm factor
LPX (max 229 x 330 mm)
dimDimensions
181 x 330 mm
ramMax VRAM size
2MB
chipCache
64KB128KB256KB
ramMax RAM size
64MB(4MB on board)
ramRAM type
Empty
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
tag Also known as
connI/O ports
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
1x
VGA
cardExpansion slots
5x
16-bit ISA
wrench Known issues

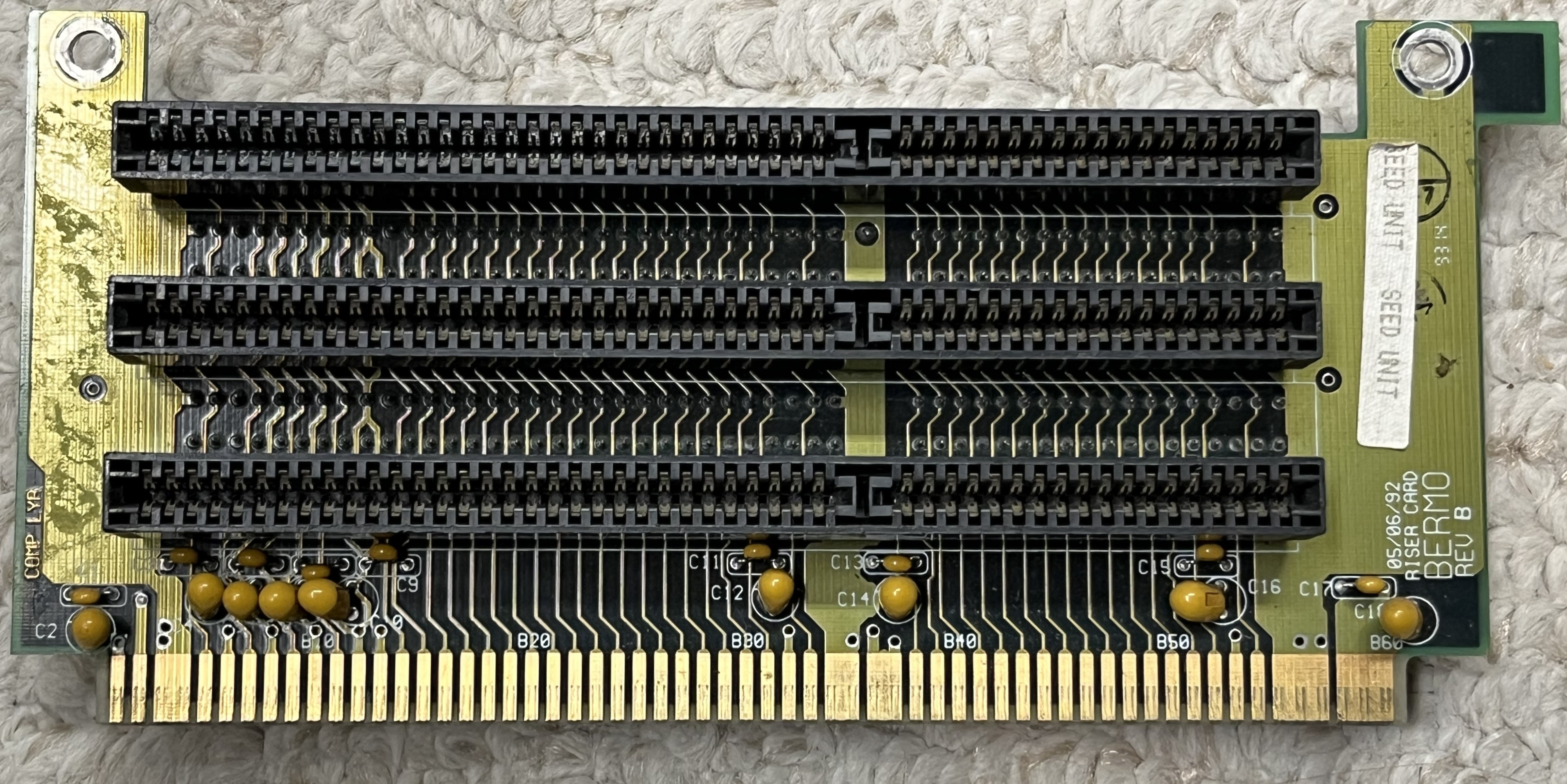

  • Expansion slots are on proprietary riser

The listed slots are on the riser card that came with the motherboard.
If you have this board make sure you have the riser for it.

notes Notes

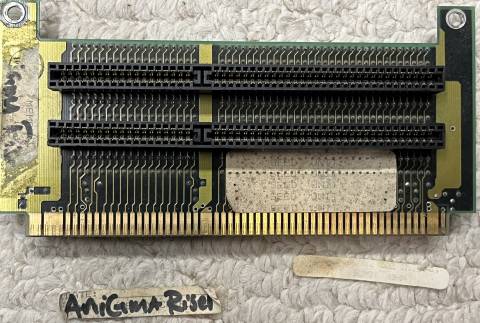

Has riser "BERMO REV B" that was hand labeled "Anigima Riser" (sic) Onboard Mach32 is VLB and reports as "Graphics Ultra Pro" BIOS has an option for "Local Bus IDE" Enable & Blockmode

Last updated 2025-06-28T20:03:34Z
Board info score is 7.5/10
bios 1 BIOS file available

vendor Phoenix - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
Core version
BIOS version
Logs
drv 10 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
August 27, 1991
OS support
Windows 3.0
Arch
x86
Size
256.8KB
Filename
Name
Version
N/A
OS support
Windows NT 3.1
Arch
x86
Size
75.6KB
Filename
Name
Version
2.60
OS support
MS-DOS OS/2 2.x OS/2 Warp 3.x Windows 3.1x
Arch
x86
Size
2.7MB
Filename
Name
Version
1992-04-06
OS support
Windows 3.1x
Arch
x86
Size
221.8KB
Filename
Name
Version
1992-04-15
OS support
Windows 3.1x
Arch
x86
Size
228.1KB
Filename
Name
Version
1992-04-03
OS support
Windows 3.1x
Arch
x86
Size
705.8KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 3.1x
Arch
x86
Size
216.7KB
Filename
Version
OS support
Windows 3.1x
Arch
x86
Size
528.4KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 3.1x
Arch
x86
Size
923.8KB
Filename
Version
OS support
Windows 3.1x
Arch
x86
Size
754.7KB
Filename
doc No board documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
1995-12
File
Logs
Family
Release date
1989-04
File
Logs
Family
Release date
1990
File
Logs
Family
Release date
1992-10
File
Logs
Family
Release date
1992-02
File
Logs

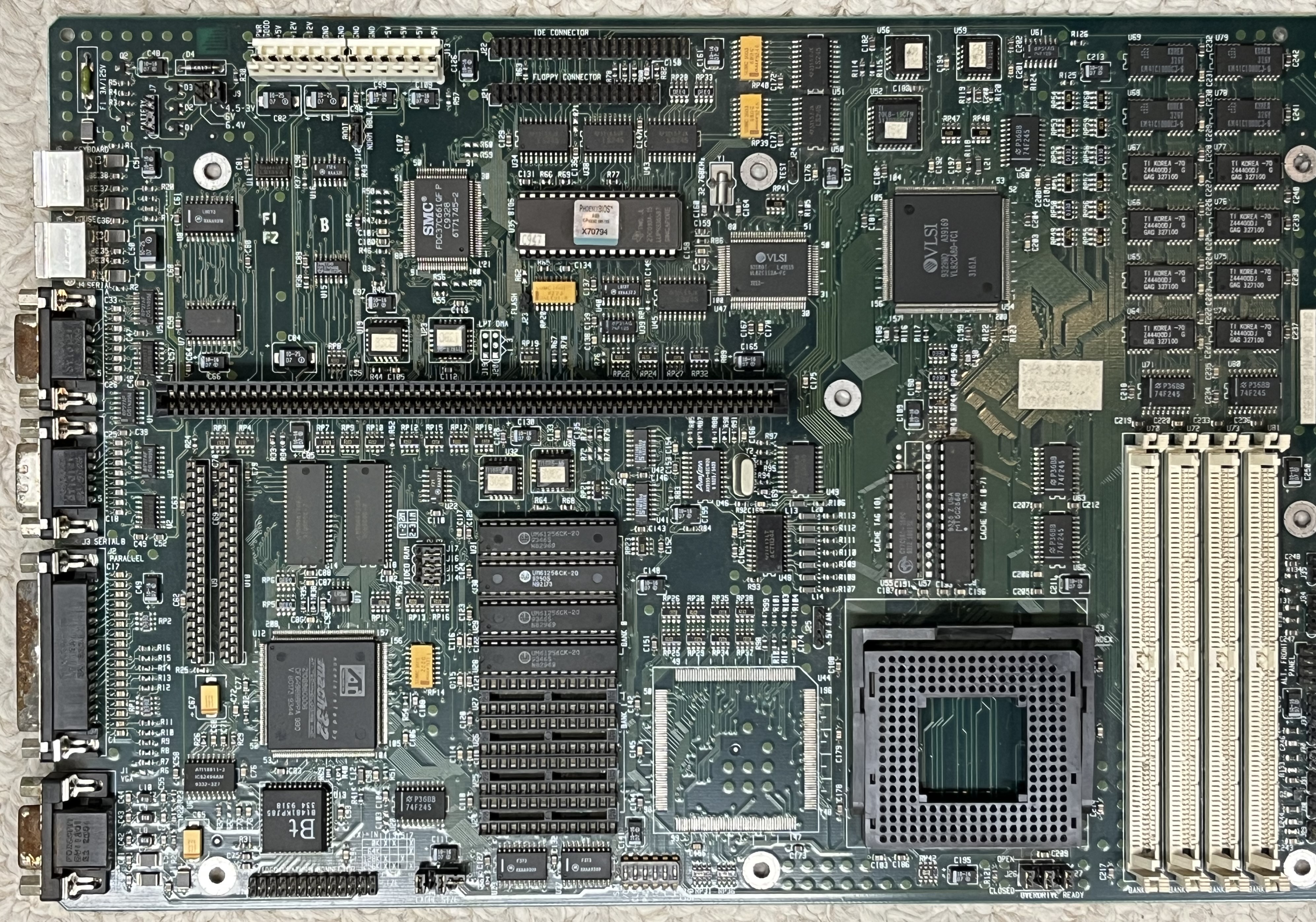

image1 Image 1 of 4 (Douglar)

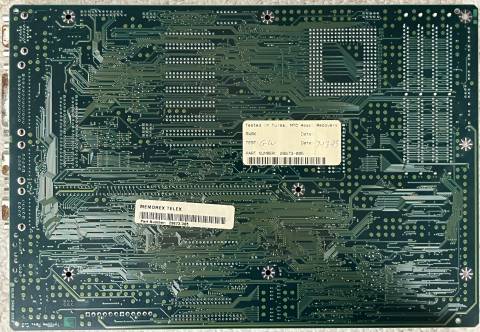

image2 Image 2 of 4 (Douglar)
image3 Image 3 of 4 (Douglar)
image4 Image 4 of 4 (Douglar)
