Compaq ProLinea 3/25zs (143331-001) (RoadRunner)
Logs
chipChipset
cpuSockets
PLCC68 PQFP100
speedFSB speed
25MHz
moboForm factor
LPX (max 229 x 330 mm)
dimDimensions
240mm x 200mm
ramMax VRAM size
512KB
chipCache
None/Integrated in the CPU
ramMax RAM size
16MB
ramRAM type
30-pin SIMM
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
tag Also known as
  • Compaq diagram 002904 assembly 002903

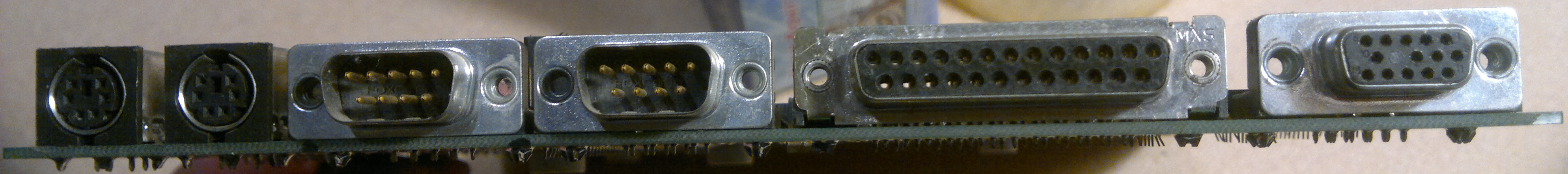

connI/O ports
1x
Floppy interface
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
1x
VGA
cardExpansion slots
Empty
wrench Known issues
  • Expansion slots are on proprietary riser

The listed slots are on the riser card that came with the motherboard.
If you have this board make sure you have the riser for it.

Last updated 2025-06-28T19:19:49Z
Board info score is 8.5/10
bios 1 BIOS file available

vendor Compaq - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note

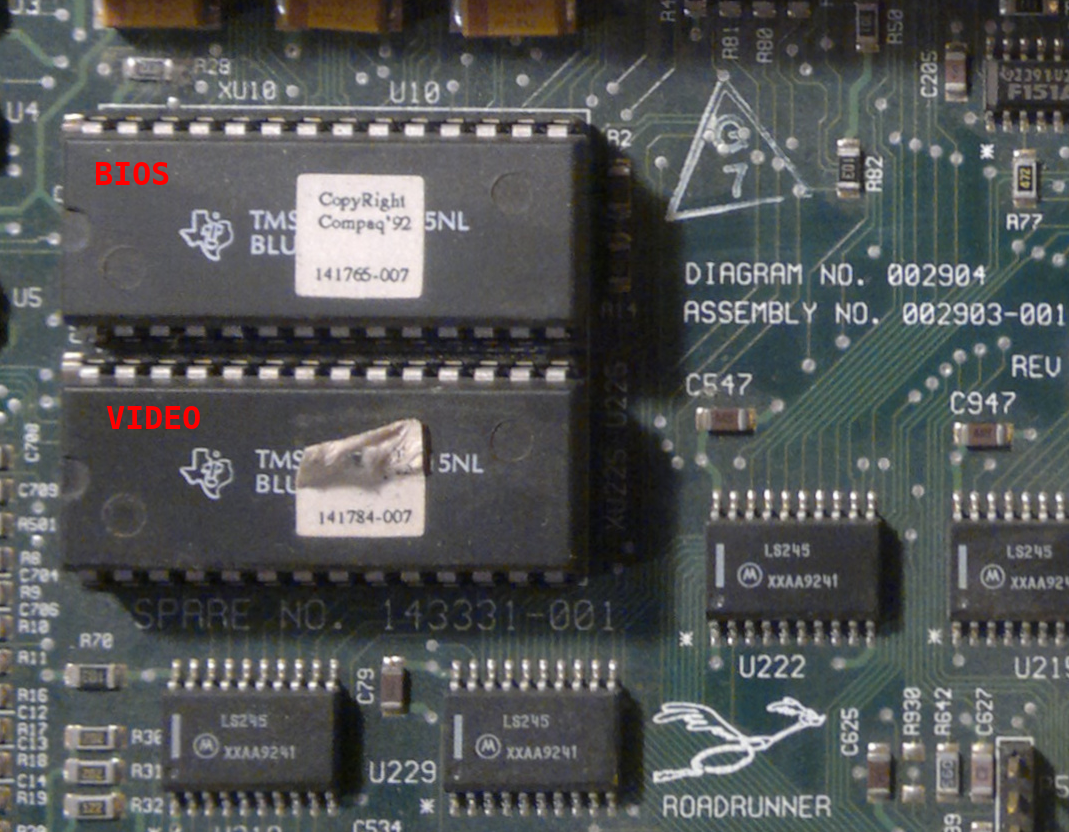

Main System BIOS and Video BIOS
Core version
BIOS version
Logs
drv No drivers available

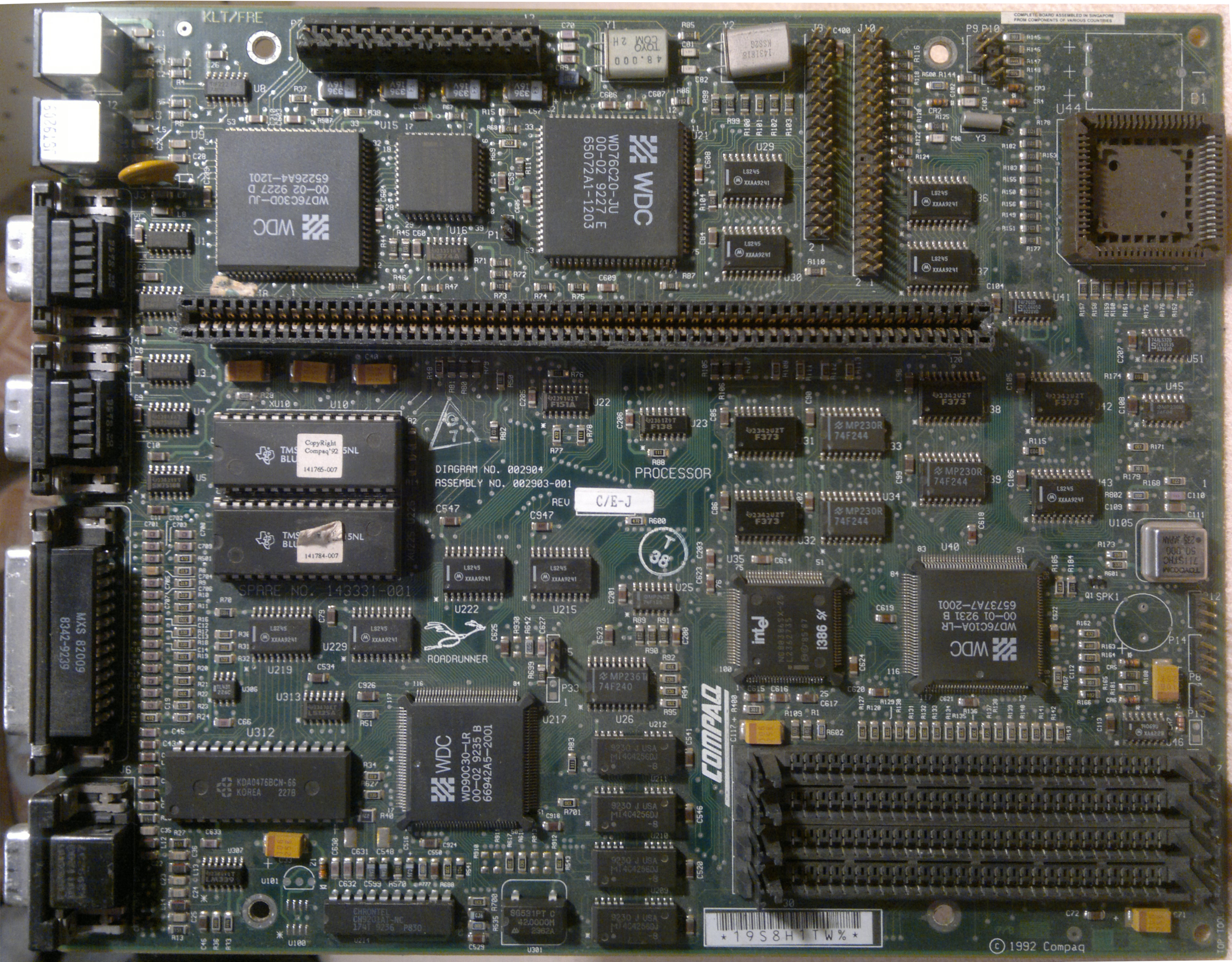

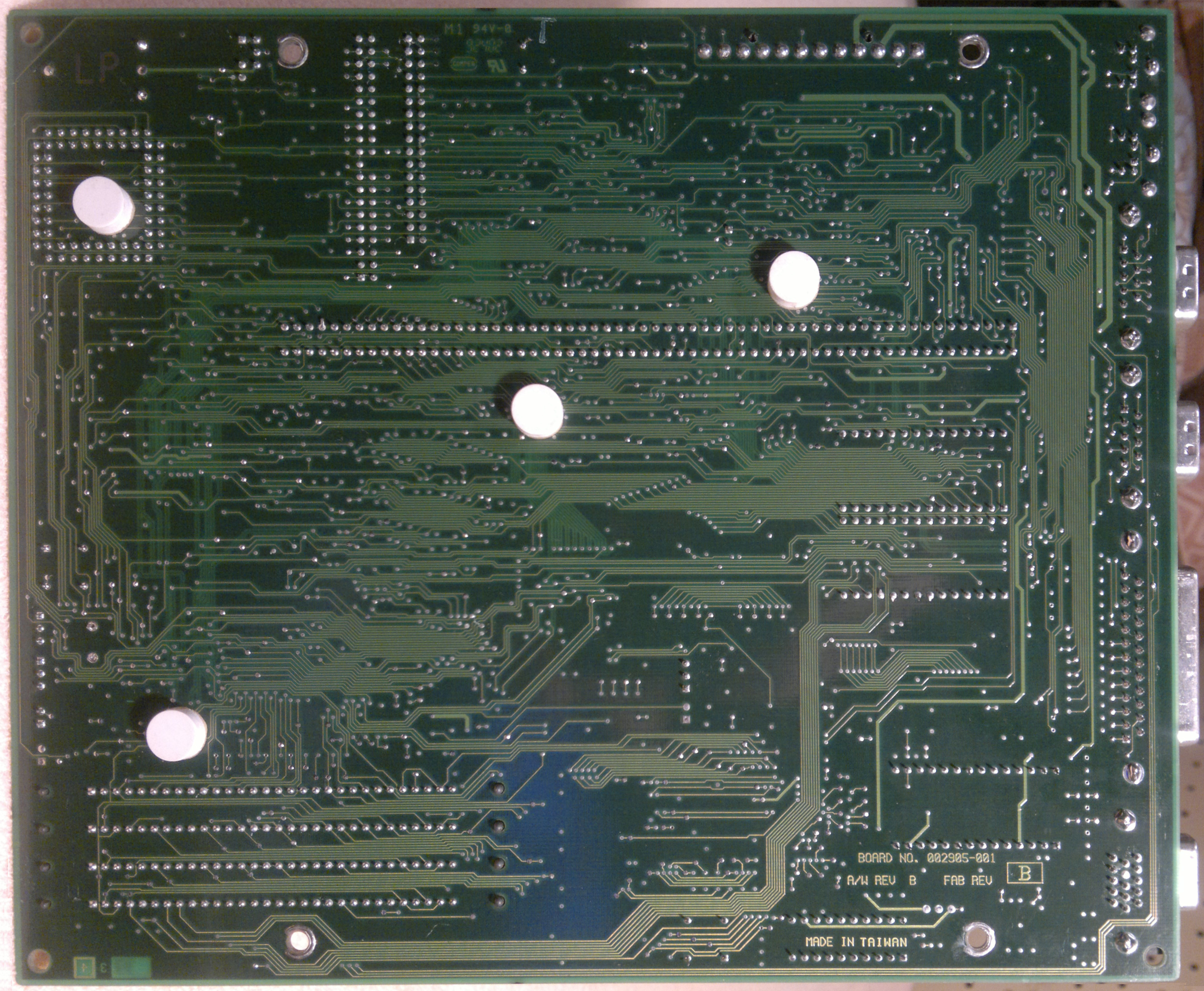

image1 Image 1 of 6 (Microhouse)
image2 Image 2 of 6 (pc2005)
image3 Image 3 of 6 (pc2005)
image4 Image 4 of 6 (pc2005)
image5 Image 5 of 6 (pc2005)
image6 Image 6 of 6 (pc2005)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
