Compaq PRESARIO CDS 774/972/974/982/992
Logs
chipChipset
cpuSocket
Socket 5 (PGA320)
speedFSB speeds
50MHz60MHz
moboForm factor
NLX (max 229 x 345 mm)
dimDimensions
330mm x 218mm
ramMax VRAM size
2MB
chipCache
256KB
ramMax RAM size
136MB
ramRAM type
72-pin FPM
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
tag Also known as
connI/O ports
1x
3.5mm Audio Combo
1x
Gameport
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
1x
VGA
cardExpansion slots
Empty
wrench Known issues
  • Expansion slots are on proprietary riser

The listed slots are on the riser card that came with the motherboard.
If you have this board make sure you have the riser for it.

Last updated 2025-10-11T18:19:14Z
Board info score is 7.4/10
bios 0 BIOS files available
drv 4 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.43
OS support
MS-DOS Windows 3.1x
Arch
x86
Size
741.9KB
Filename
Name
Version
1.24
OS support
OS/2 2.x Windows 3.1x Windows NT 3.1 Windows NT 3.5x
Arch
x86
Size
9.9MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 3.1x
Arch
x86
Size
1.4MB
Filename
Version
OS support
Windows 3.1x
Arch
x86
Size
600.3KB
Filename
doc 2 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1994-04
File
Logs
Chip
Release date
File
Logs
image1 Image 1 of 3 (Microhouse)
image2 Image 2 of 3

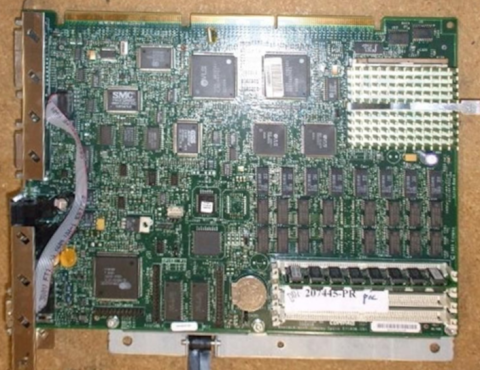

image3 Image 3 of 3

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
