Compaq Presario 4108 and Presario 4110 system board
Logs
chipChipset
cpuSocket
Socket 7 (PGA321)
speedFSB speeds
50MHz60MHz66MHz
moboForm factor
LPX (max 229 x 330 mm)
dimDimensions
Empty
ramMax VRAM size
2MB
chipCache
256KB512KB
ramMax RAM size
128MB
ramRAM types
72-pin FPM72-pin EDO
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
tag Also known as
connI/O ports
1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
2x
USB 1.x
1x
VGA
cardExpansion slots
Empty
notes Notes

Manufactured by MiTAC for Compaq

Last updated 2025-07-06T18:54:16Z
Board info score is 6.5/10
bios 0 BIOS files available
drv 10 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
3.00
OS support
OS/2 Warp 3.x Windows NT 3.5x Windows NT 4.0
Arch
x86
Size
1.2MB
Filename
Name
Version
4.05.02
OS support
Windows 9x
Arch
x86
Size
358.1KB
Filename
Name
Version
2.41.07
OS support
Windows 9x
Arch
x86
Size
183.6KB
Filename
Name
Version
1.70.04
OS support
Windows 3.1x
Arch
x86
Size
606.1KB
Filename
Name
Version
1.6
OS support
OS/2 1.x OS/2 2.x OS/2 Warp 3.x
Arch
x86
Size
1.2MB
Filename
Name
Version
2.01.09
OS support
Windows 9x
Arch
x86
Size
124.2KB
Filename
Name
Version
2.00.18
OS support
Windows NT 4.0
Arch
x86
Size
177.7KB
Filename
Name
Version
3.7B / 3.7D
OS support
MS-DOS NetWare Server 3 NetWare Server 4 OS/2 Warp 3.x Windows 3.1x Windows 9x Windows NT 3.5x
Arch
x86
Size
1.6MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 9x
Arch
x86
Size
569.7KB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
577.8KB
Filename

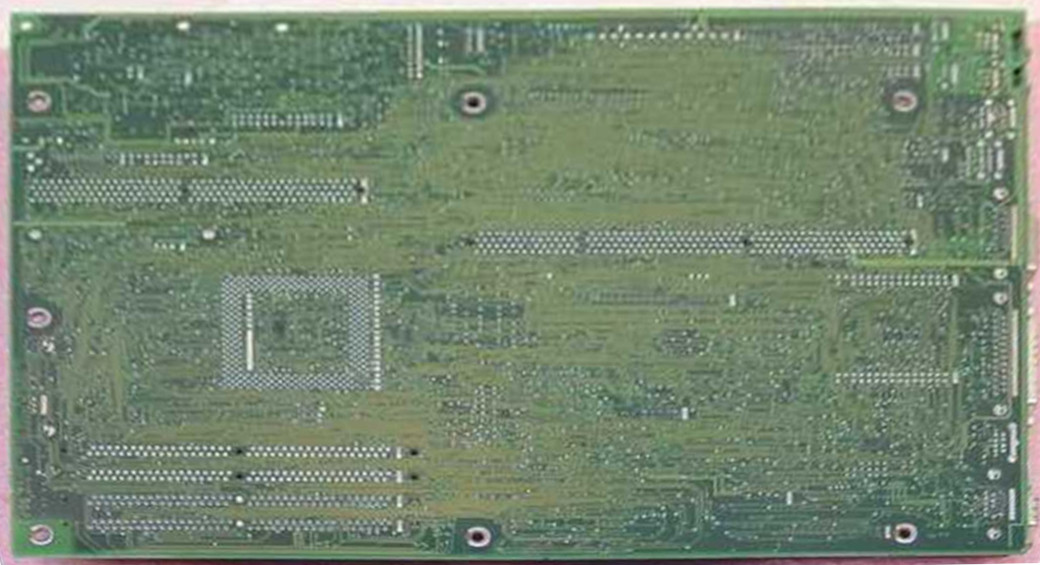

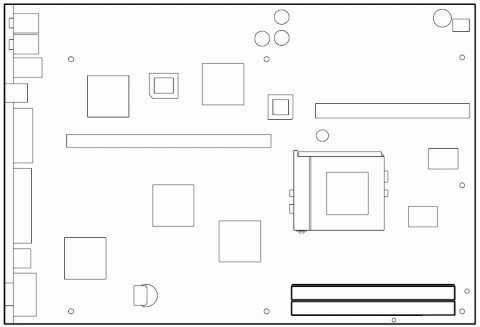

image1 Image 1 of 3

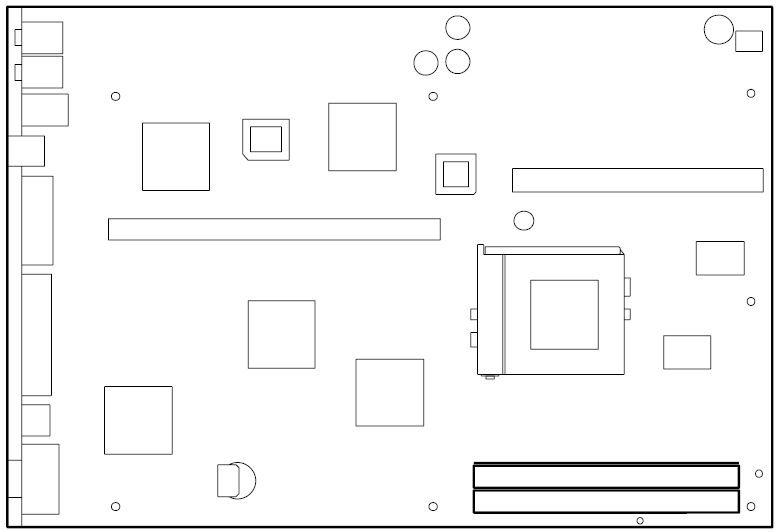

image2 Image 2 of 3

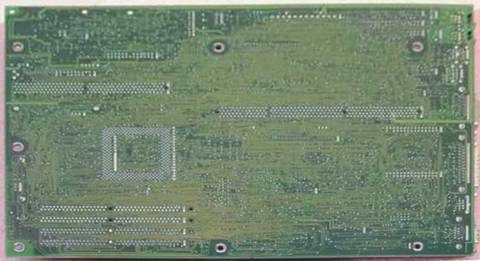

image3 Image 3 of 3
