Compaq DESKPRO XE 486 (3.3V support)
Logs
chipChipset
cpuSocket
Socket 2 (PGA238)
speedFSB speeds
25MHz33MHz50MHz
moboForm factor
LPX (max 229 x 330 mm)
dimDimensions
330mm x 218mm
chipCache
64KB256KB
ramMax RAM size
32MB
ramRAM type
72-pin FPM
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
tag Also known as
connI/O ports
1x
3.5mm Audio Combo
1x
Floppy interface
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
Serial
1x
VGA
cardExpansion slots
Empty
wrench Known issues
  • Expansion slots are on proprietary riser

The listed slots are on the riser card that came with the motherboard.
If you have this board make sure you have the riser for it.

Last updated 2025-06-28T17:46:17Z
Board info score is 6.7/10
bios 0 BIOS files available

vendor AMI - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
Core version
BIOS version
Logs
drv No drivers available
doc No board documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1994-04
File
Logs
Chip
Release date
1994-11
File
Logs
Family
Release date
File
Logs
Family
Release date
1996-03
File
Logs
Family
Release date
1995-07
File
Logs
Family
Release date
1995-10
File
Logs
Family
Release date
1995-12
File
Logs
Family
Release date
1989-04
File
Logs
Family
Release date
1990
File
Logs
Family
Release date
1992-10
File
Logs
Family
Release date
1992-02
File
Logs
image1 Image 1 of 3 (Microhouse)
image2 Image 2 of 3 (matt)

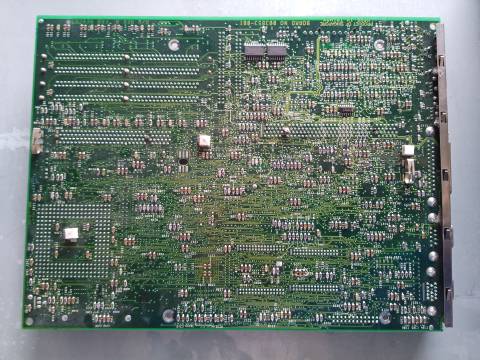

image3 Image 3 of 3 (matt)
