Taiwan Commate / Commell S630MA
Logs
chipChipset
cpuSocket
Socket 370 (PGA370)
speedFSB speeds
66MHz100MHz
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
235mm x 170mm
ramMax VRAM size
128MB
chipCache
None/Integrated in the CPU
ramMax RAM size
1GB
ramRAM type
SDR UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX)
connI/O ports
1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
2x
Serial
4x
USB 1.x
1x
VGA
cardExpansion slots
3x
32-bit PCI
1x
AMR
Last updated 2025-05-29T20:06:23Z
Board info score is 9.4/10
bios 2 BIOS files available

vendor Award - 2 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
11/27/2000-SiS-630-6A6IRTP9C-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
07/12/2000-SiS-630-6A6IRTP9C-00
Note
Core version
6.00PG
BIOS version
Logs
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
N/A
OS support
Windows 2000 Windows 9x Windows NT 4.0
Arch
x86
Size
1.8MB
Filename
doc 2 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2002-02
File
Logs
Family
Release date
2000-02
File
Logs
Family
Release date
2001-06
File
Logs
Socket
Release date
File
Logs
Socket
Release date
1997-05
File
Logs
Socket
Release date
File
Logs
Socket
Release date
1999-04
File
Logs
Socket
Release date
1999-12
File
Logs
Socket
Release date
2000-07
File
Logs
image1 Image 1 of 2 (Taiwan Commate / Commell)

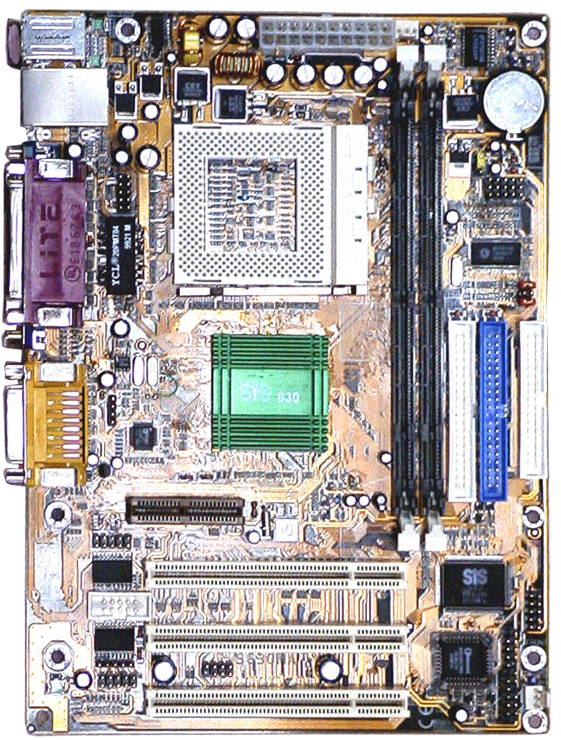

image2 Image 2 of 2

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
