Chassis Plans JXTS6966
Logs
chipChipset
cpuSocket
Socket B (LGA1366)
speedFSB speed
Empty
moboForm factor
Single Board Computer
dimDimensions
338mm x 126mm
ramMax VRAM size
32MB
chipCache
None/Integrated in the CPU
ramMax RAM size
32GB
ramRAM type
204-pin DDR3 SO-DIMM
pwrPSU connector
Empty
tag Also known as
connI/O ports
1x
Floppy interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
RJ-45 LAN
6x
SATA II
2x
Serial
4x
USB 2.0
1x
VGA
cardExpansion slots
1x
PCIe x1
1x
PICMG 1.3 (SHB Express) Full-size
notes Notes
  • 12x USB 2.0 ports (Four ports through backplane).
  • PS/2 mouse&keyboard ports through separate bracket/cable.
  • 1x 10/100 LAN through backplane
Last updated 2025-12-31T12:09:26Z
Board info score is 0/10
chip Chips
-> Chipset part
Intel BD3420 (PCH)
-> Network
Intel 82575EB (PCIe Gigabit Ethernet)
-> Video
XGI XG20 (Volari Z11)
cpufam CPU family support
bios 0 BIOS files available
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
N/A
OS support
Windows 2000 Windows XP/2k3
Arch
Size
12.2MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2011-09-14
File
Logs
Family
Release date
File
Logs
Family
Release date
2011-09-14
File
Logs
Family
Release date
2011-09-14
File
Logs
Socket
Release date
File
Logs
Socket
Release date
2004
File
Logs

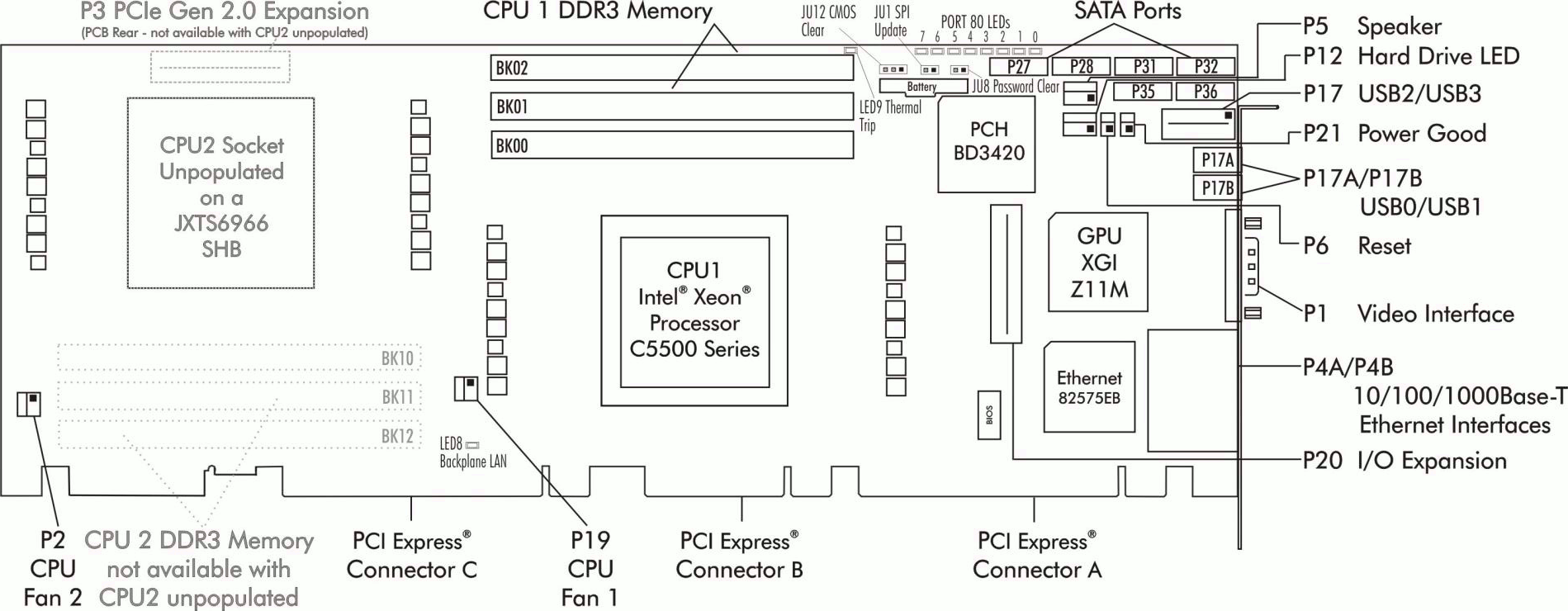

image1 Image 1 of 1 (Chassis Plans)
