Chassis Plans ATXN-5520
Logs
chipChipset
cpuSocket
Socket B (LGA1366)
speedFSB speed
133MHz
moboForm factor
SSI EEB (max 305 × 330 mm)
dimDimensions
12"x13", 305mm x 330mm
chipCache
None/Integrated in the CPU
ramMax RAM size
192GB(RDIMM)48GB(UDIMM)
ramRAM types
DDR3 UDIMMDDR3 RDIMM ECCDDR3 UDIMM ECC
pwrPSU connector
ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS)
maxcpuMulti CPU support
2 CPUs
connI/O ports
4x
RJ-45 LAN
6x
SATA II
2x
Serial
8x
USB 2.0
1x
VGA
cardExpansion slots
1x
32-bit PCI
3x
PCIe x16 @ x8
3x
PCIe x8 @ x4
notes Notes

2x Intel 82574L LAN + 1x Management LAN port

Last updated 2025-12-29T21:08:04Z
Board info score is 7/10
bios 0 BIOS files available
drv No drivers available
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2011-12
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2014-06
File
Logs
Chip
Release date
2009-03
File
Logs
Chip
Release date
2008-10
File
Logs
Chip
Release date
2013-09
File
Logs
Chip
Release date
2008-07
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2011-09-14
File
Logs
Family
Release date
File
Logs
Family
Release date
2011-09-14
File
Logs
Family
Release date
2011-09-14
File
Logs
Socket
Release date
File
Logs
Socket
Release date
2004
File
Logs

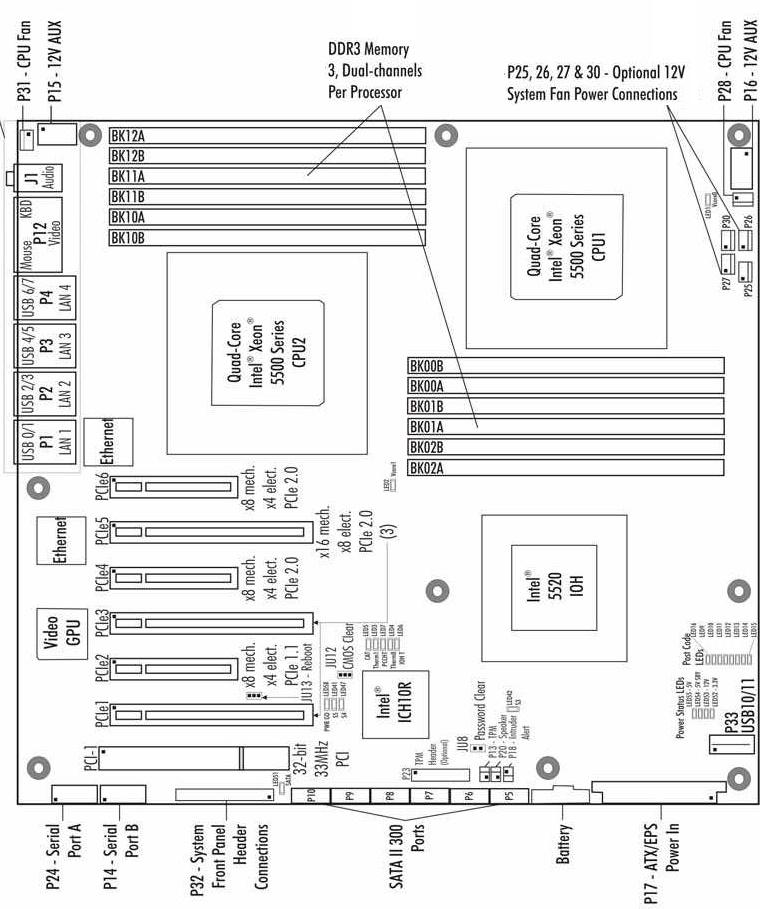

image1 Image 1 of 1
