Chaintech CT-7AIV
Logs
chipChipset
cpuSocket
Socket A (PGA462)
speedFSB speed
200MHz
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
244mm x 220mm
ramMax VRAM size
8MB
chipCache
None/Integrated in the CPU
ramMax RAM size
512MB
ramRAM type
SDR UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX)
tag Also known as

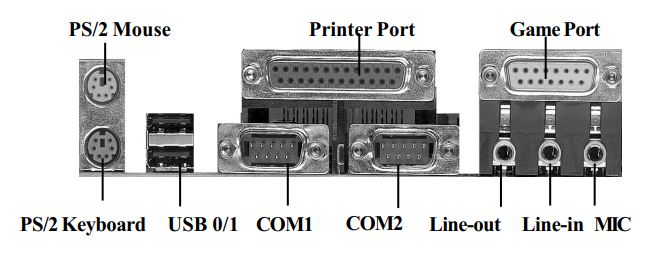

connI/O ports
1x
3.5mm Audio Combo
1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
4x
USB 1.x
1x
VGA
cardExpansion slots
1x
16-bit ISA
3x
32-bit PCI
1x
Universal AGP
Last updated 2025-06-06T20:23:39Z
Board info score is 9.8/10
bios 1 BIOS file available

vendor Award - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
11/07/2000-8365-686A-IV6LNC0CC-00
Note
Core version
6.00PG
BIOS version
Logs
drv 20 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.98
OS support
MS-DOS
Arch
x86
Size
64.9KB
Filename
Name
Version
4.03
OS support
Linux
Arch
x86
Size
210.2KB
Filename
Name
Version
2.23
OS support
Windows NT 4.0
Arch
x86
Size
62.2KB
Filename
Name
Version
4.06.1096
OS support
Windows 9x
Arch
x86
Size
1.8MB
Filename
Name
Version
5.12.01.0639
OS support
Windows 9x
Arch
x86
Size
3.1MB
Filename
Name
Version
2.30
OS support
Windows NT 4.0
Arch
x86
Size
156KB
Filename
Name
Version
5.21.01.643
OS support
Windows 2000 Windows 9x
Arch
x86
Size
3.2MB
Filename
Name
Version
5.12.01.0639
OS support
Windows XP/2k3
Arch
x86
Size
3.1MB
Filename
Name
Version
N/A
OS support
MS-DOS
Arch
x86
Size
227.7KB
Filename
Name
Version
5.70d
OS support
Windows 2000 Windows 9x Windows NT 3.5x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
3.9MB
Filename
Name
Version
V3.00a
OS support
MS-DOS Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
1.9MB
Filename
Name
Version
13.01.03
OS support
Windows 9x
Arch
Size
5.2MB
Filename
Name
Version
10.10.20
OS support
Windows NT 4.0
Arch
Size
3.7MB
Filename
Name
Version
1.08
OS support
Windows 2000 Windows 9x
Arch
x86
Size
553.6KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
MS-DOS OS/2 Warp 4.x Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
Size
4.3MB
Filename
Version
OS support
MS-DOS OS/2 Warp 4.x Windows 2000 Windows 9x Windows NT 3.5x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
4.3MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
Size
1.1MB
Filename
Version
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
Size
973.7KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000
Arch
x86
Size
26.2KB
Filename
Version
OS support
Windows 2000
Arch
x86
Size
3.1MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

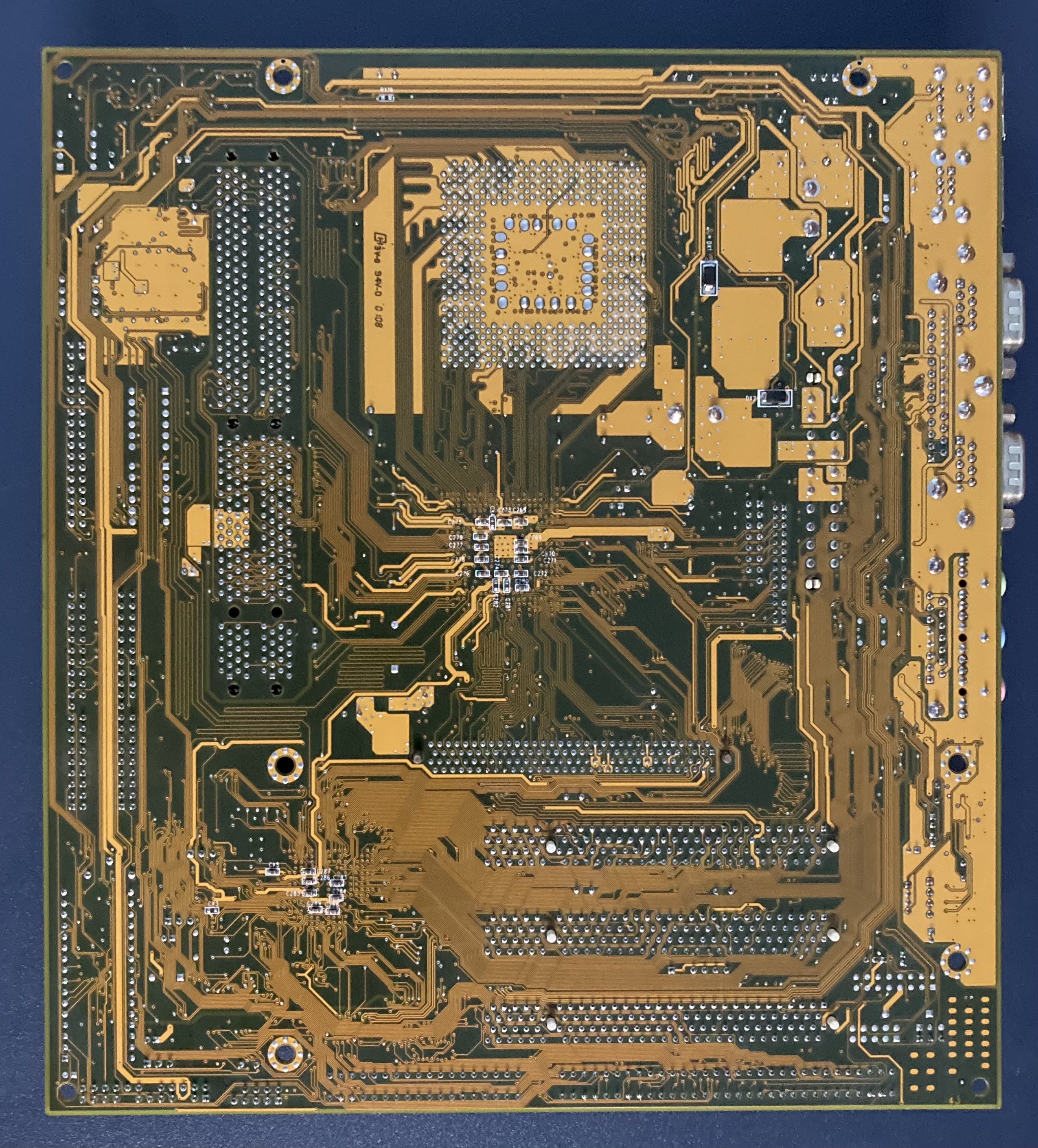

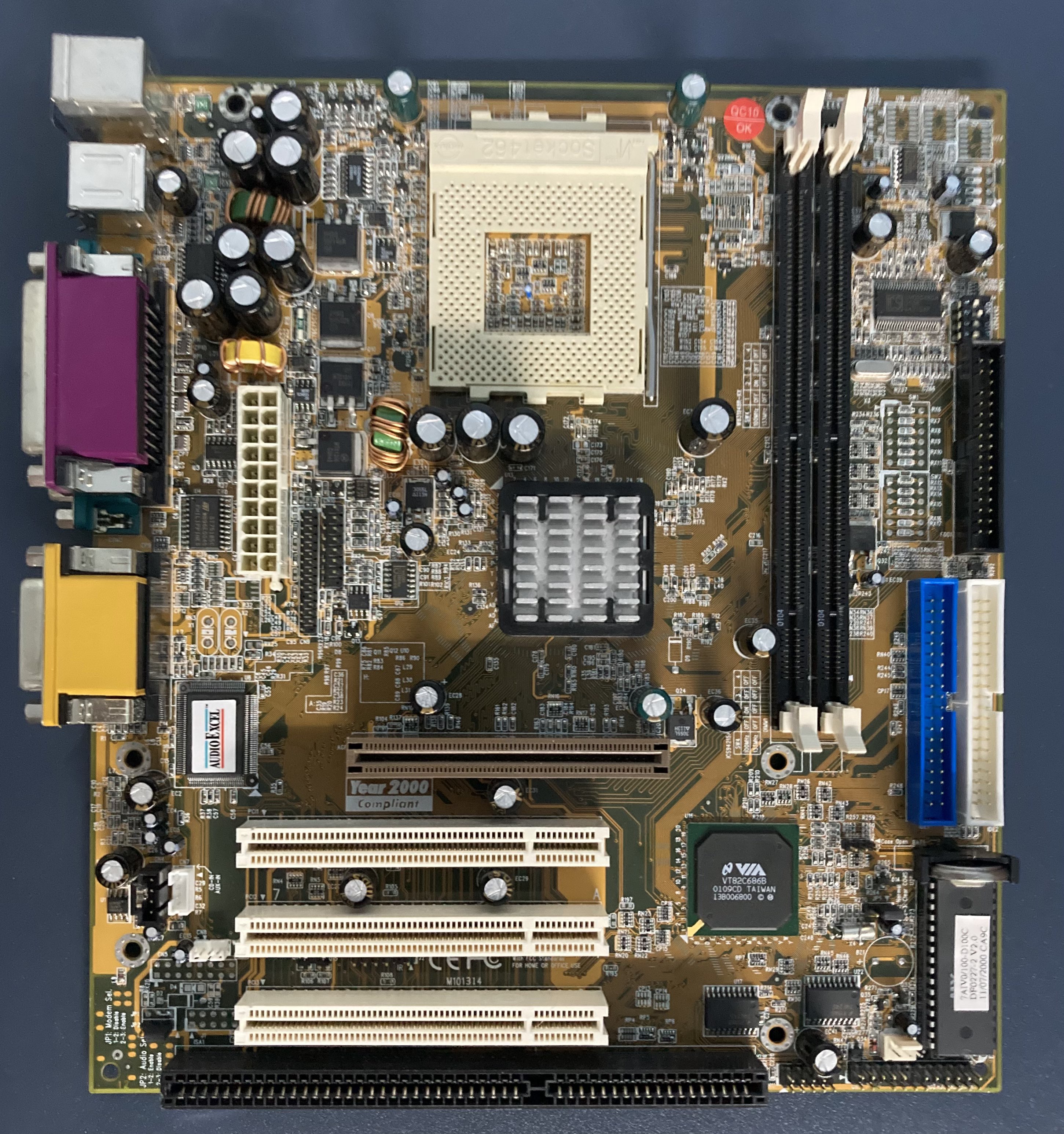

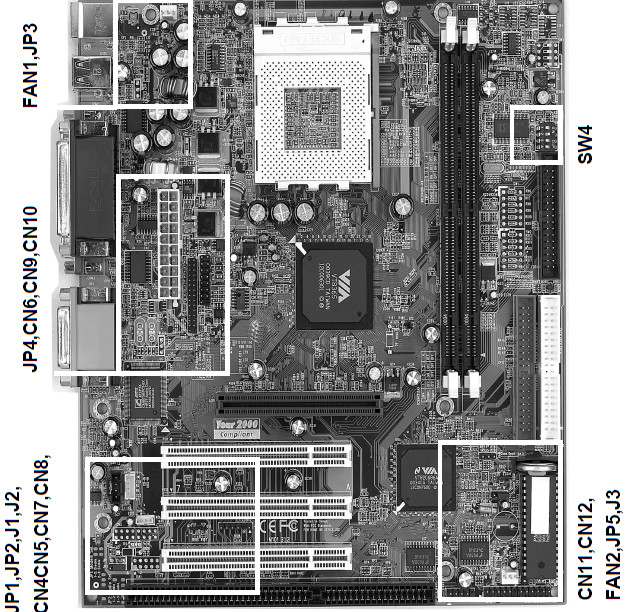

image1 Image 1 of 4 (Chaintech)
image2 Image 2 of 4 (Ximonite)
image3 Image 3 of 4 (Ximonite)
image4 Image 4 of 4 (Chaintech)
