Chaintech 4SPI (P103A)
Chipset
Socket
FSB speed Empty
Form factorBaby AT (max 220 x 330 mm)
DimensionsEmpty
Cache
128KB256KB512KB1MB
Max RAM size
Empty
RAM type 72-pin FPM
PSU connector
Empty
I/O ports1x
AT Keyboard
2x
IDE interface
Expansion slots5x
16-bit ISA
3x
32-bit PCI
Known issues
- Leaky Ni-Cd clock battery
The Ni-Cd battery may be leaking, risking damage to PCB layers & nearby components. Promptly remove the battery & clean corrosion/alkaline salts from the board. Use white vinegar to dissolve salts, but exercise caution as vinegar can corrode exposed metals. A thorough examination & repair may be needed. Replace battery with guide: https://github.com/wiretap-retro/Not-A-Varta
Last updated 2023-01-28T13:12:37Z
Board info score is 7.7/10
Chips
-> Chipset part
CPU family support
2 BIOS files available
Award - 2 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
11/20/95-SiS-496-497/A/B-2A4IBC3IC-00
Note
Core version
4.50G
BIOS version
Logs
POST string
02/16/95-SiS-496-497/A/B-2A4IBC31-B2
Note
Core version
4.50G
BIOS version
Logs
2 drivers available
Version
OS support
Arch
Size
Filename
Version
OS support
MS-DOS
OS/2 Warp 3.x
Windows 3.1x
Windows NT 3.1
Windows NT 3.5x
Windows NT 4.0
Arch
x86
Size
Empty
Filename
Version
OS support
MS-DOS
NetWare Server 3
OS/2 1.x
Windows 3.0
Windows NT 3.1
Arch
x86
Size
97.9KB
Filename
1 board document available
Release date
File
Logs
Family
Release date
File
Logs

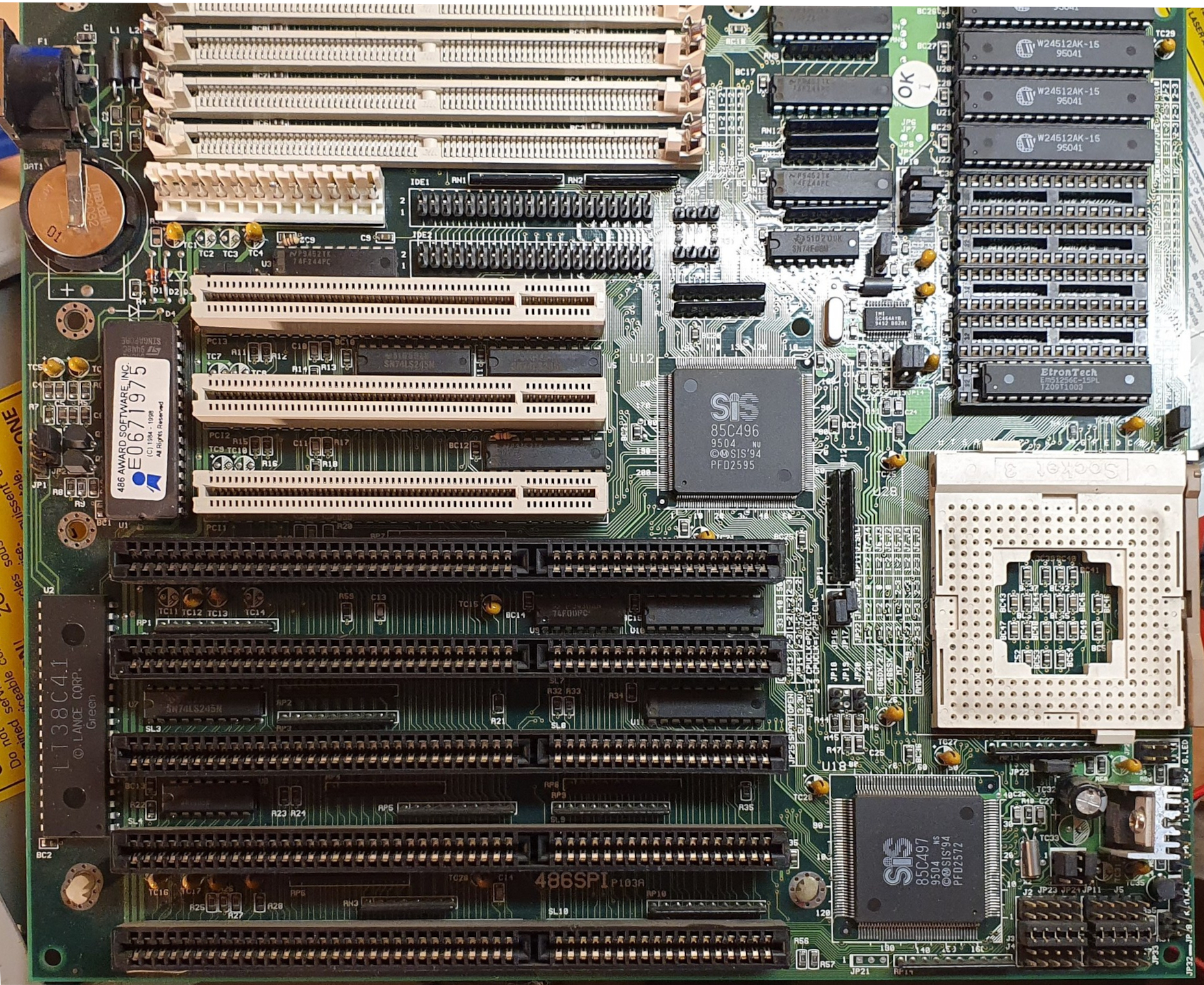

Image 1 of 2 (evasive)
Image 2 of 2 (AskNotes)
Disclaimer
The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
