Boser HS-2603
Logs
Chipset
Socket
FSB speed 33MHz
Form factorECX/Biscuit SBC 3.5" (max 146 x 105 mm)
Dimensions145 mm x 102 mm
Max VRAM size4MB
Cache
None/Integrated in the CPU
Max RAM size
128MB
RAM type 144-pin SDR SO-DIMM
PSU connector
I/O ports1x
CF Card Slot
1x
Disk-on-Chip Socket
1x
Floppy interface
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
4x
Serial
1x
TV-Out
2x
USB 1.x
1x
VGA
Expansion slots1x
PC/104
Last updated 2025-08-17T12:39:46Z
Board info score is 9.2/10
Chips
-> Chipset part
-> Audio
-> Video
CPU family support
No drivers available
1 board document available
Release date
File
Logs

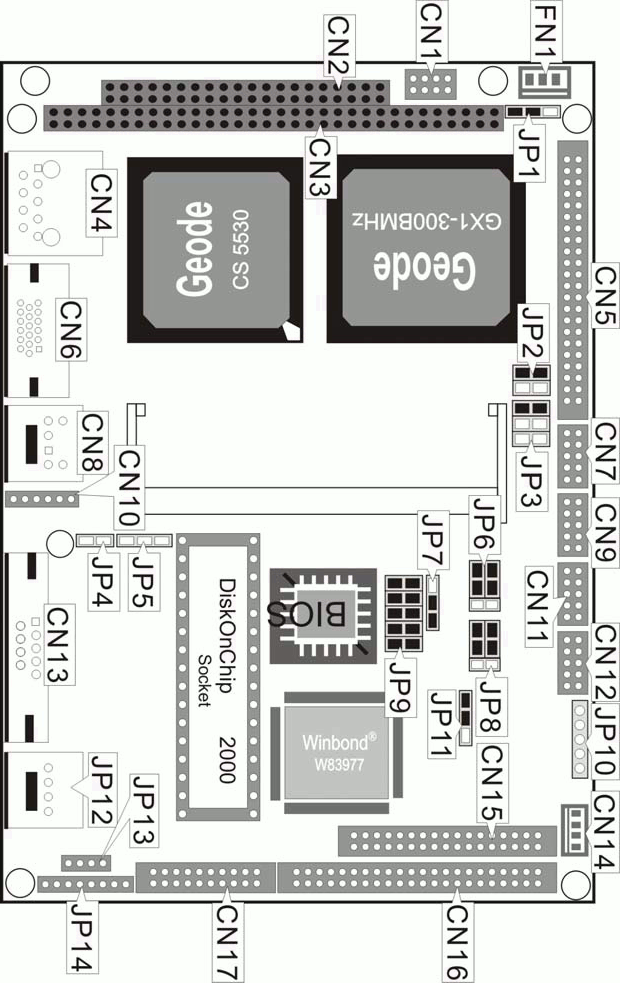

Image 1 of 2 (Boser)

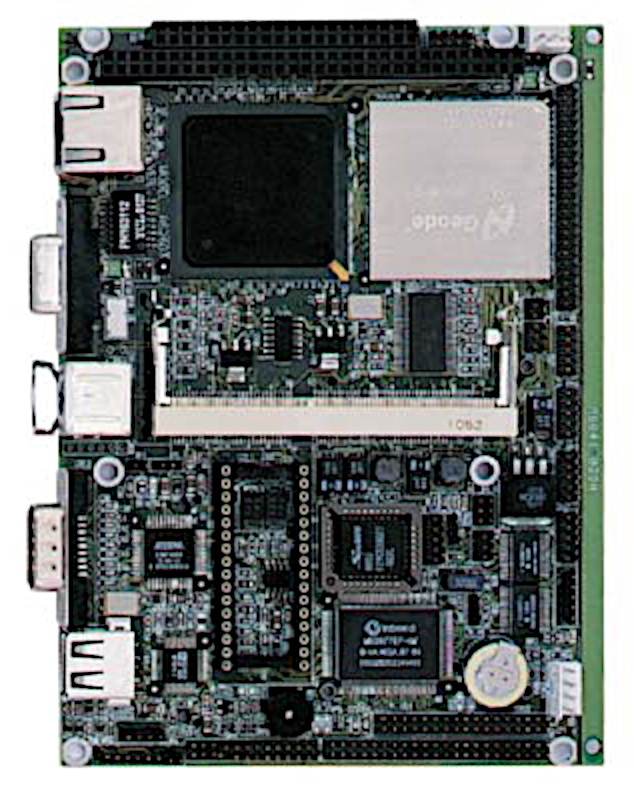

Image 2 of 2 (Boser)
