Boser HS-2601M
Chipset
Socket
FSB speeds 66MHz100MHz
Form factorECX/Biscuit SBC 3.5" (max 146 x 105 mm)
Dimensions146 mm x 103 mm
Max VRAM size2MB
Cache
None/Integrated in the CPU
Max RAM size
256MB
RAM type 144-pin SDR SO-DIMM
PSU connector
Empty
I/O ports1x
Disk-on-Chip Socket
1x
Floppy interface
2x
IDE interface
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
2x
Serial
2x
USB 1.x
1x
VGA
Expansion slots1x
PC/104
Last updated 2025-08-17T12:40:57Z
Board info score is 8.2/10
Chips
-> Chipset part
-> Video
CPU family support
Empty
1 BIOS file available
Award - 1 entry
POST string
Note
Core Ver.
BIOS Ver.
Logs
14 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.3.2
OS support
MS-DOS
Windows 3.1x
Arch
x86
Size
1019.2KB
Filename
Name
Version
2.2.7
OS support
OS/2 Warp 3.x
OS/2 Warp 4.x
Arch
x86
Size
1.1MB
Filename
Name
Version
3.06
OS support
Windows 9x
Arch
x86
Size
148.7KB
Filename
Name
Version
4.05
OS support
Windows 9x
Arch
x86
Size
251.3KB
Filename
Name
Version
N/A
OS support
Windows 9x
Arch
x86
Size
1.7MB
Filename
Name
Version
1.29
OS support
Windows NT 4.0
Arch
x86
Size
158.5KB
Filename
Name
Version
1.14
OS support
Windows NT 3.5x
Arch
x86
Size
41.4KB
Filename
Name
Version
1.29
OS support
Windows NT 4.0
Arch
x86
Size
304KB
Filename
Name
Version
3.20.1008
OS support
Windows 2000
Windows 9x
Windows XP/2k3
Arch
Size
Empty
Filename
Name
Version
3.7B / 3.7D
OS support
MS-DOS
NetWare Server 3
NetWare Server 4
OS/2 Warp 3.x
Windows 3.1x
Windows 9x
Windows NT 3.5x
Arch
x86
Size
1.6MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000
Windows 9x
Windows XP/2k3
Arch
x86
Size
2.2MB
Filename
Version
OS support
Arch
Size
Filename
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

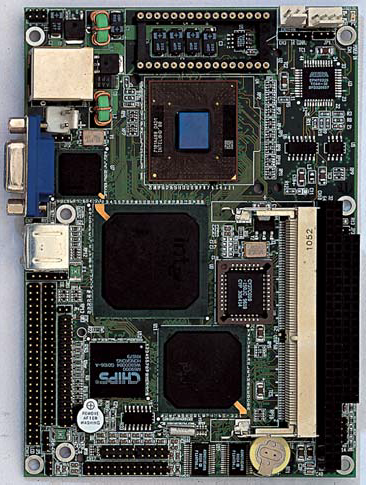

Image 1 of 1 (Boser)
Disclaimer
The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
