Bona/Lex CV860A
Logs
chipChipset
cpuSocket
EBGA376
speedFSB speeds
100MHz133MHz
moboForm factor
OEM / Proprietary
dimDimensions
200mm x 150mm
ramMax VRAM size
8MB
chipCache
None/Integrated in the CPU
ramMax RAM size
512MB
ramRAM type
SDR UDIMM
pwrPSU connector
DC Jack (12V)
tag Also known as

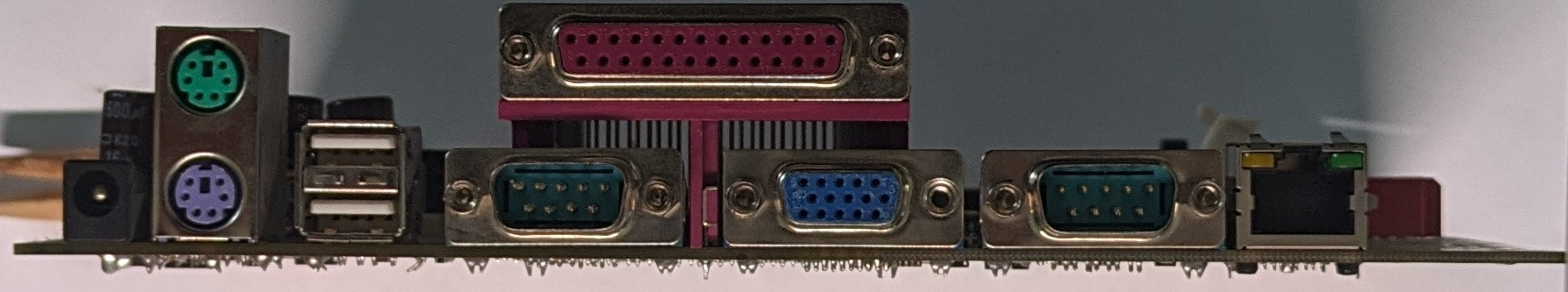

connI/O ports
1x
CF Card Slot
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
3x
RJ-45 LAN
2x
Serial
2x
USB 1.x
1x
VGA
cardExpansion slots
Empty
notes Notes

Full part number denotes populated options:

CV860A-XYZZ where X is # of ethernet ports, Y is the NIC vendor (R for Realtek, T for Intel, U for Gbit + Intel 10/100), ZZ is CPU speed (40 for 400MHz, 53 for 533MHz, 80 for 800MHz, 10 for 1GHz, 14 for 1.4GHz)

Last updated 2024-05-28T19:45:49Z
Board info score is 9.3/10
bios 5 BIOS files available

vendor Award - 5 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
02/24/2003-601-686A-6A6LIC2AC-00
Note
Intel PXE
Core version
6.00PG
BIOS version
Logs
POST string
02/24/2003-601-686A-6A6LIC2AC-00
Note
No PXE
Core version
6.00PG
BIOS version
Logs
POST string
08/15/2002-601-686A-6A6LIC2AC-00
Note
No PXE
Core version
6.00PG
BIOS version
Logs
POST string
02/24/2003-601-686A-6A6LIC2AC-00
Note
Realtek PXE
Core version
6.00PG
BIOS version
Logs
POST string
08/15/2002-601-686A-6A6LIC2AC-00
Note
Realtek PXE
Core version
6.00PG
BIOS version
Logs
drv 15 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
V5.00
OS support
MS-DOS Mac OS X NetWare Server 3 NetWare Server 4 Netware Client32 SCO Unix - OpenServer Windows 2000 Windows 3.1x Windows 9x Windows NT 3.5x Windows NT 4.0
Arch
x86 , PPC
Size
3.3MB
Filename
Name
Version
1.0
OS support
MS-DOS Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
Size
490.9KB
Filename
Name
Version
4.43V
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
Size
1.1MB
Filename
Name
Version
N/A
OS support
MS-DOS
Arch
x86
Size
227.7KB
Filename
Name
Version
5.70d
OS support
Windows 2000 Windows 9x Windows NT 3.5x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
3.9MB
Filename
Name
Version
V3.00a
OS support
MS-DOS Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
1.9MB
Filename
Name
Version
13.01.03
OS support
Windows 9x
Arch
Size
5.2MB
Filename
Name
Version
10.10.20
OS support
Windows NT 4.0
Arch
Size
3.7MB
Filename
Name
Version
4.03.00.3120
OS support
Windows NT 4.0
Arch
Size
8.2MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
MS-DOS OS/2 Warp 4.x Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
Size
4.3MB
Filename
Version
OS support
MS-DOS OS/2 Warp 4.x Windows 2000 Windows 9x Windows NT 3.5x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
4.3MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 9x
Arch
Size
4.9MB
Filename
Version
OS support
Windows 9x
Arch
Size
3.3MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
17.9MB
Filename
Version
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
14.5MB
Filename
doc 2 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2001-11-09
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2012-02-20
File
Logs
Family
Release date
2012-02-20
File
Logs
Family
Release date
2012-02-20
File
Logs

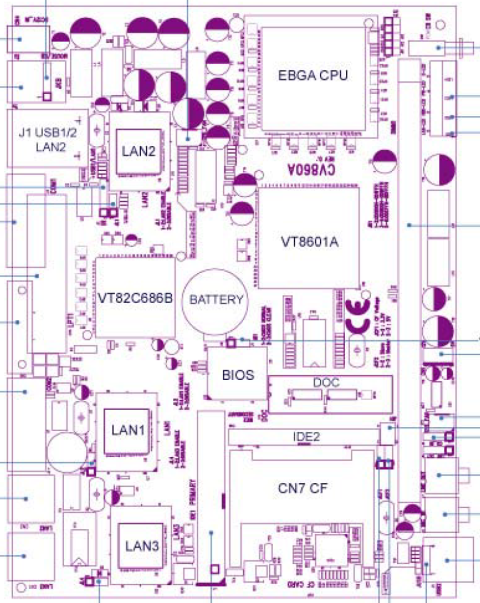

image1 Image 1 of 7
image2 Image 2 of 7 (kazeobi)
image3 Image 3 of 7 (kazeobi)

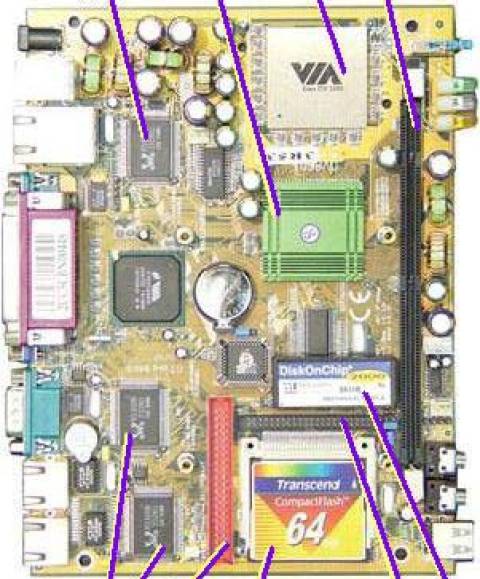

image4 Image 4 of 7

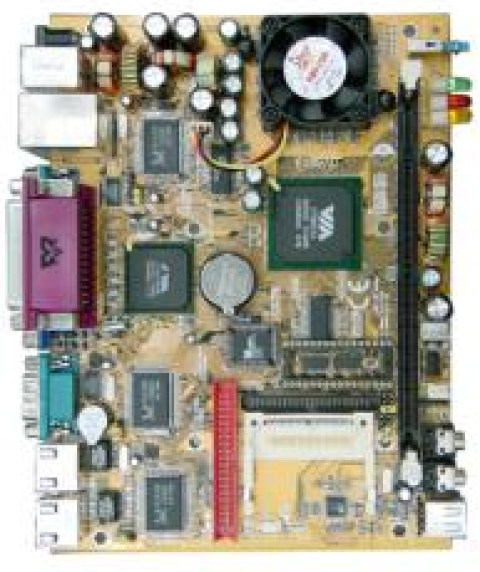

image5 Image 5 of 7
image6 Image 6 of 7 (kazeobi)
image7 Image 7 of 7 (kazeobi)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
