BKHD BKHD-C612NP-6LAN
Logs
chipChipset
cpuSocket
Socket R3 (LGA2011-3)
speedFSB speed
Empty
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
213mm x 185mm
chipCache
None/Integrated in the CPU
ramMax RAM size
32GB
ramRAM types
DDR4 UDIMMDDR4 UDIMM ECC
pwrPSU connector
ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS)
connI/O ports
1x
3.5mm Audio Combo
6x
RJ-45 LAN
10x
SATA III
5x
Serial
8x
USB 2.0
4x
USB 3.0
1x
VGA
cardExpansion slots
2x
M.2 (M key)
1x
PCIe x16
notes Notes

Internal 2×20 PIN Serial Header (can expand 4 external COM ports)

Last updated 2025-09-01T12:17:47Z
Board info score is 6.5/10
bios 0 BIOS files available
drv No drivers available
doc No board documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

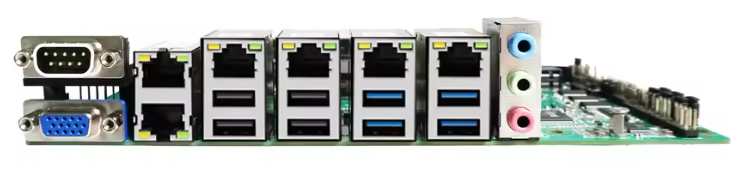

image1 Image 1 of 3 (BKHD)

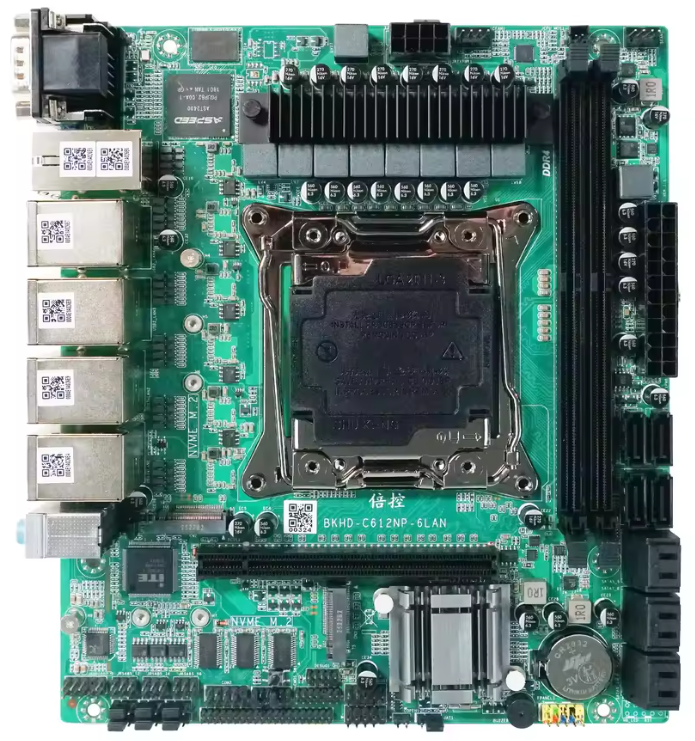

image2 Image 2 of 3 (BKHD)

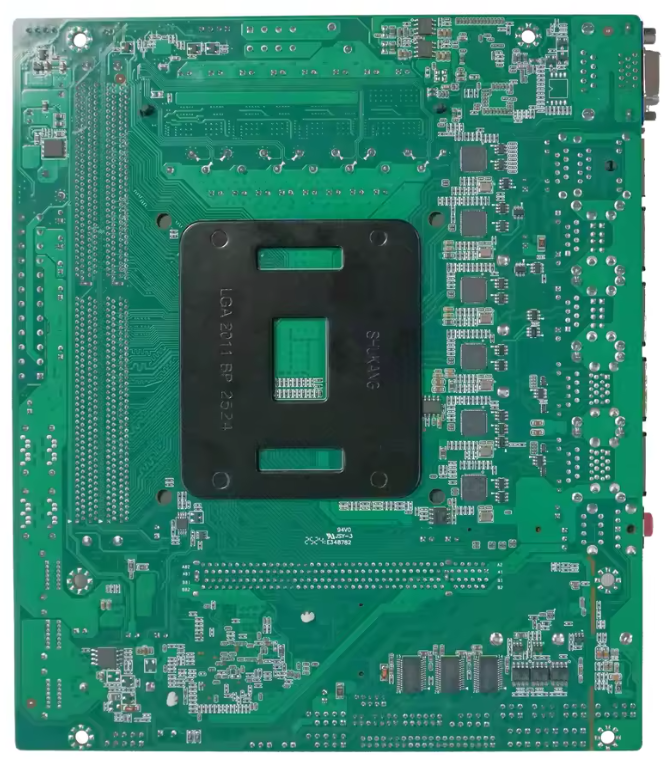

image3 Image 3 of 3 (BKHD)
