Biostar TA970XE Ver. 5.x
Logs
chipChipset
cpuSockets
Socket AM3 (mPGA941) Socket AM3+ (mPGA942)
speedFSB speed
Empty
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 225mm
chipCache
None/Integrated in the CPU
ramMax RAM size
32GB
ramRAM type
DDR3 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)
connI/O ports
1x
3.5mm Audio Combo
2x
FireWire 400
1x
IrDA
1x
PS/2 keyboard
1x
Parallel
1x
RJ-45 LAN
1x
S/PDIF
5x
SATA III
1x
Serial
1x
Toslink
8x
USB 2.0
2x
USB 3.0
1x
eSATA II
cardExpansion slots
2x
32-bit PCI
2x
PCIe x1
1x
PCIe x16
1x
PCIe x16 @ x4
Last updated 2023-11-09T21:44:41Z
Board info score is 9.4/10
bios 2 BIOS files available

vendor AMI - 2 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
63-0100-000001-00101111-102010-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-102010-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
drv 2 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.16.32.1
OS support
Windows 10 Windows 7 Windows 8.x Windows Vista
Arch
x86 , x86-64 , IA-64
Size
8.9MB
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename
doc 4 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2011-03-31
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2008-11-14
File
Logs
doc 2 other files available
Title
File
Logs
Title
Bios Update Tool
File
Logs
Title
CPU Support
File
Logs

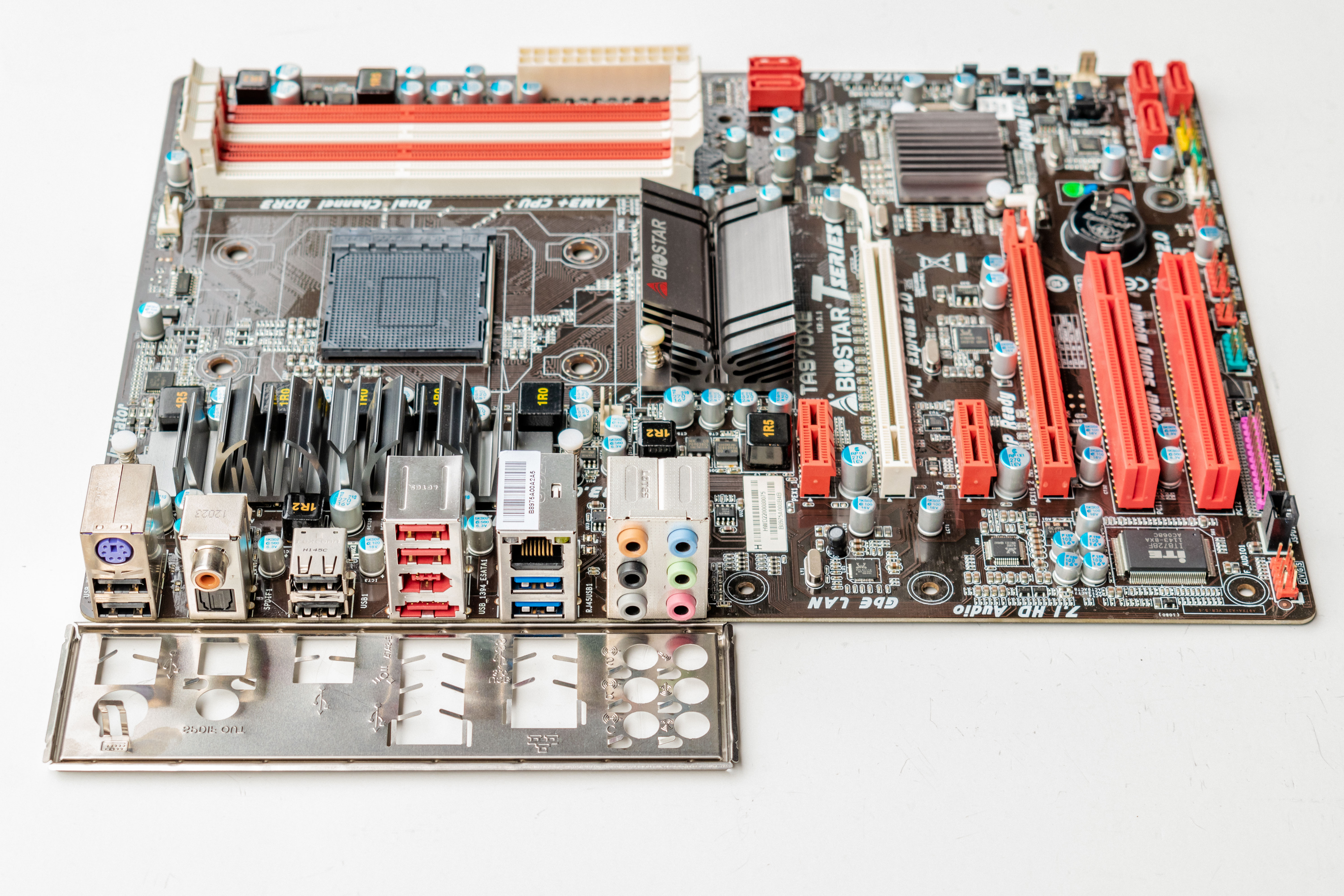

image1 Image 1 of 4 (Biostar)

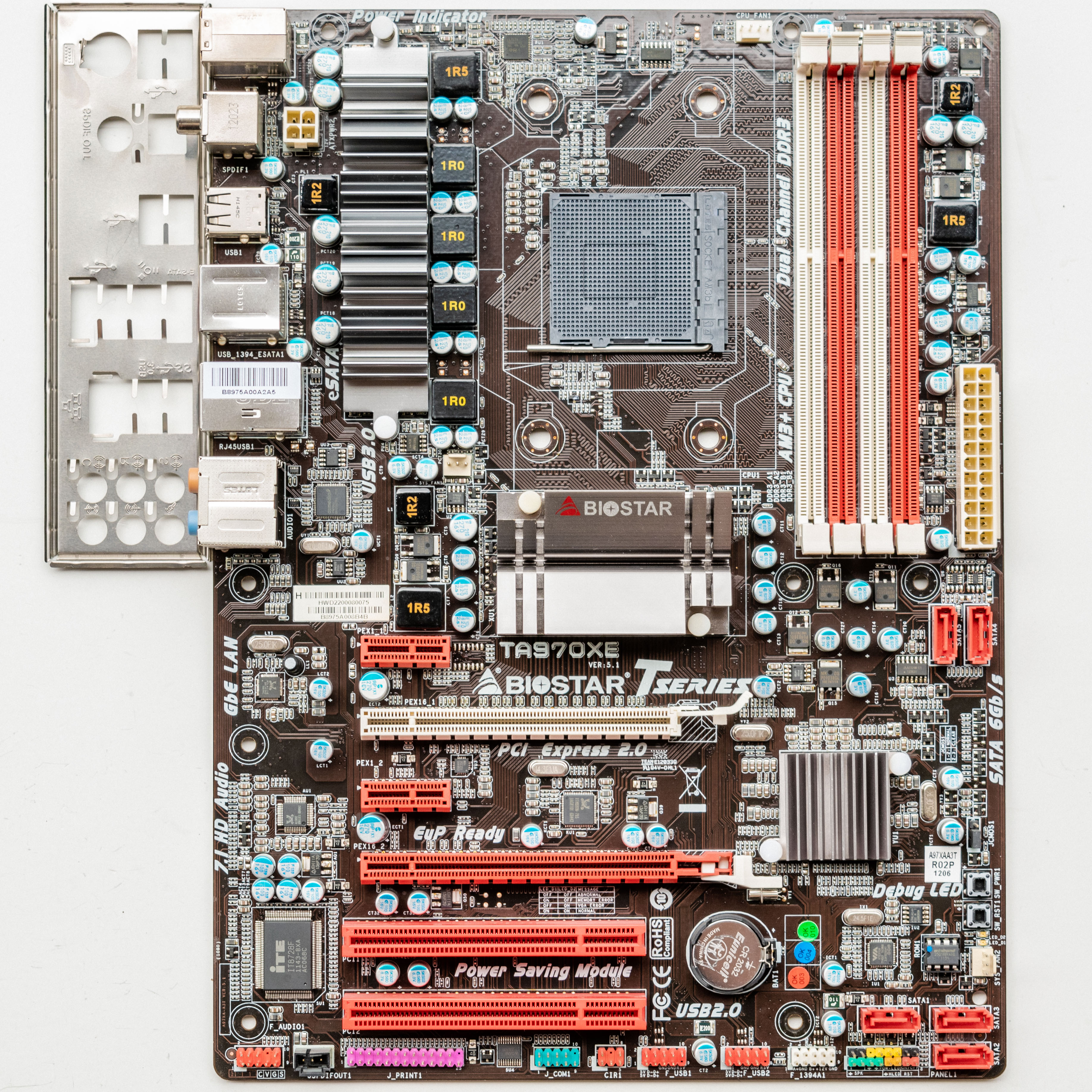

image2 Image 2 of 4 (Motherboard Continuum)

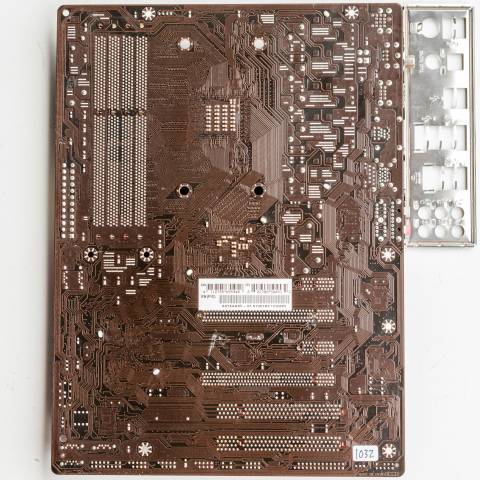

image3 Image 3 of 4 (Motherboard Continuum)

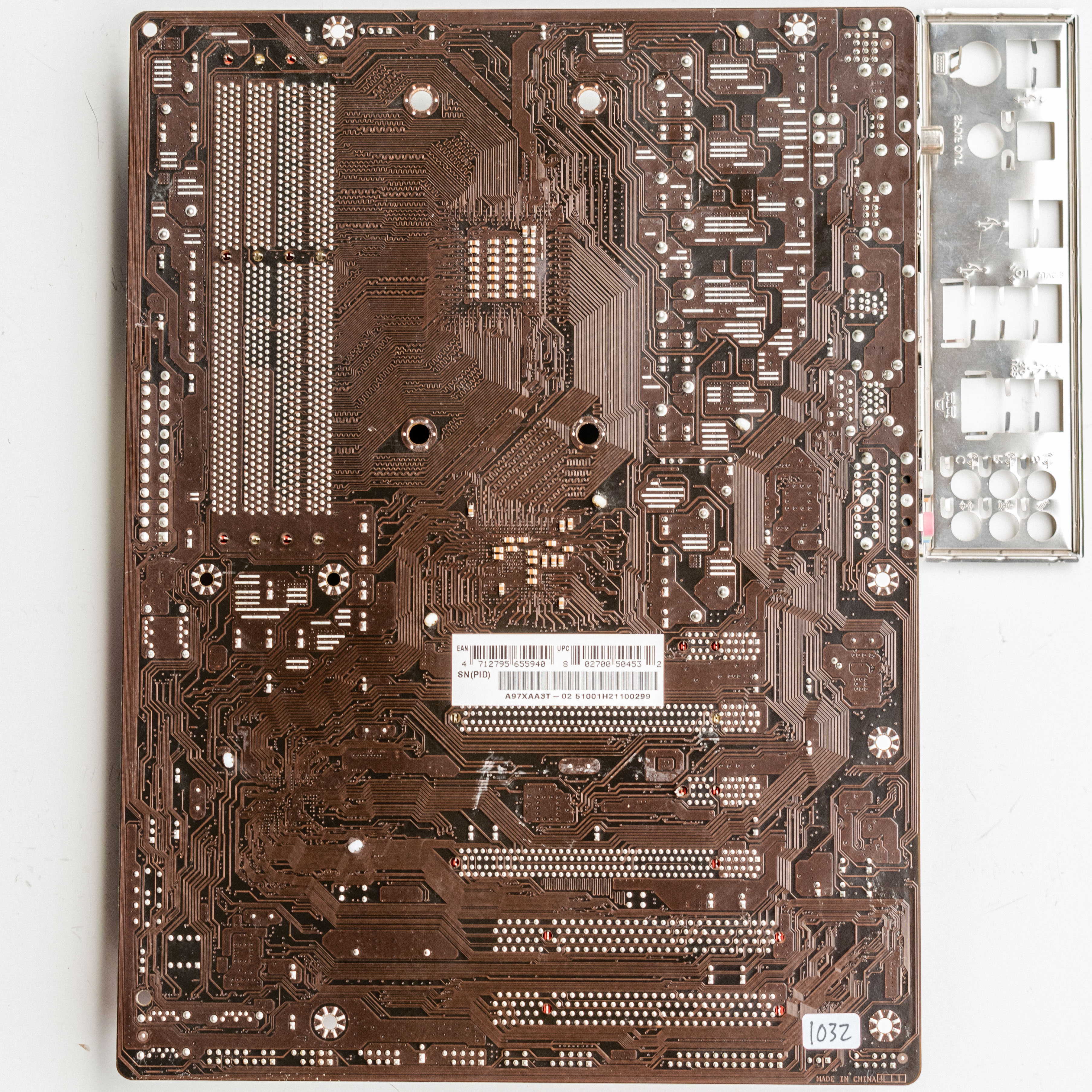

image4 Image 4 of 4 (Motherboard Continuum)
