Biostar TA790GXBE
Logs
chipChipset
cpuSockets
Socket AM2 (mPGA940) Socket AM2+ (mPGA940) Socket AM3 (mPGA941)
speedFSB speed
Empty
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 205mm
ramMax VRAM size
512MB
chipCache
None/Integrated in the CPU
ramMax RAM size
16GB
ramRAM type
DDR2 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)

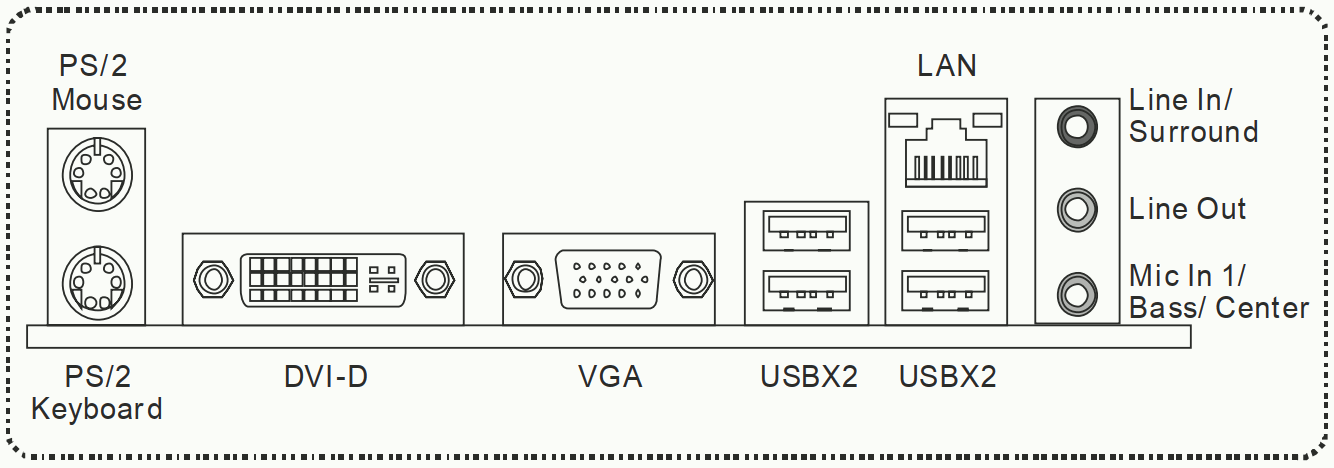

connI/O ports
1x
3.5mm Audio Combo
1x
DVI
1x
Floppy interface
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
6x
SATA II
1x
Serial
8x
USB 2.0
1x
VGA
cardExpansion slots
2x
32-bit PCI
2x
PCIe x1
2x
PCIe x16
notes Notes

TA790GXE 128M has 128MB DDR2 of side port memory

Last updated 2025-06-02T15:23:43Z
Board info score is 9.2/10
bios 2 BIOS files available

vendor AMI - 2 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
64-0100-000001-00101111-090209-ATHLON64-78DGA008
Note
Core version
080014
BIOS version
Logs
POST string
64-0100-000001-00101111-050710-ATHLON64-78DGA008
Note
Core version
080014
BIOS version
Logs
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename

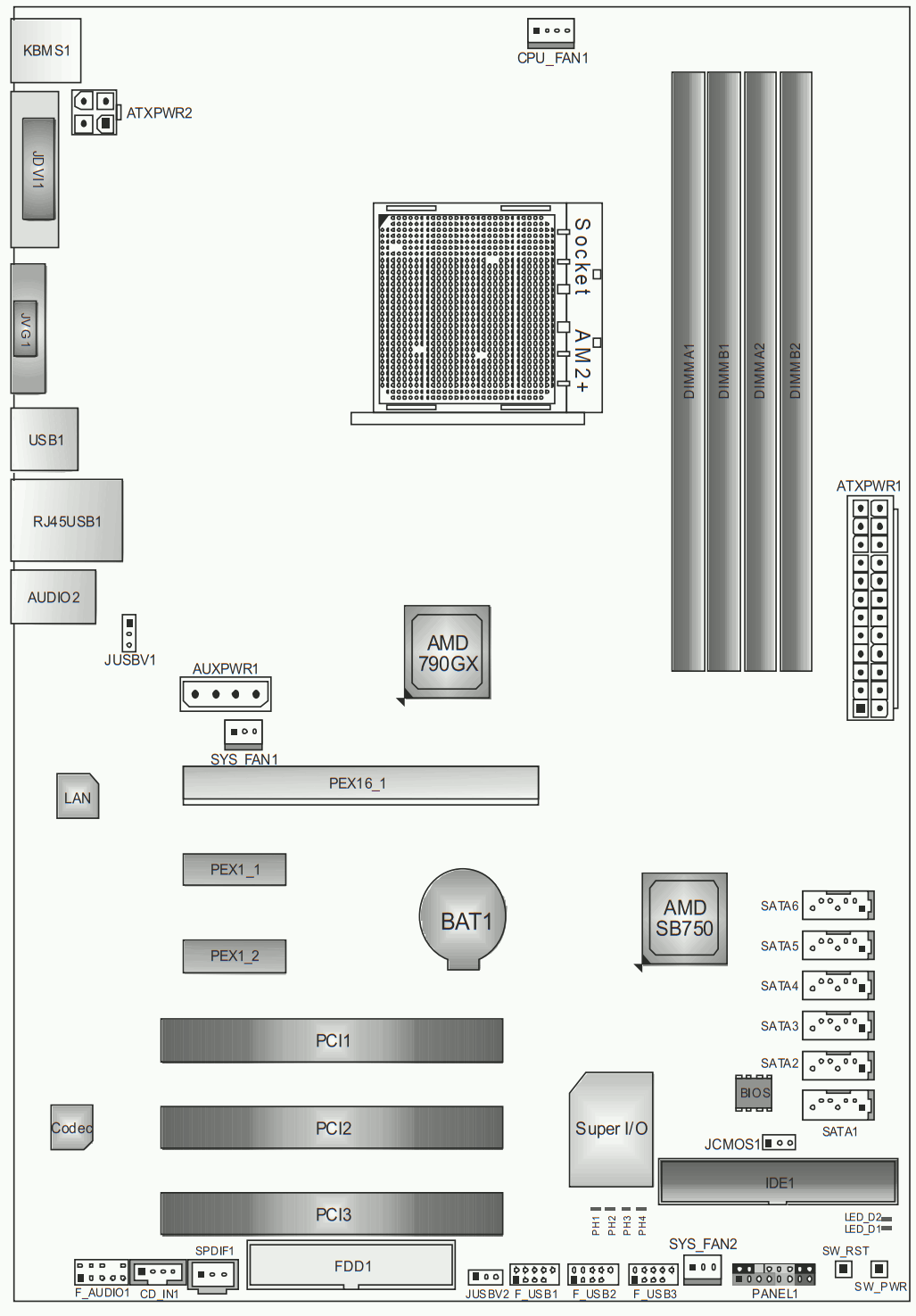

image1 Image 1 of 3 (Biostar)
image2 Image 2 of 3 (Biostar)
image3 Image 3 of 3 (Biostar)
