Biostar M6VCG (0 ISA)
Logs
chipChipset
cpuSocket
Socket 370 (PGA370)
speedFSB speeds
66MHz100MHz133MHz
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
306 mm x 213 mm
chipCache
None/Integrated in the CPU
ramMax RAM size
1.5GB
ramRAM type
SDR UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX)
tag Also known as
connI/O ports
1x
3.5mm Audio Combo
1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
4x
USB 1.x
cardExpansion slots
5x
32-bit PCI
1x
AMR
1x
Universal AGP
notes Notes

Optional ISA slots, see other entries. Underperforming Apollo Pro 133A motherboard, Quantex and Fujitsu Siemens Computer (FSC) used this board with different BIOS, but retaining the same board Brand and model

Last updated 2025-06-19T16:12:34Z
Board info score is 9.5/10
bios 8 BIOS files available

vendor Award - 20 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
12/05/2000-694X-686A-6A6LJB09C-00
Note
FSC OEM BIOS
Core version
6.00PG
BIOS version
Logs
POST string
10/23/2000-694X-686A-6A6LJB09C-00
Note
Quantex OEM BIOS
Core version
6.00PG
BIOS version
VCG1023D
Logs
POST string
09/21/2000-694X-686A-6A6LJB09C-00
Note
FSC OEM BIOS
Core version
6.00PG
BIOS version
Logs
POST string
09/19/2000-694X-686A-6A6LJB09C-00
Note
FSC OEM BIOS
Core version
6.00PG
BIOS version
VCG0919 FSC
Logs
POST string
07/11/2001-694X-686B-6A6LJB09C-00
Note
custom unlocked BIOS
Core version
6.00PG
BIOS version
Logs
POST string
07/11/2001-694X-686B-6A6LJB09C-00
Note
Latest BIOS (w/o Boot slpash)
Core version
6.00PG
BIOS version
Logs
POST string
07/11/2001-694X-686B-6A6LJB09C-00
Note
Latest BIOS (With BIOS logo)
Core version
6.00PG
BIOS version
Logs
POST string
05/17/2000-694X-686A-6A6LJB09C-00
Note
Quantex OEM BIOS
Core version
6.00PG
BIOS version
VCG0517D
Logs
POST string
03/15/2000-694X-686A-6A6LJB09C-00
Note
With BIOS logo
Core version
6.00PG
BIOS version
VCG0314B
Logs
POST string
03/13/2001-694X-686B-6A6LJB09C-00
Note
No BIOS logo
Core version
6.00PG
BIOS version
Logs
POST string
03/13/2001-694X-686B-6A6LJB09C-00
Note
With BIOS logo
Core version
6.00PG
BIOS version
Logs
POST string
01/10/2001-694X-686A-6A6LJB09C-00
Note
FSC OEM BIOS
Core version
6.00PG
BIOS version
Logs
POST string
10/23/2000-694X-686A-6A6LJB09C-00
Note
No BIOS logo, 4x USB
Core version
6.00PG
BIOS version
CG1023F2
Logs
POST string
10/23/2000-694X-686A-6A6LJB09C-00
Note
No BIOS logo, 2x USB
Core version
6.00PG
BIOS version
CG1023F1
Logs
POST string
10/23/2000-694X-686A-6A6LJB09C-00
Note
With BIOS logo, 4x USB
Core version
6.00PG
BIOS version
CG1023B2
Logs
POST string
10/23/2000-694X-686A-6A6LJB09C-00
Note
With BIOS logo, 2x USB
Core version
6.00PG
BIOS version
CG1023B1
Logs
POST string
07/31/2000-694X-686A-6A6LJB09C-00
Note
No BIOS logo, 4x USB
Core version
6.00PG
BIOS version
CG0731F2
Logs
POST string
07/31/2000-694X-686A-6A6LJB09C-00
Note
With BIOS logo, 2x USB
Core version
6.00PG
BIOS version
CG0731B1
Logs
POST string
07/08/2000-694X-686A-6A6LJB09C-00
Note
No BIOS logo, 4x USB
Core version
6.00PG
BIOS version
CG0707F2
Logs
POST string
07/08/2000-694X-686A-6A6LJB09C-00
Note
No BIOS logo, 2x USB
Core version
6.00PG
BIOS version
CG0707F1
Logs
drv 8 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
N/A
OS support
MS-DOS
Arch
x86
Size
227.7KB
Filename
Name
Version
5.70d
OS support
Windows 2000 Windows 9x Windows NT 3.5x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
3.9MB
Filename
Name
Version
V3.00a
OS support
MS-DOS Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
1.9MB
Filename
Name
Version
1.08
OS support
Windows 2000 Windows 9x
Arch
x86
Size
553.6KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
MS-DOS OS/2 Warp 4.x Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
Size
4.3MB
Filename
Version
OS support
MS-DOS OS/2 Warp 4.x Windows 2000 Windows 9x Windows NT 3.5x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
4.3MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
Size
1.1MB
Filename
Version
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
Size
973.7KB
Filename
doc 2 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1999-11-02
File
Logs
Chip
Release date
2000-02-25
File
Logs
Chip
Release date
1999-09-08
File
Logs
Family
Release date
File
Logs
Family
Release date
2000-02
File
Logs
Family
Release date
2001-06
File
Logs
Socket
Release date
File
Logs
Socket
Release date
1997-05
File
Logs
Socket
Release date
File
Logs
Socket
Release date
1999-04
File
Logs
Socket
Release date
1999-12
File
Logs
Socket
Release date
2000-07
File
Logs

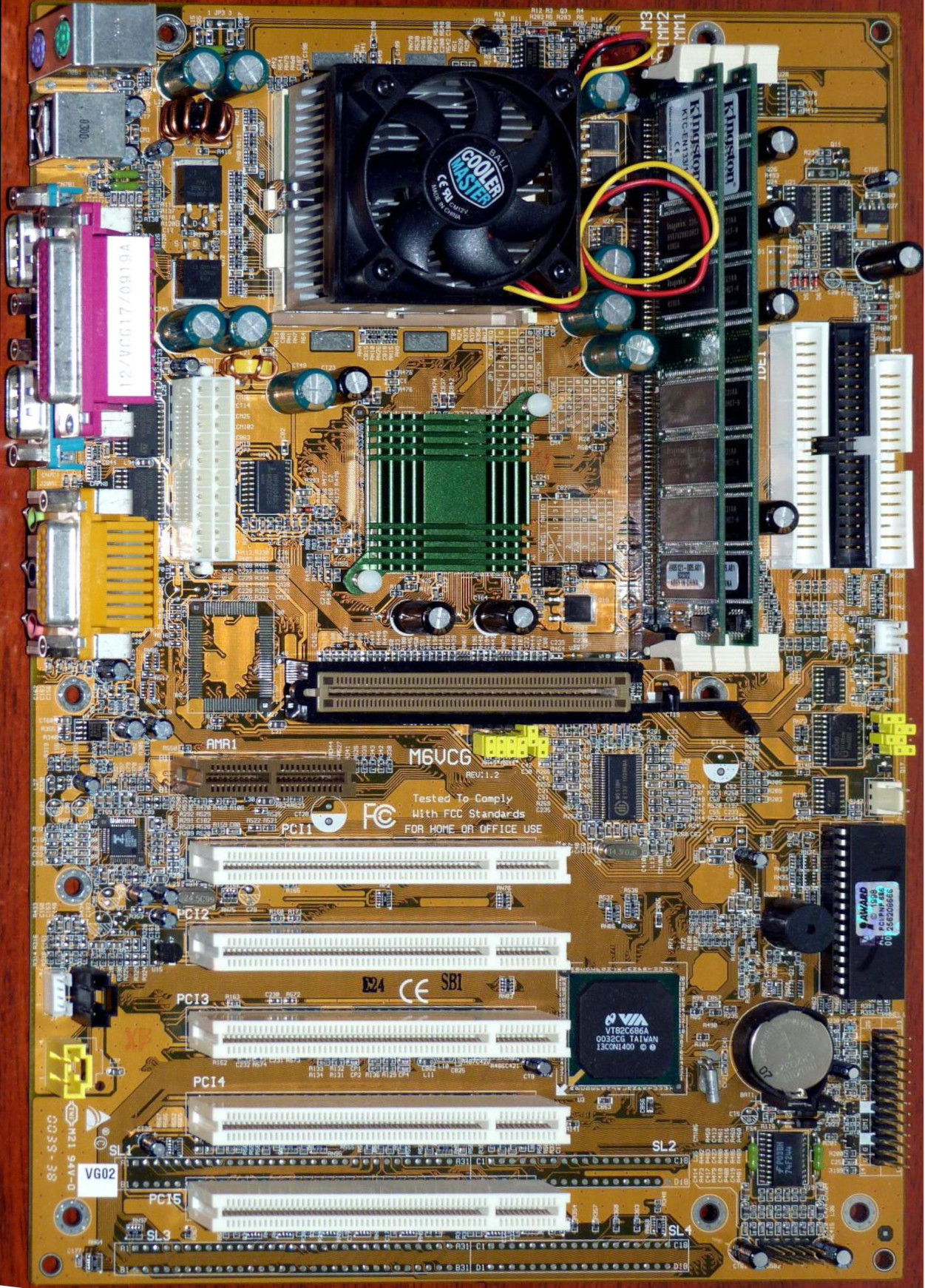

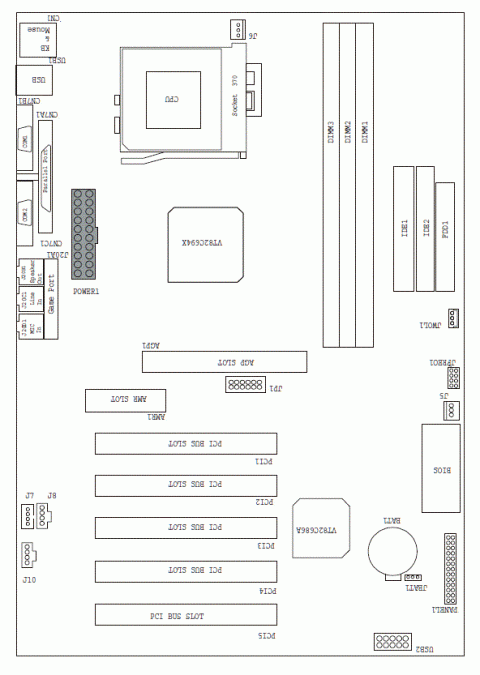

image1 Image 1 of 6 (Microhouse)
image2 Image 2 of 6 (Computer Retro)

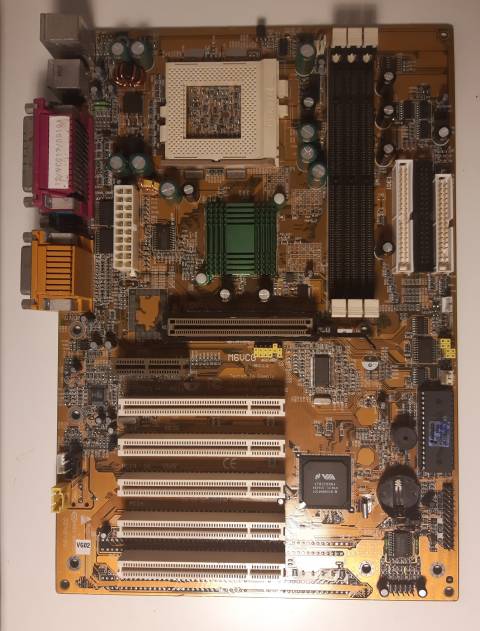

image3 Image 3 of 6

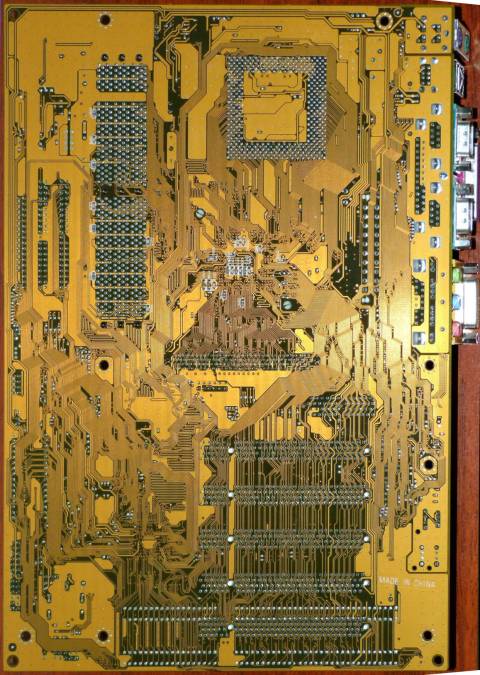

image4 Image 4 of 6 (Computer Retro)
image5 Image 5 of 6

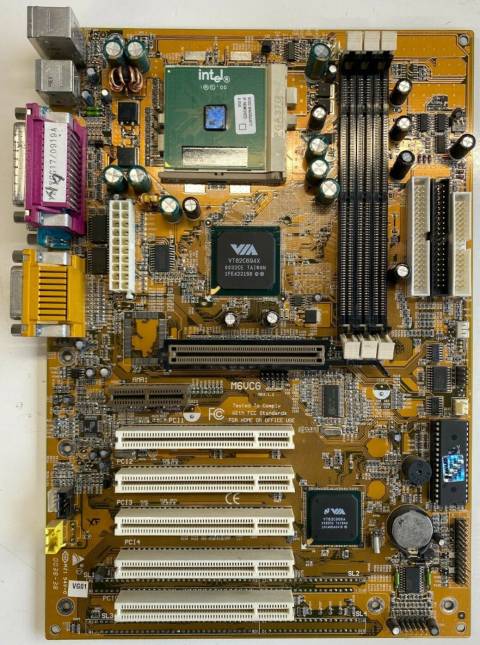

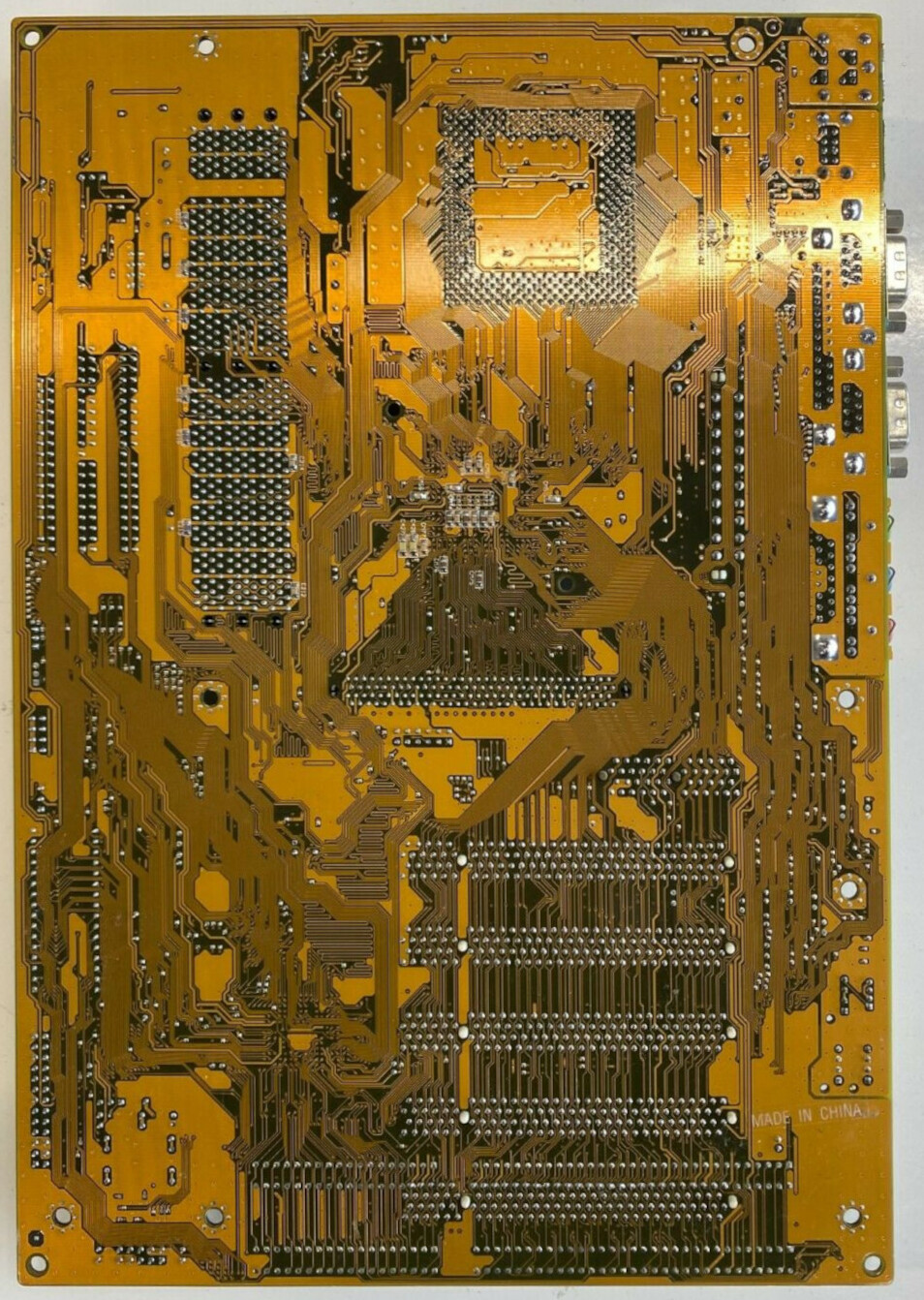

image6 Image 6 of 6

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
