Biostar M5TTB
Logs
chipChipset
cpuSocket
Socket 7 (PGA321)
speedFSB speeds
60MHz66MHz75MHz
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 190mm
chipCache
256KB512KB
ramMax RAM size
256MB
ramRAM types
72-pin EDOSDR UDIMM
pwrPSU connector
Empty

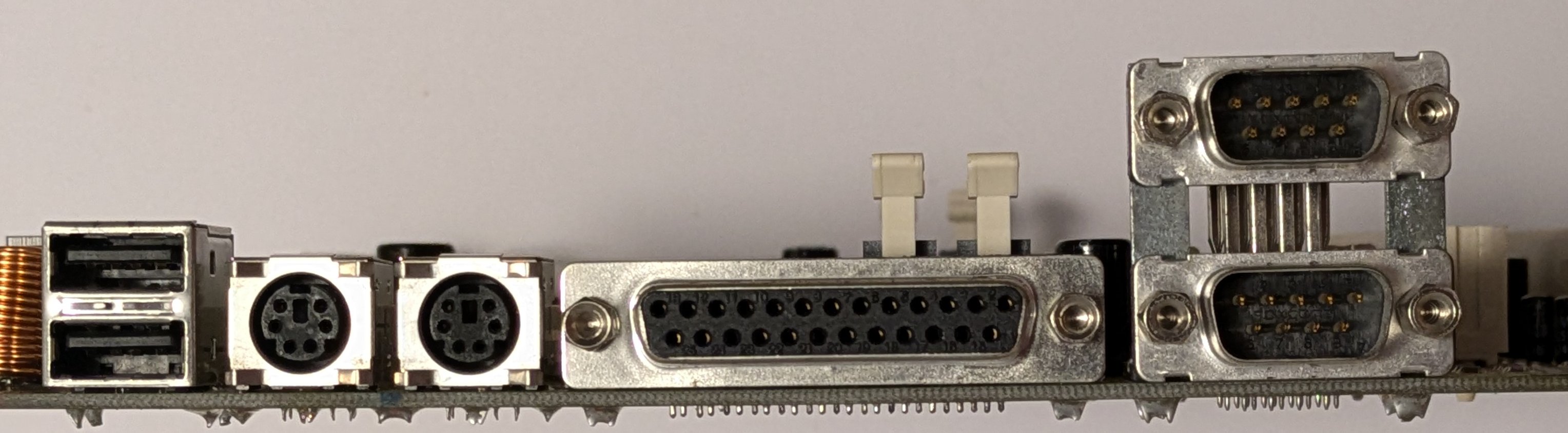

connI/O ports
1x
Floppy interface
2x
IDE interface
1x
PS/2 mouse
1x
Parallel
2x
Serial
2x
USB 1.x
cardExpansion slots
3x
16-bit ISA
5x
32-bit PCI
notes Notes

AMD K6s CPUs lock up at the memory test and cause endless reboots. Consider them unsupported on this motherboard despite chipset support.

Last updated 2025-02-09T09:21:49Z
Board info score is 9/10
bios 1 BIOS file available

vendor Award - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
09/06/97-i430TX-67X-2A59IB0BC-00
Note
ROM.BY Patched
Core version
4.51PG
BIOS version
Logs
drv 6 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
3.00
OS support
OS/2 Warp 3.x Windows NT 3.5x Windows NT 4.0
Arch
x86
Size
1.2MB
Filename
Name
Version
3.7B / 3.7D
OS support
MS-DOS NetWare Server 3 NetWare Server 4 OS/2 Warp 3.x Windows 3.1x Windows 9x Windows NT 3.5x
Arch
x86
Size
1.6MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
x86
Size
2.2MB
Filename
Version
OS support
Windows 2000 Windows 9x
Arch
x86
Size
1.5MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 9x
Arch
x86
Size
569.7KB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
577.8KB
Filename

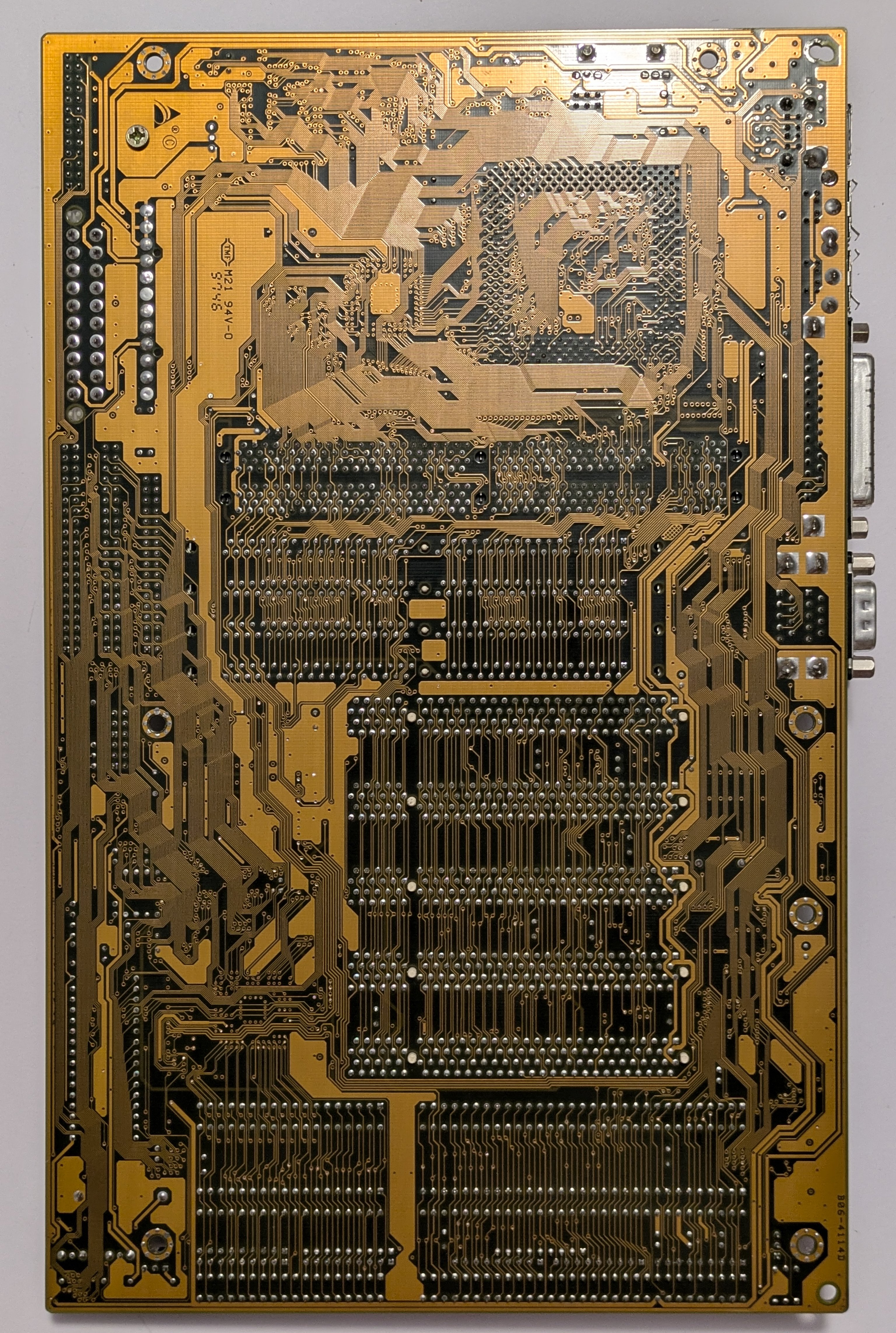

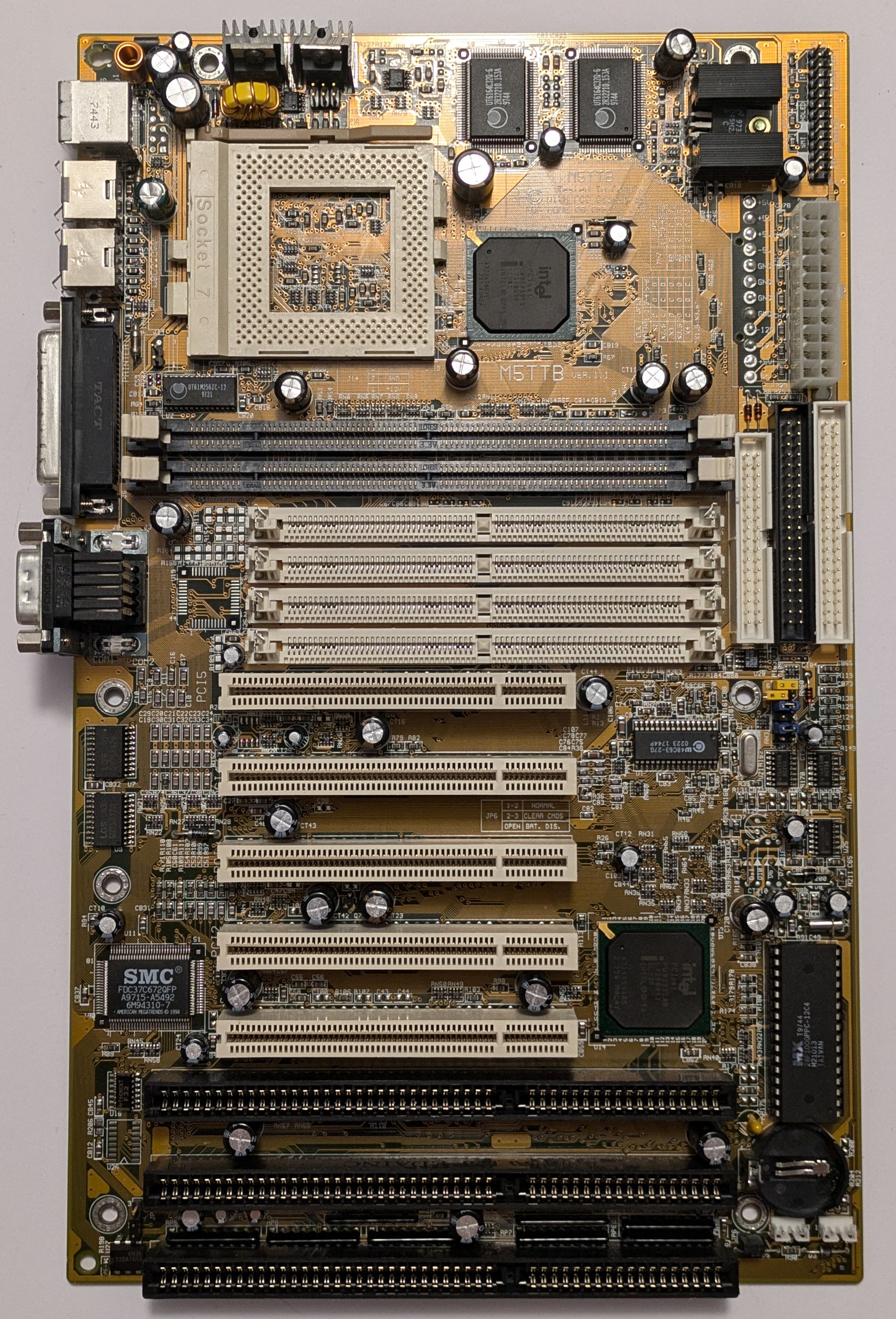

image1 Image 1 of 4 (Microhouse)
image2 Image 2 of 4 (Ninkeo)
image3 Image 3 of 4 (Ninkeo)
image4 Image 4 of 4 (Ninkeo)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
