Biostar M5ATD
Logs
chipChipset
cpuSocket
Socket 7 (PGA321)
speedFSB speeds
50MHz60MHz66MHz
moboForm factor
Baby AT (max 220 x 330 mm)
dimDimensions
220 mm x 188 mm
chipCache
256KB512KB
ramMax RAM size
256MB
ramRAM type
SDR UDIMM
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
connI/O ports
1x
AT Keyboard
1x
Floppy interface
2x
IDE interface
1x
PS/2 mouse
1x
Parallel
2x
Serial
2x
USB 1.x
cardExpansion slots
2x
16-bit ISA
4x
32-bit PCI
Last updated 2025-07-30T18:00:27Z
Board info score is 9.5/10
bios 1 BIOS file available

vendor Award - 2 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
11/26/98-ALi-154x-2A5KIB0BC-00
Note
Core version
4.51PG
BIOS version
ATD1126B
Logs
POST string
07/15/99-ALi-154x-2A5KIB0BC-00
Note
Core version
4.51PG
BIOS version
Logs
drv 4 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
3.56
OS support
Windows 9x Windows NT 4.0
Arch
Size
880.3KB
Filename
Name
Version
1.00
OS support
Windows 9x
Arch
x86
Size
1.5MB
Filename
Name
Version
2.13
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
Size
7.3MB
Filename
Name
Version
2.20
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
Size
10.1MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
1997-06
File
Logs
Family
Release date
1998-01
File
Logs

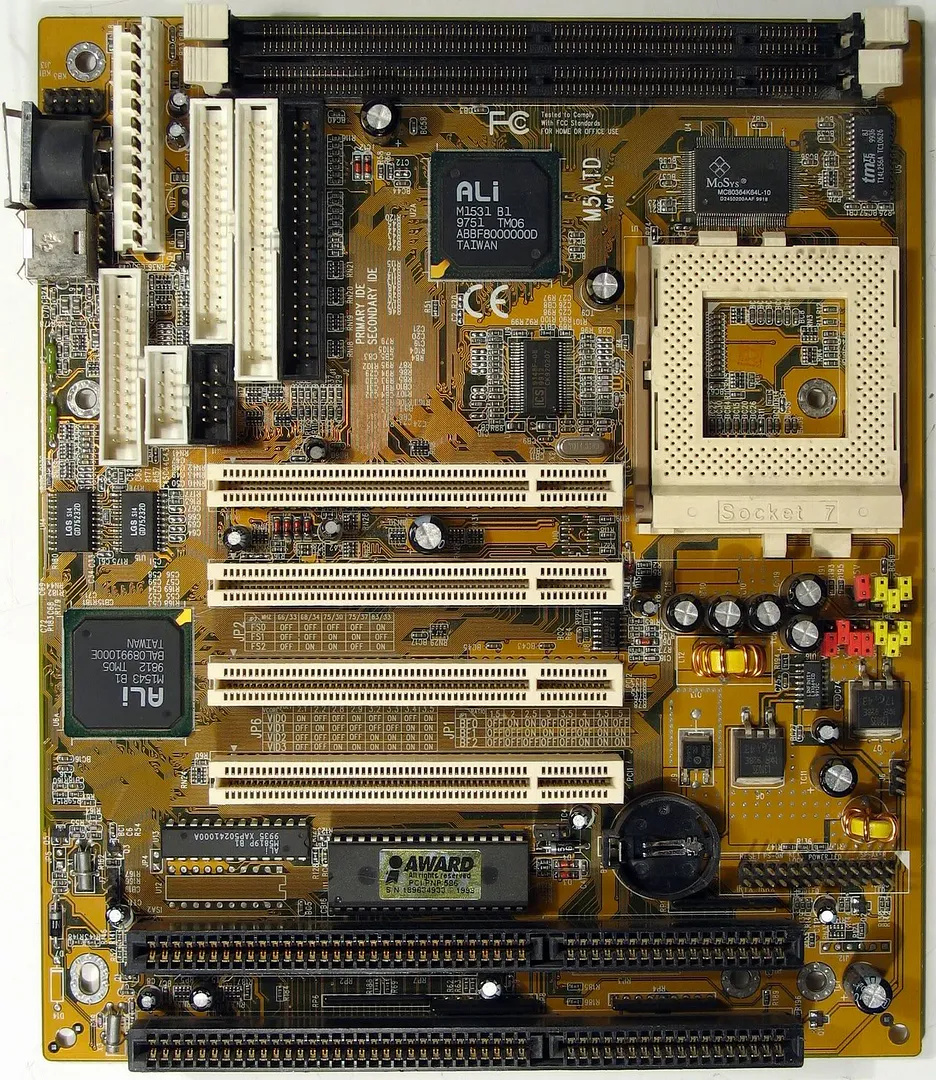

image1 Image 1 of 4 (evasive)

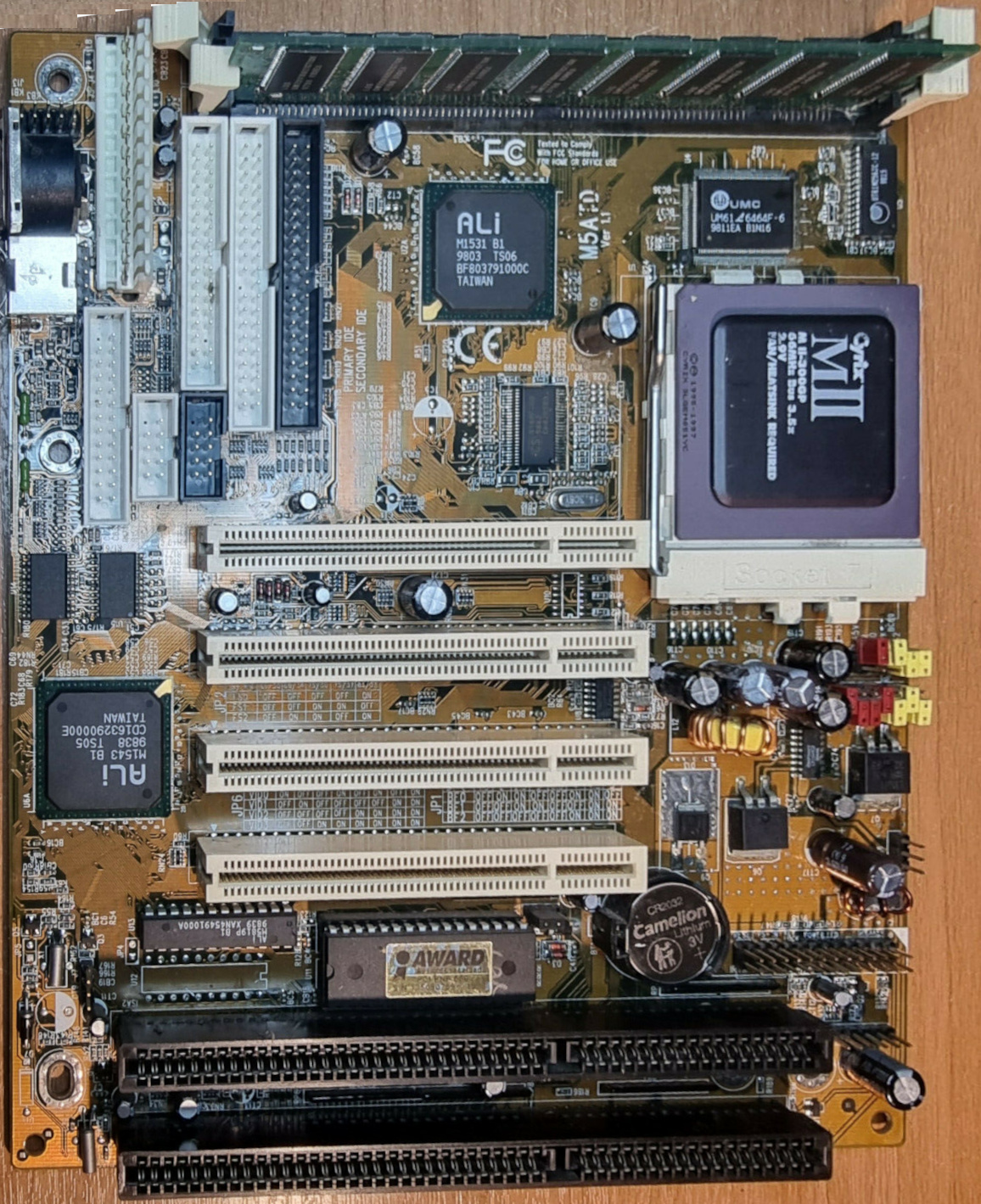

image2 Image 2 of 4 (old_pc_parts)

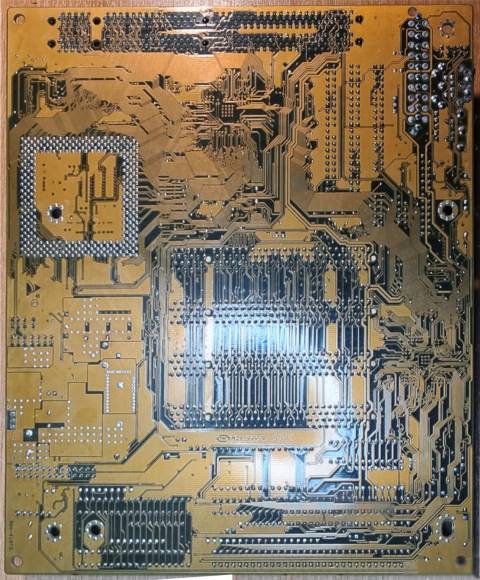

image3 Image 3 of 4
image4 Image 4 of 4
