Biostar K8M800 Micro AM2 Ver: 1.0
Logs
chipChipset
cpuSocket
Socket AM2 (mPGA940)
speedFSB speed
800MHz
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
243 mm x 197 mm
ramMax VRAM size
64MB
chipCache
None/Integrated in the CPU
ramMax RAM size
2GB
ramRAM type
DDR2 UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX) ATX P4 connector 12v (4-pin P4)

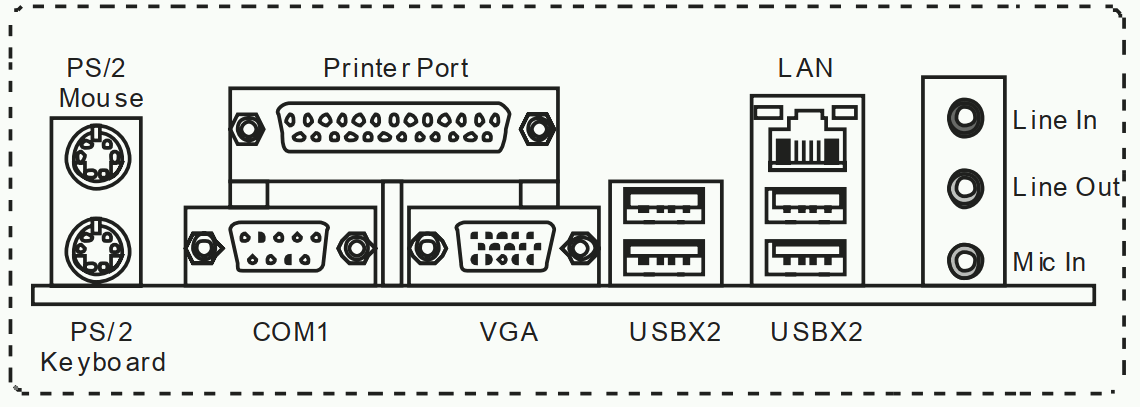

connI/O ports
1x
3.5mm Audio Combo
1x
Floppy interface
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
2x
SATA I
1x
Serial
8x
USB 2.0
1x
VGA
cardExpansion slots
1x
1.5V AGP
2x
32-bit PCI
Last updated 2025-04-08T21:05:28Z
Board info score is 10/10
bios 2 BIOS files available

vendor Award - 2 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
07/24/2008-K8M800-8237-6A7L1B0SC-00
Note
Core version
v6.00PG
BIOS version
Logs
POST string
01/09/2008-K8M800-8237-6A7L1B0SC-00
Note
Core version
v6.00PG
BIOS version
Logs
drv 10 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
A4.06
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
17.9MB
Filename
Name
Version
4.49V
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
1.4MB
Filename
Name
Version
5.24A
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
Size
12.7MB
Filename
Name
Version
5.70d
OS support
Windows 2000 Windows 9x Windows NT 3.5x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
3.9MB
Filename
Name
Version
16.01.22.01
OS support
Windows 9x
Arch
Size
5.7MB
Filename
Name
Version
5.40A
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
x86 , x86-64
Size
10.8MB
Filename
Name
Version
6.14.10.0380
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
3.2MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 9x
Arch
x86
Size
19KB
Filename
Version
OS support
Windows NT 4.0
Arch
x86
Size
16.5KB
Filename
Version
OS support
Windows 2000
Arch
x86
Size
31.9KB
Filename
doc 2 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2003-08
File
Logs
Chip
Release date
2003-08
File
Logs

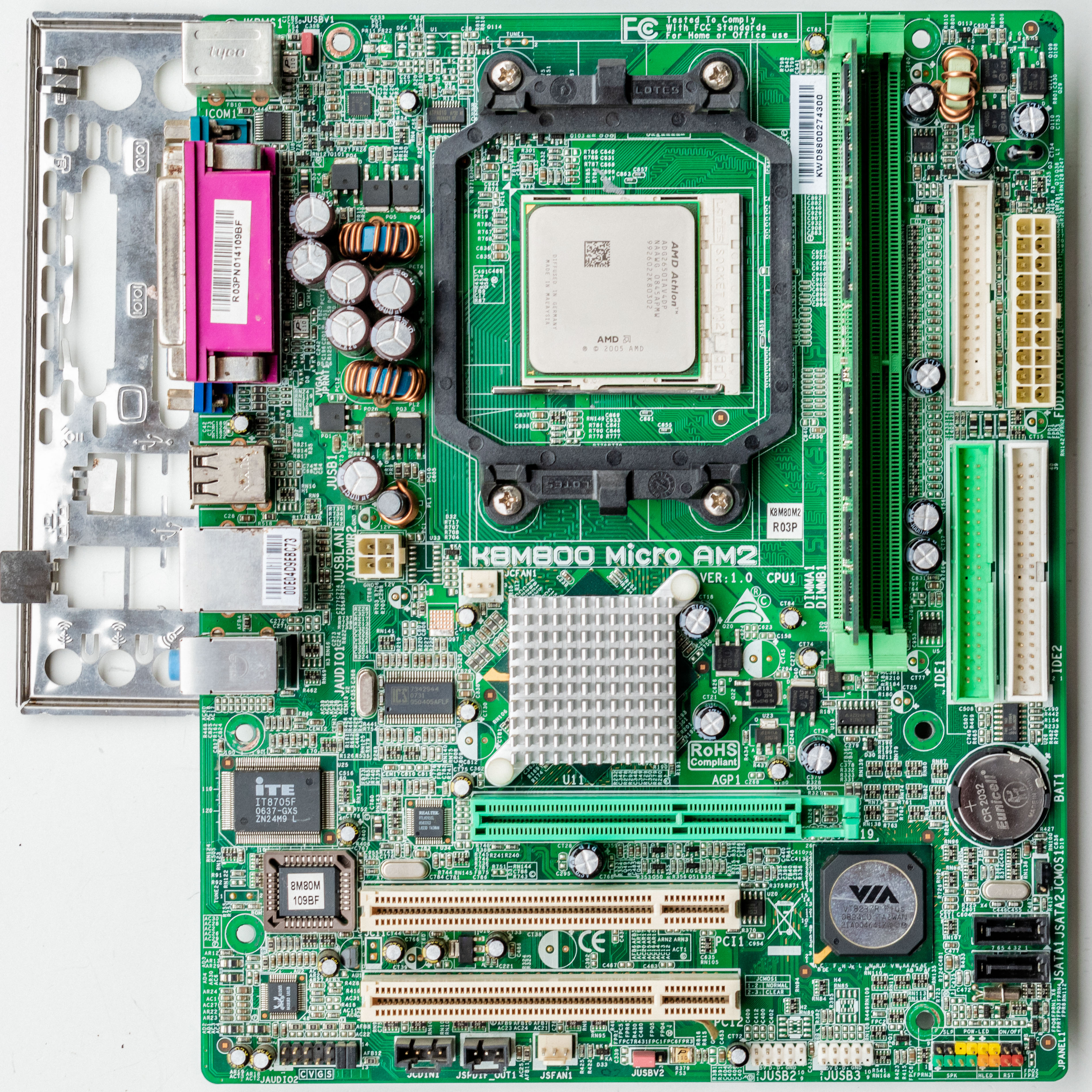

image1 Image 1 of 5 (Biostar)

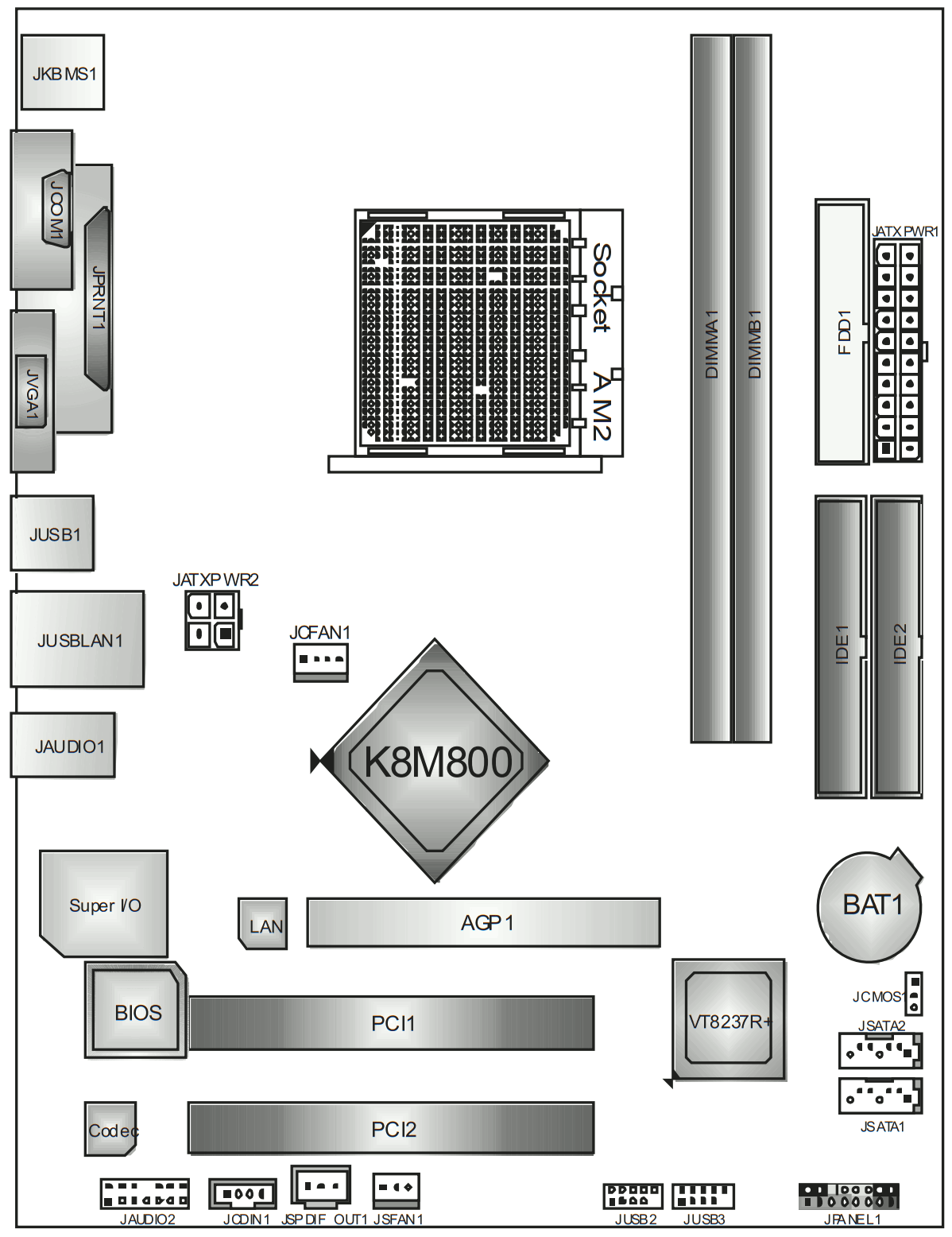

image2 Image 2 of 5 (Motherboard Continuum)

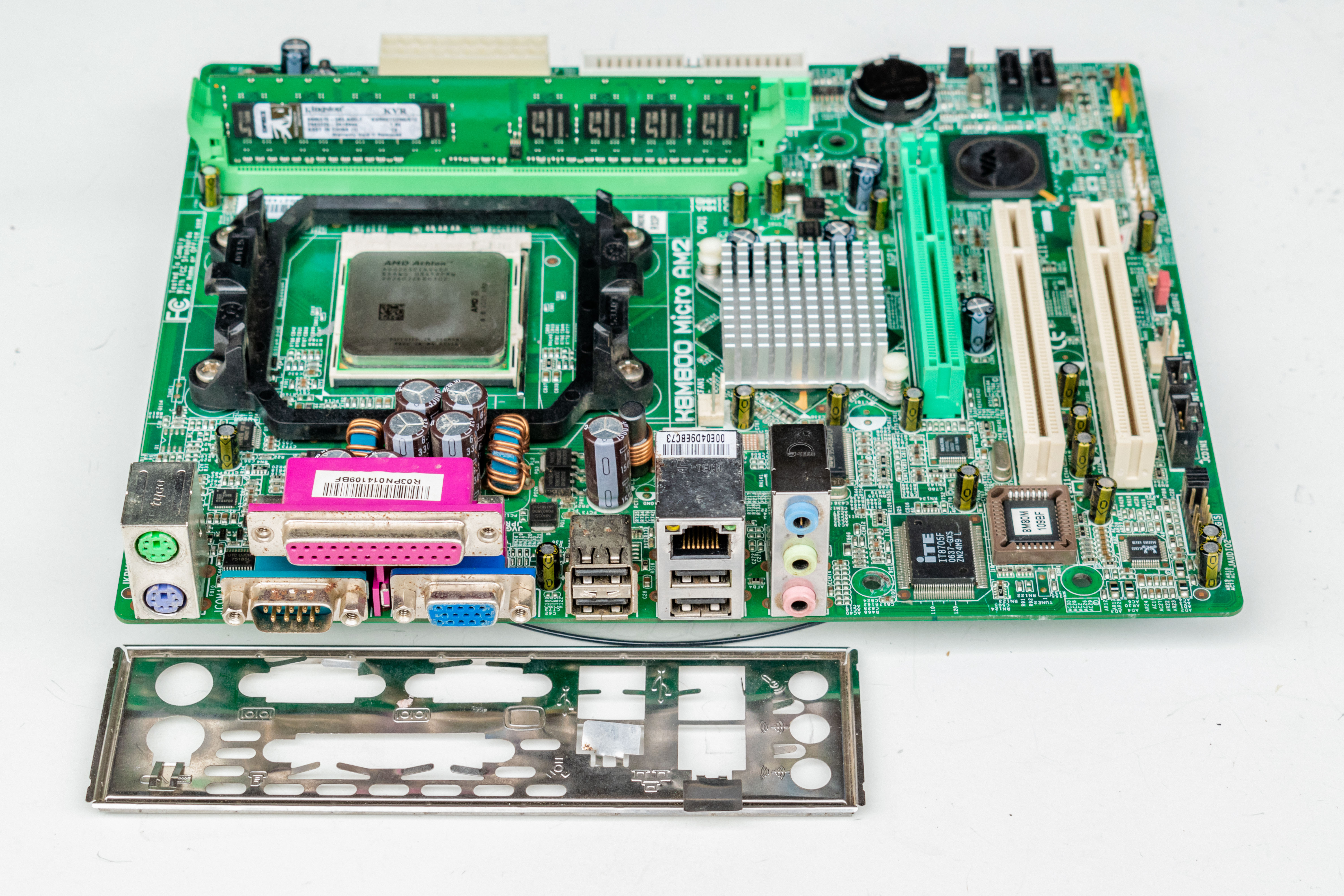

image3 Image 3 of 5 (Motherboard Continuum)

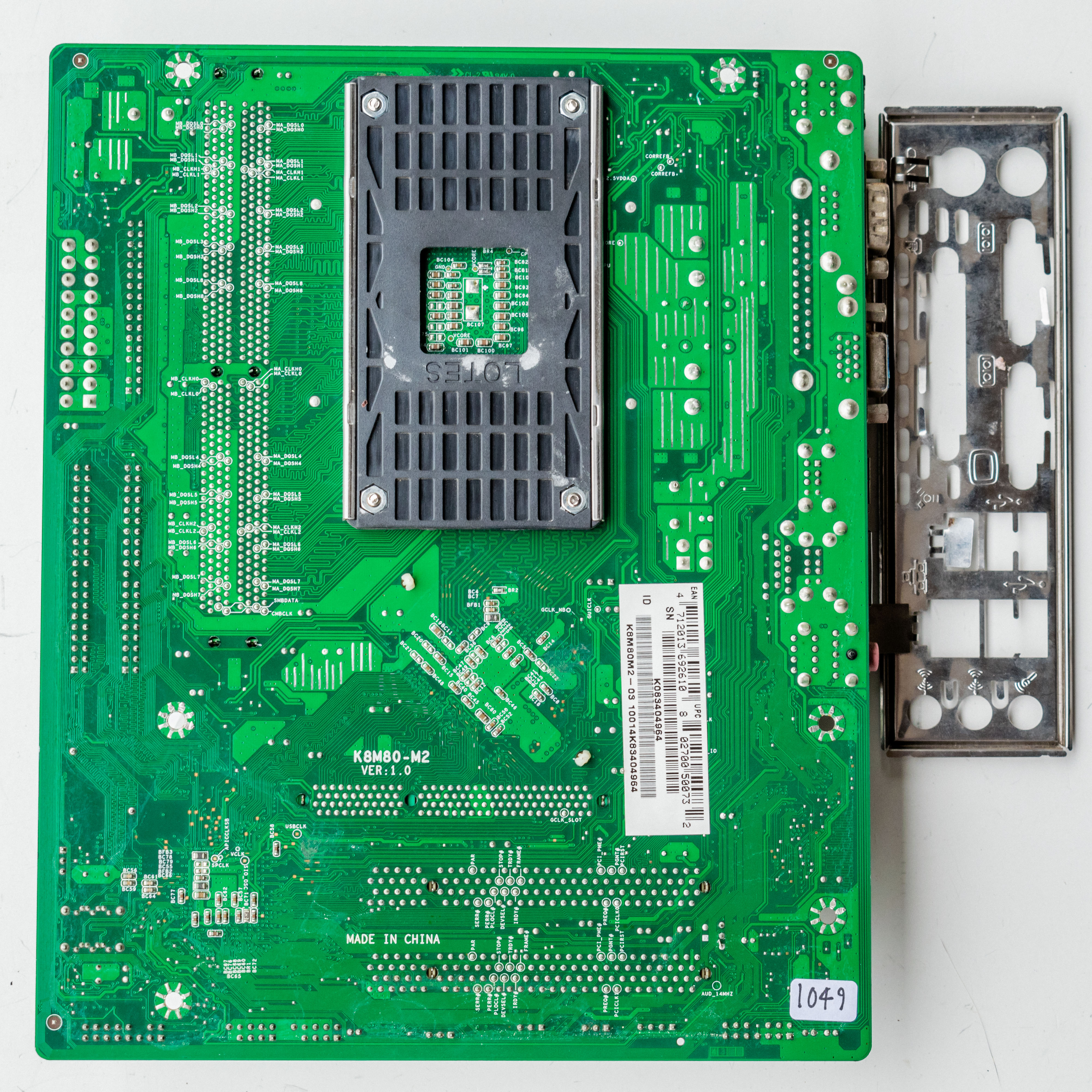

image4 Image 4 of 5 (Motherboard Continuum)
image5 Image 5 of 5 (evasive)
