Biostar BS-111-3
Logs
chipChipset
cpuSocket
DIP40
speedFSB speeds
4.77MHz10MHz
moboForm factor
XT (max 216 × 279 mm)
dimDimensions
254mm x 218mm
chipCache
None/Integrated in the CPU
ramMax RAM size
640KB
ramRAM type
DIP-16 (1bit)
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
connI/O ports
1x
XT Keyboard
cardExpansion slots
8x
8-bit ISA
notes Notes

This board works with the M1101/V20 bios from the GLabios project.

Last updated 2025-09-28T12:10:15Z
Board info score is 7.3/10
chip Chips
-> Chipset part
ALi M1101
cpufam CPU family support
bios 1 BIOS file available

vendor GLaBIOS - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
Core version
0.40
BIOS version
Logs
drv No drivers available
doc No board documents available

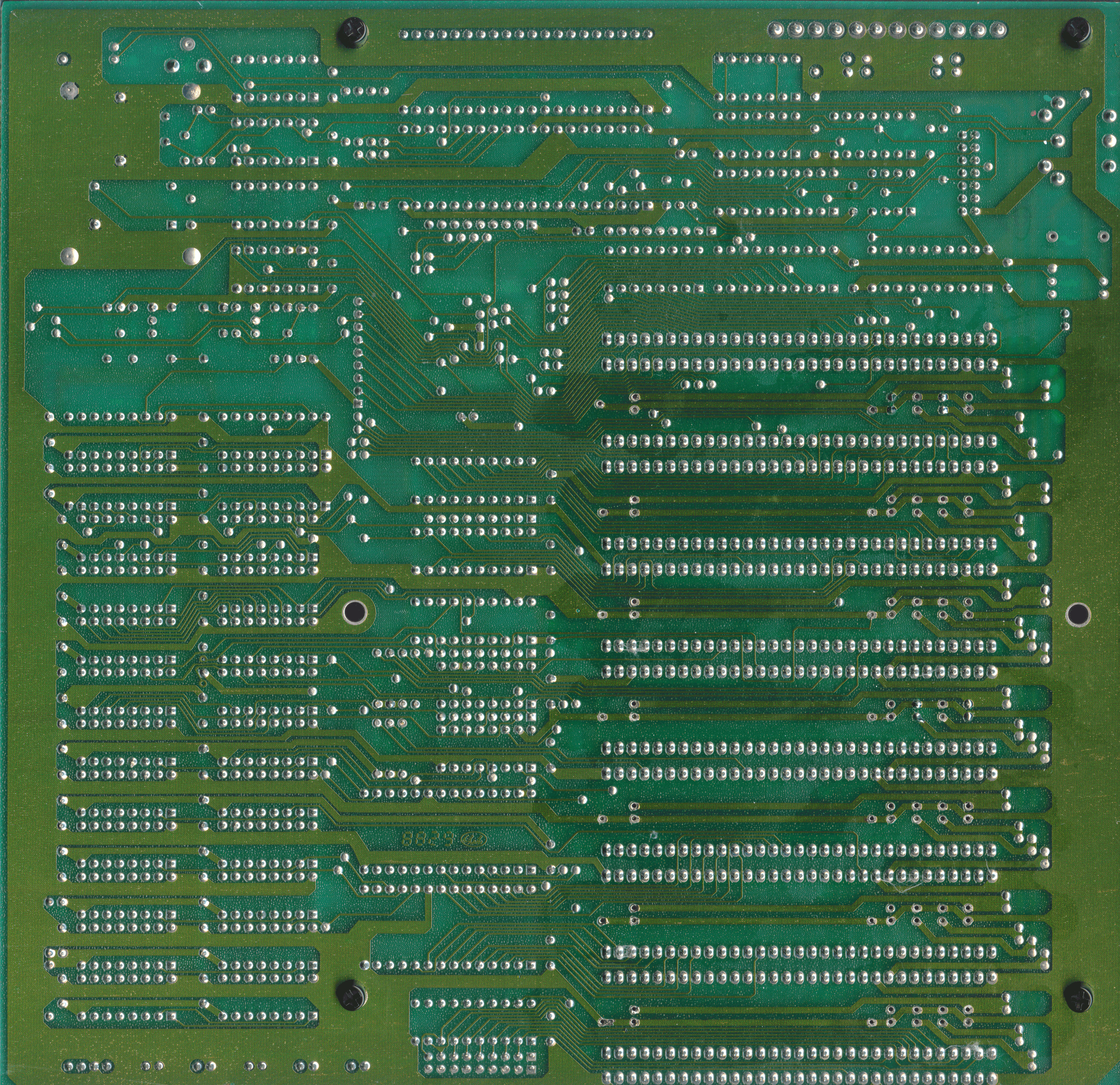

image1 Image 1 of 2 (Rafal Rzeczkowski)

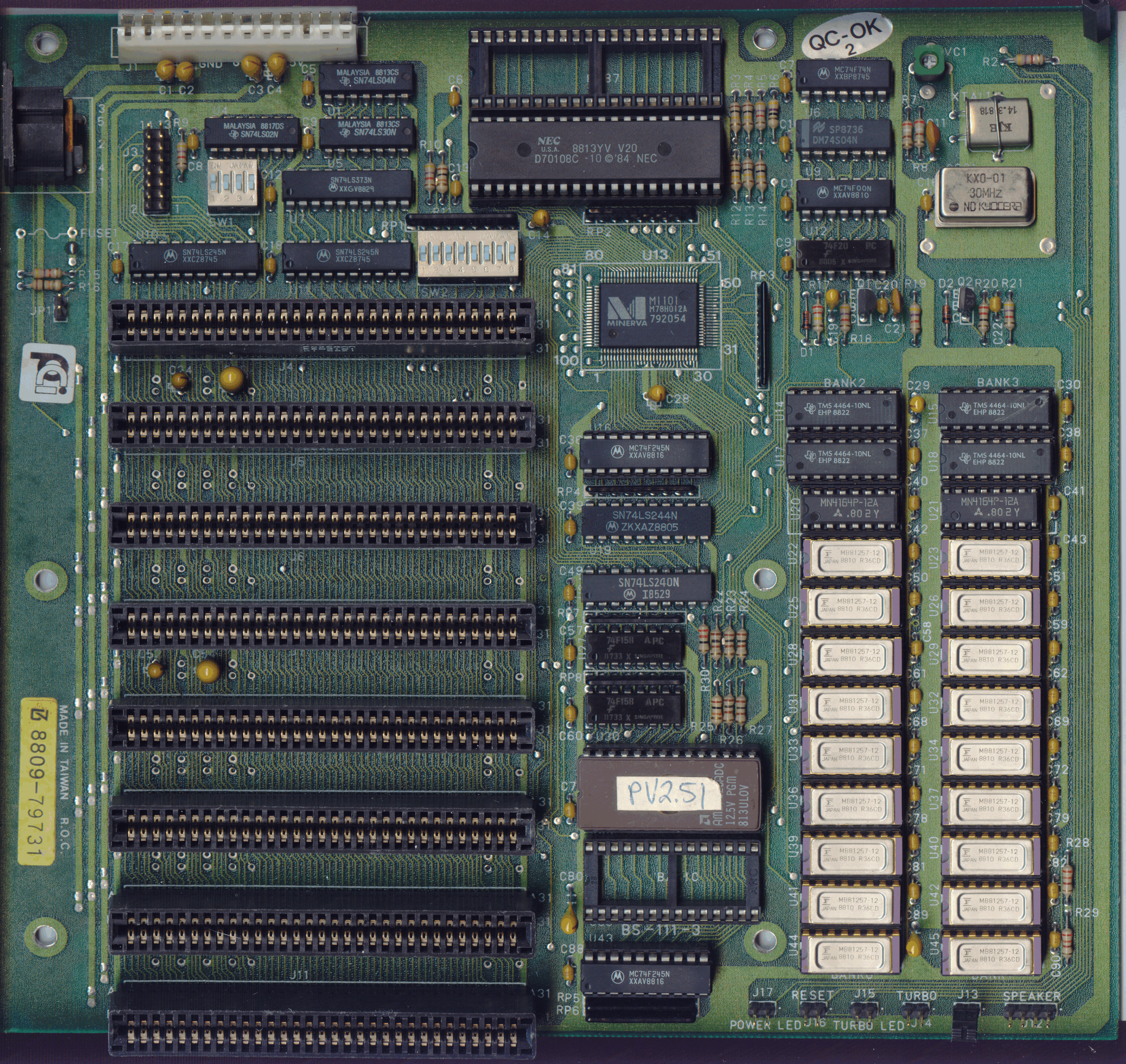

image2 Image 2 of 2 (Rafal Rzeczkowski)
