Biostar A780L3G Ver. 6.x
Logs
chipChipset
cpuSocket
Socket AM3 (mPGA941)
speedFSB speed
Empty
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
244mm x 200mm
ramMax VRAM size
512MB
chipCache
None/Integrated in the CPU
ramMax RAM size
8GB
ramRAM type
DDR3 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)
connI/O ports
1x
3.5mm Audio Combo
1x
DVI
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
4x
SATA II
1x
Serial
8x
USB 2.0
1x
VGA
cardExpansion slots
2x
32-bit PCI
1x
PCIe x16
Last updated 2025-12-05T11:50:05Z
Board info score is 9.2/10
bios 2 BIOS files available

vendor AMI - 2 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
64-0100-000001-00101111-092611-ATHLON64-78LBP016
Note
Core version
080014
BIOS version
Logs
POST string
64-0100-000001-00101111-042110-ATHLON64-78LBP016
Note
Core version
080014
BIOS version
Logs
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename

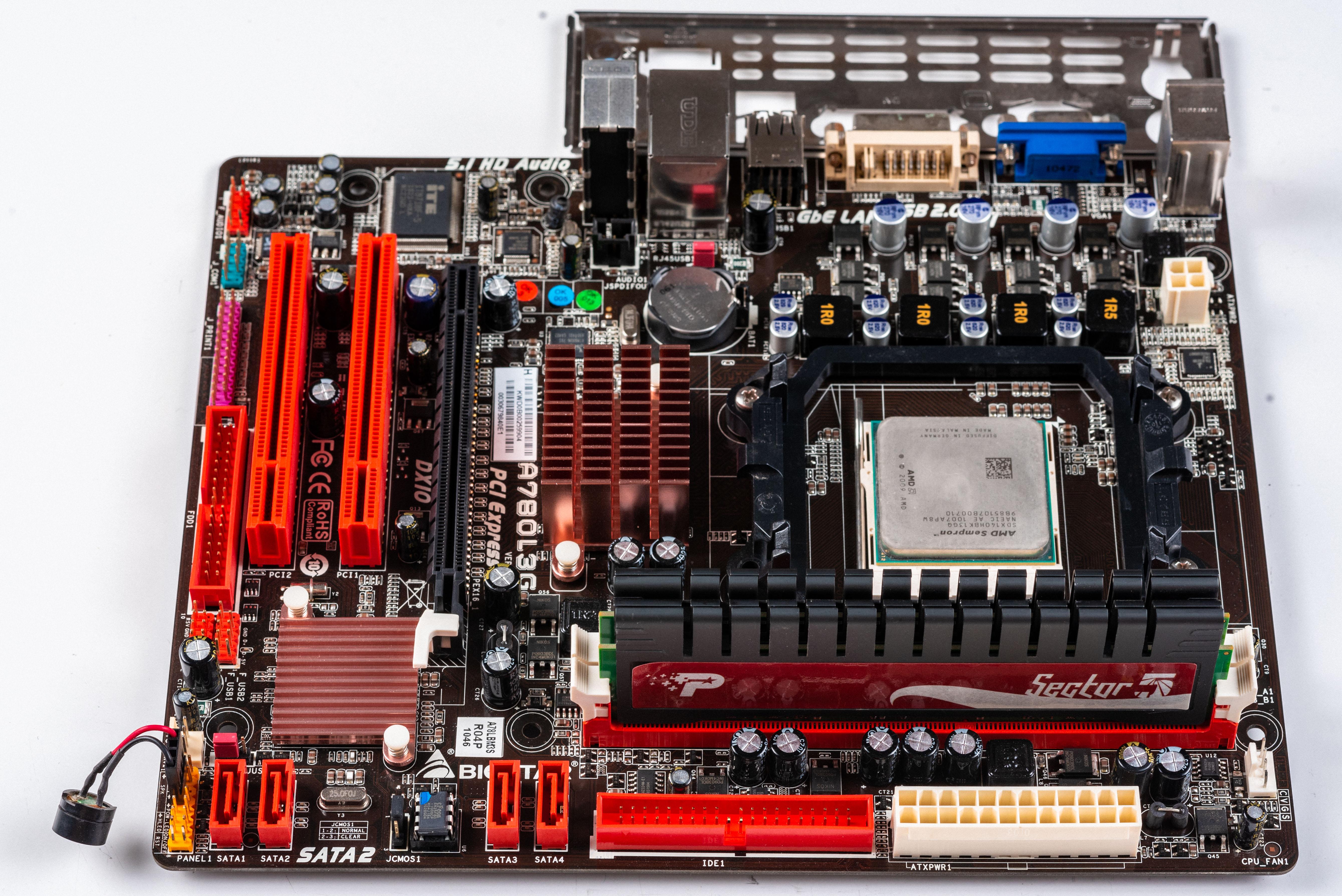

image1 Image 1 of 6 (Motherboard Continuum)

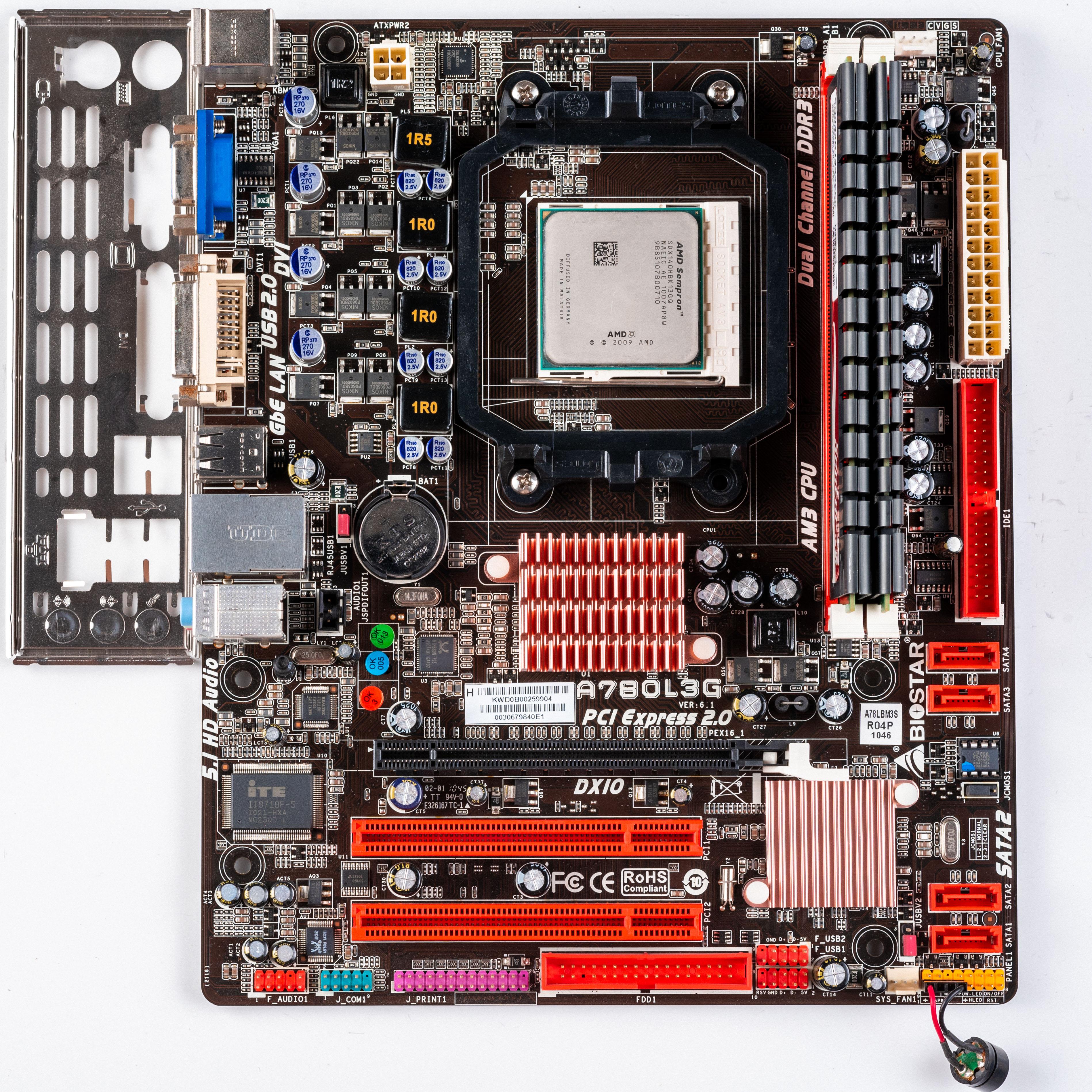

image2 Image 2 of 6 (Motherboard Continuum)

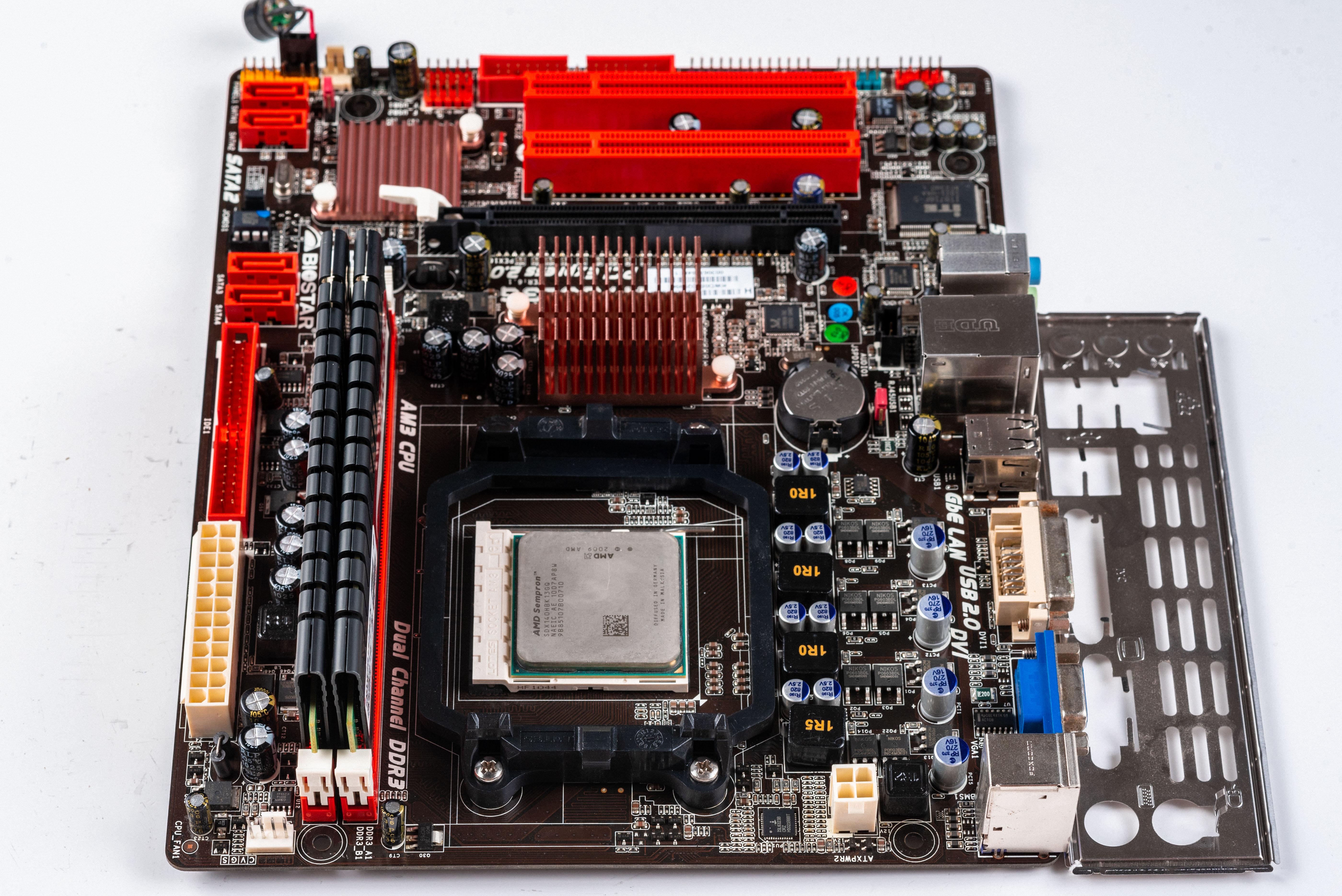

image3 Image 3 of 6 (Motherboard Continuum)

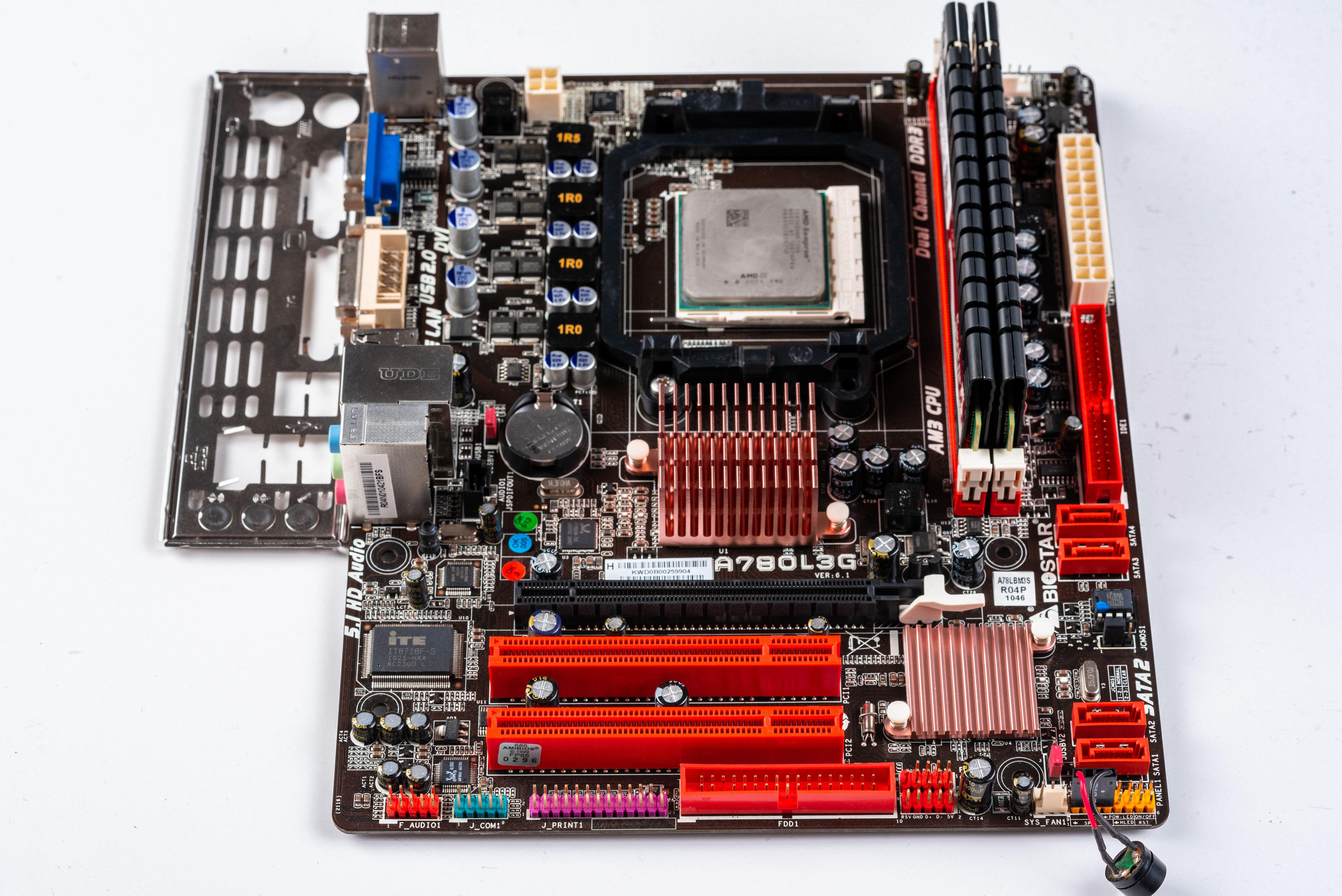

image4 Image 4 of 6 (Motherboard Continuum)

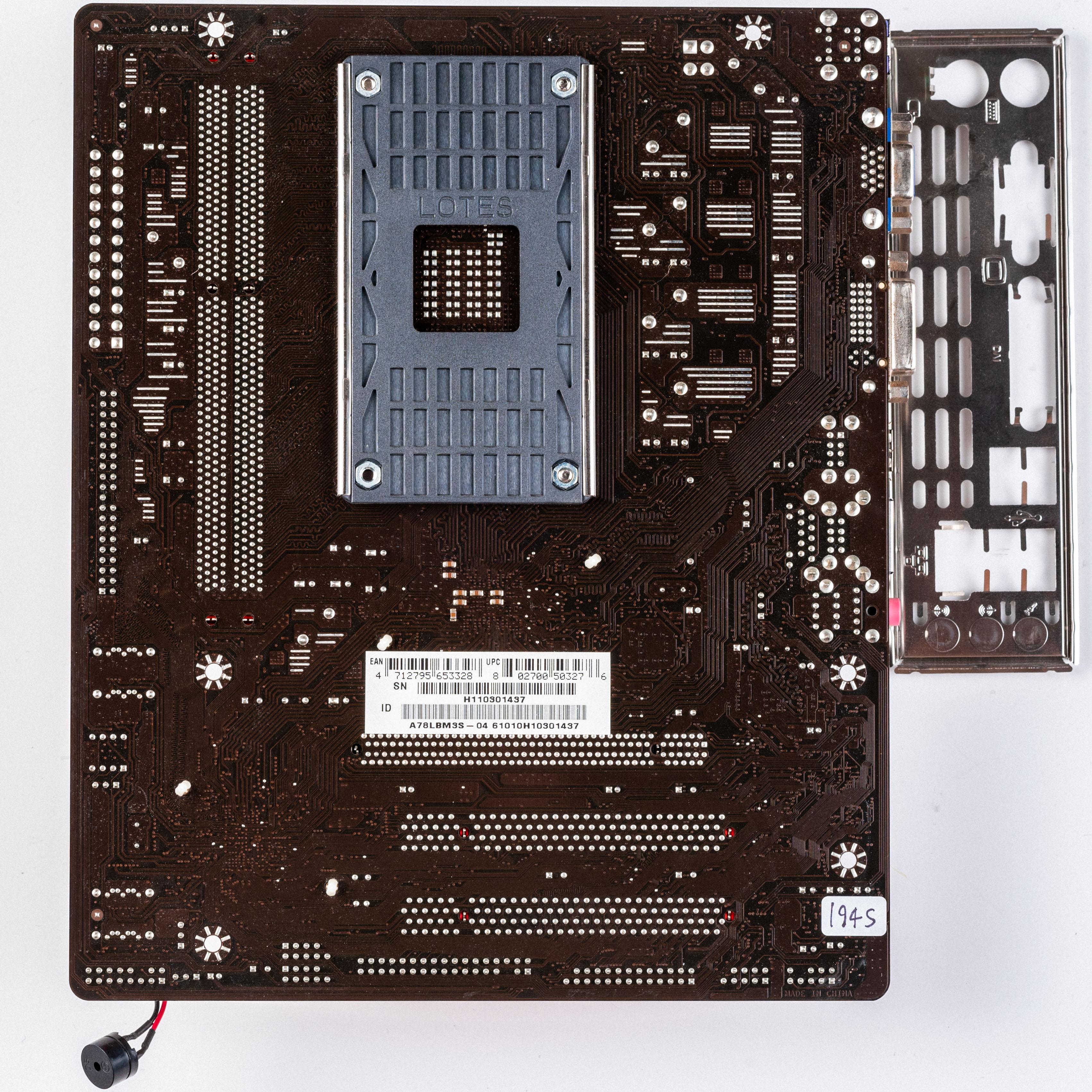

image5 Image 5 of 6 (Motherboard Continuum)
image6 Image 6 of 6 (Motherboard Continuum)
