Biostar A780L Ver. 6.x
Logs
chipChipset
cpuSockets
Socket AM2+ (mPGA940) Socket AM3 (mPGA941)
speedFSB speed
Empty
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
235mm x 182mm
ramMax VRAM size
256MB
chipCache
None/Integrated in the CPU
ramMax RAM size
8GB(DDR2-1066)
ramRAM type
DDR2 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)

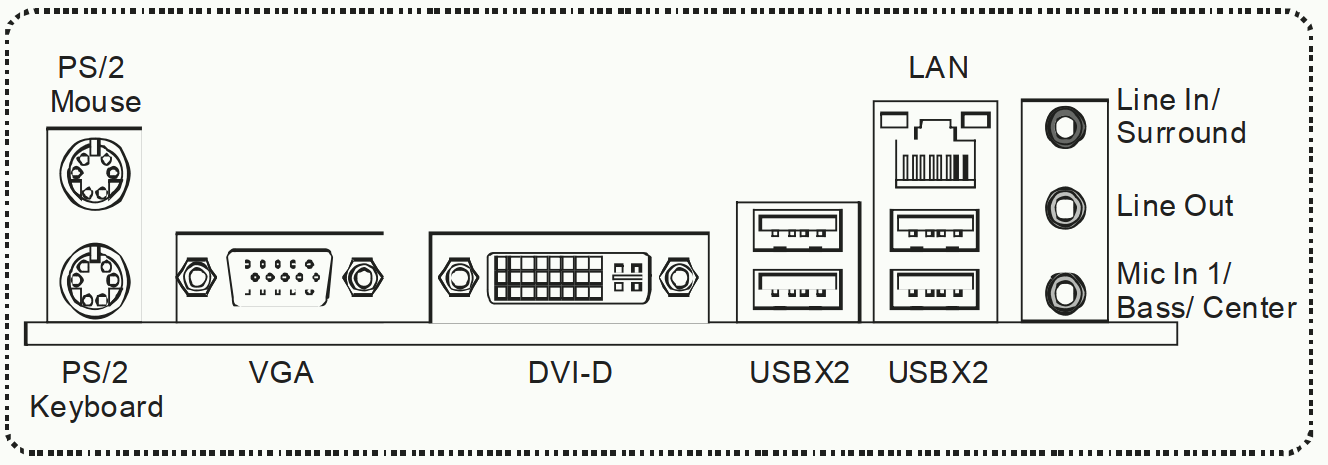

connI/O ports
1x
3.5mm Audio Combo
1x
DVI
1x
IDE interface
1x
PS/2 keyboard
1x
Parallel
1x
RJ-45 LAN
6x
SATA II
1x
Serial
12x
USB 2.0
1x
VGA
cardExpansion slots
2x
32-bit PCI
1x
PCIe x1
1x
PCIe x16
notes Notes

Rare 125W support board from Biostar

Last updated 2025-07-29T20:39:39Z
Board info score is 9.6/10
bios 2 BIOS files available

vendor AMI - 2 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
64-0100-000001-00101111-072010-ATHLON64-78LDU014
Note
Core version
080014
BIOS version
Logs
POST string
64-0100-000001-00101111-041210-ATHLON64-78LDU014
Note
Core version
080014
BIOS version
Logs
drv 2 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename
Name
Version
1.0
OS support
MS-DOS Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
Size
490.9KB
Filename

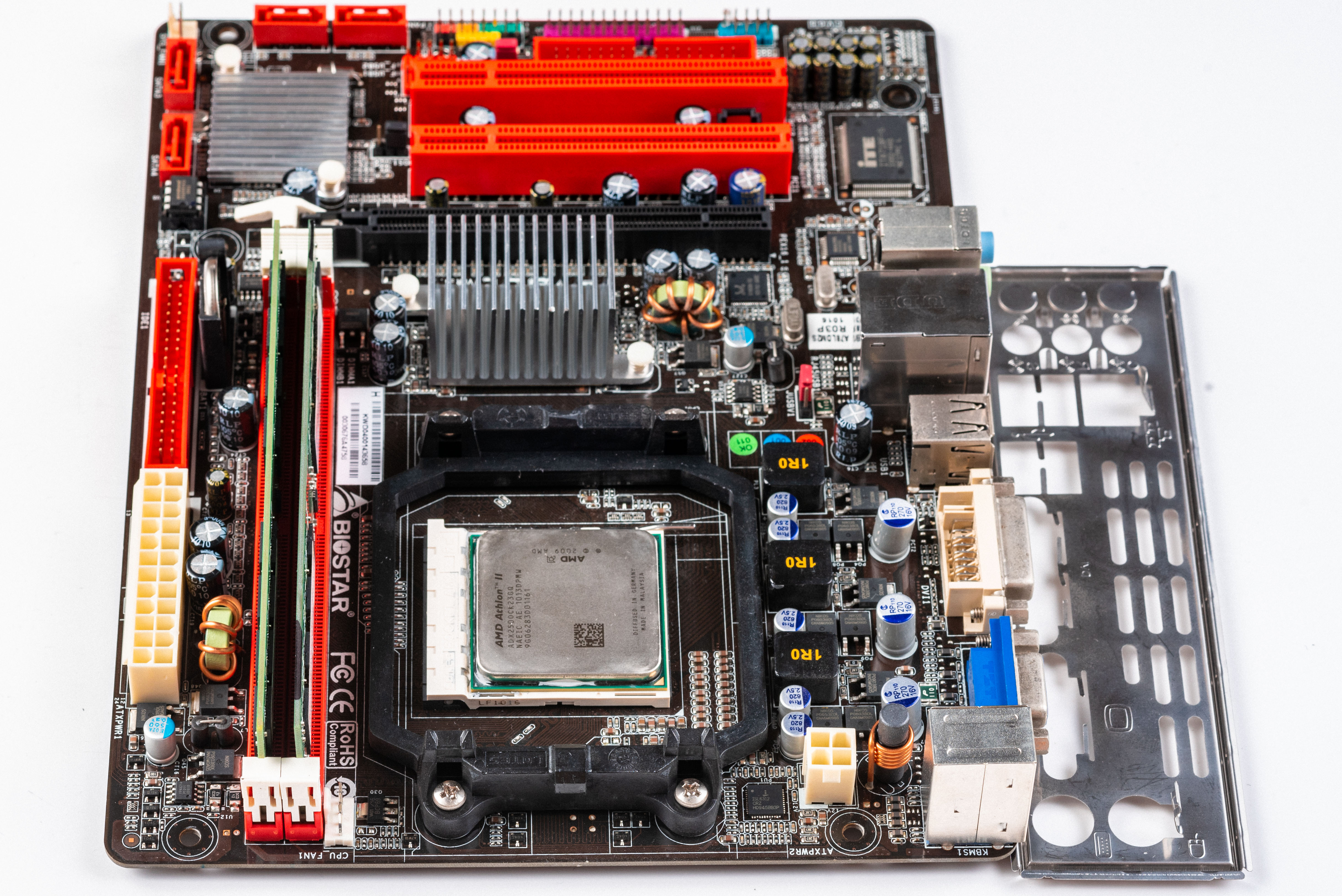

image1 Image 1 of 9 (Biostar)
image2 Image 2 of 9 (Motherboard Continuum)
image3 Image 3 of 9 (Biostar)
image4 Image 4 of 9 (Motherboard Continuum)
image5 Image 5 of 9 (Motherboard Continuum)
image6 Image 6 of 9 (Motherboard Continuum)
image7 Image 7 of 9 (Motherboard Continuum)
image8 Image 8 of 9 (Motherboard Continuum)
image9 Image 9 of 9 (Biostar)
