Beckhoff CB1056
Logs
chipChipset
cpuSocket
Socket G2 (rPGA988B)
speedFSB speed
Empty
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 220mm
chipCache
None/Integrated in the CPU
ramMax RAM size
16GB
ramRAM type
204-pin DDR3 SO-DIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)
connI/O ports
1x
3.5mm Audio Combo
2x
DVI
1x
DisplayPort
1x
GPIO
1x
LVDS
1x
PS/2 keyboard
1x
PS/2 mouse
2x
RJ-45 LAN
1x
S/PDIF
4x
SATA II
2x
SATA III
4x
Serial
14x
USB 2.0
cardExpansion slots
3x
32-bit PCI
2x
PCIe x1
1x
PCIe x16
1x
PCIe x4
wrench No board specific known issues
  • Recalled Product (Certain revisions only)

One or more revisions of this hardware component were recalled from the market because of certain reasons like defects (including major breaking ones), overheating, fire, or safety hazards. Users of said hardware component should take precaution while using it or even avoid using it altogether.

Always look the hardware compoment's page for more info about it.

notes Notes

Suitable CPUs: Intel Core i7-2710QE, i5-2510E, Celeron B810

Last updated 2025-05-28T10:06:18Z
Board info score is 7.5/10
bios 0 BIOS files available
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2021-01-18
File
Logs

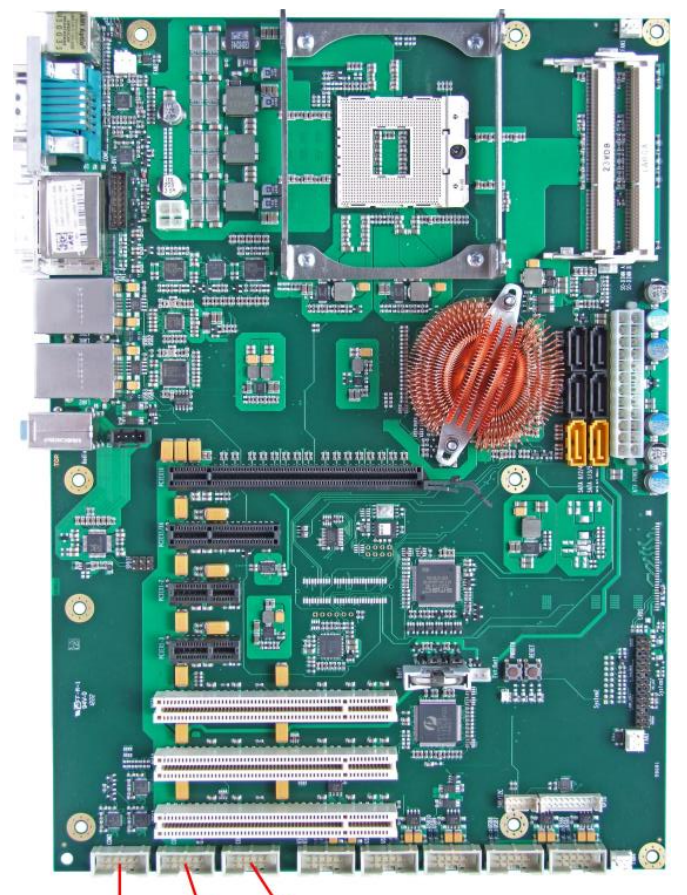

image1 Image 1 of 2 (Beckhoff)

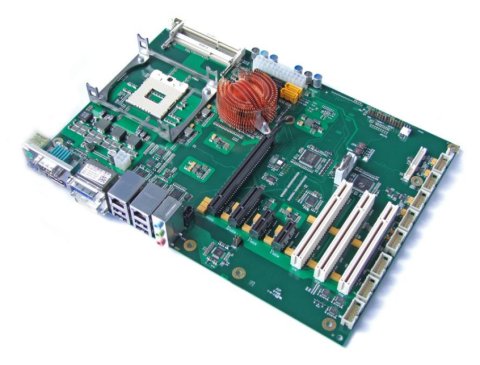

image2 Image 2 of 2 (Beckhoff)
