BCM SL5598
Chipset
Socket
FSB speeds 60MHz66MHz
Form factorLPX (max 229 x 330 mm)
Dimensions228mm x 285mm
Max VRAM size4MB
Cache
None/Integrated in the CPU
Max RAM size
256MB
RAM types 72-pin FPM72-pin EDO
PSU connector
Empty
Also known as
- GVC FM500
I/O ports1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
2x
USB 1.x
1x
VGA
Expansion slotsEmpty
Known issues
- Expansion slots are on proprietary riser
The listed slots are on the riser card that came with the motherboard.
If you have this board make sure you have the riser for it.
Notes
board number 20662
Last updated 2025-06-28T17:34:32Z
Board info score is 8.2/10
Chips
3 BIOS files available
Award - 3 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
No drivers available
2 board documents available
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
1998-01
File
Logs

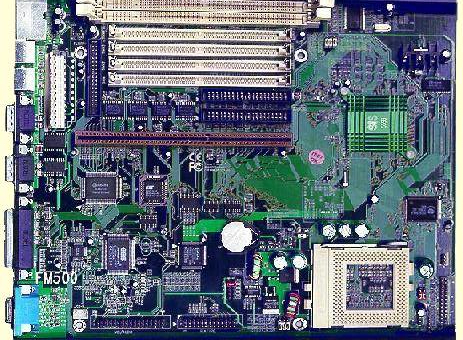

Image 1 of 2

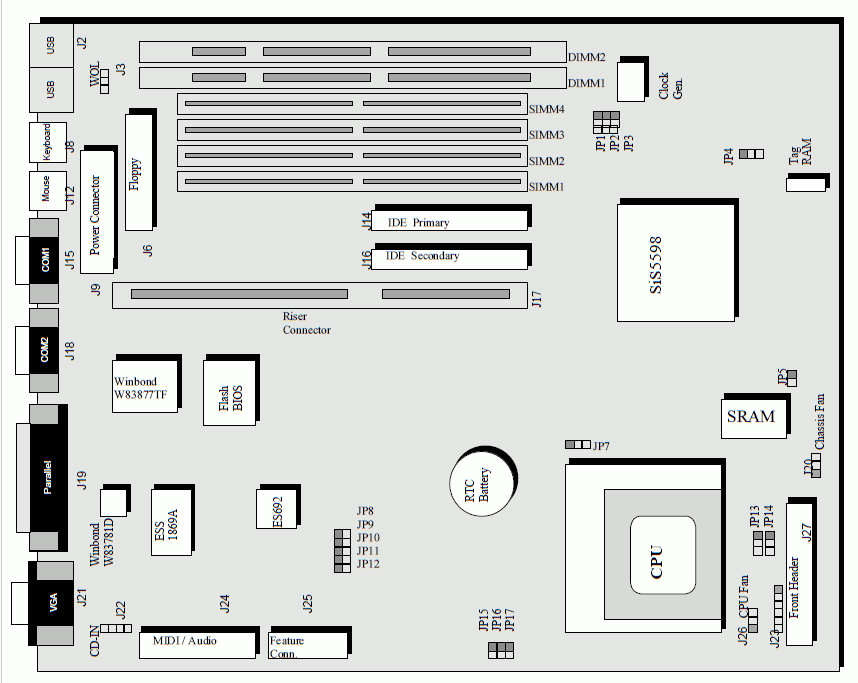

Image 2 of 2
