BCM MX67QM
Logs
chipChipset
cpuSocket
Socket G2 (rPGA988B)
speedFSB speed
Empty
moboForm factor
Mini ITX (max 170 x 170 mm)
dimDimensions
170mm x 170mm
chipCache
None/Integrated in the CPU
ramMax RAM size
8GB
ramRAM type
204-pin DDR3 SO-DIMM
pwrPSU connector
ATX 1.x (20-pin ATX) ATX P4 connector 12v (4-pin P4)

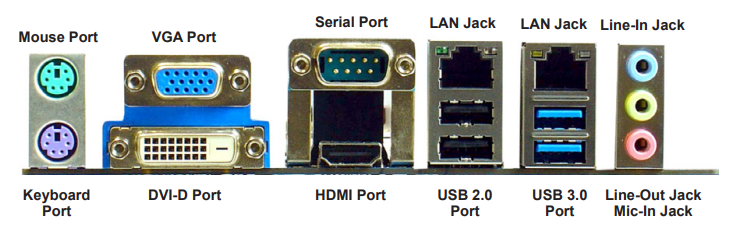

connI/O ports
1x
3.5mm Audio Combo
1x
CF Card Slot
1x
DVI
1x
GPIO
1x
HDMI
1x
LVDS
1x
PS/2 keyboard
1x
PS/2 mouse
2x
RJ-45 LAN
1x
S/PDIF
2x
SATA II
2x
SATA III
5x
Serial
6x
USB 2.0
2x
USB 3.0
1x
VGA
cardExpansion slots
1x
Mini-PCIe
1x
PCIe x16
wrench No board specific known issues
  • Recalled Product (Certain revisions only)

One or more revisions of this hardware component were recalled from the market because of certain reasons like defects (including major breaking ones), overheating, fire, or safety hazards. Users of said hardware component should take precaution while using it or even avoid using it altogether.

Always look the hardware compoment's page for more info about it.

notes Notes

Revisions of this board exist without PS/2, audio jacks, or the multiple serial headers of different types soldered on.

Last updated 2025-06-09T10:09:05Z
Board info score is 9.2/10
bios 2 BIOS files available

vendor AMI - 2 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
63-0100-000001-00101111-102010-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-102010-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename

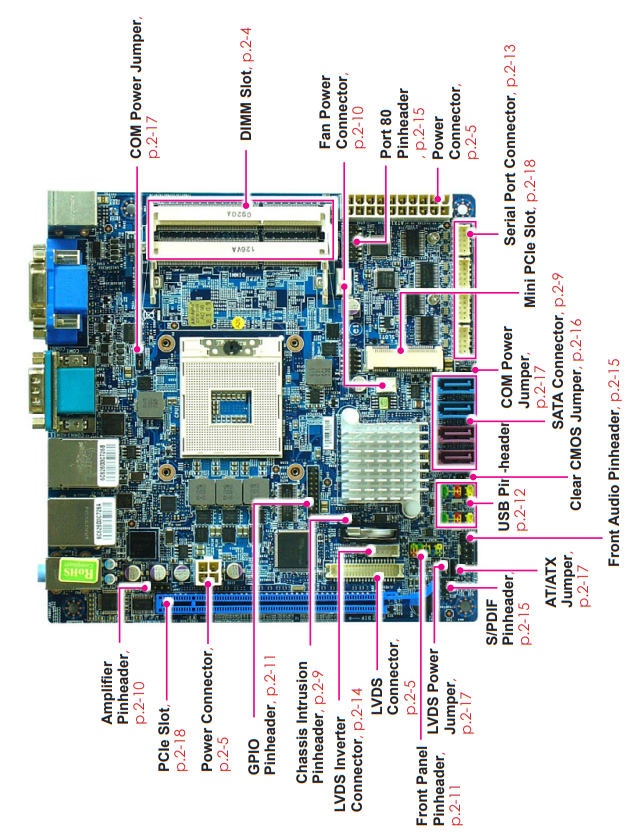

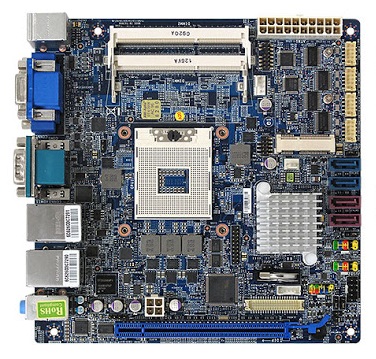

image1 Image 1 of 3
image2 Image 2 of 3
image3 Image 3 of 3
