BCM IN915GVE
Logs
chipChipset
cpuSocket
Socket T (LGA775)
speedFSB speeds
533MHz800MHz
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
244 x 244 mm
chipCache
None/Integrated in the CPU
ramMax RAM size
2GB(DDR2-533)
ramRAM type
DDR2 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)
connI/O ports
1x
3.5mm Audio Combo
1x
Floppy interface
1x
IDE interface
1x
IrDA
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
RJ-45 LAN
4x
SATA I
2x
Serial
8x
USB 2.0
1x
VGA
cardExpansion slots
3x
32-bit PCI
1x
ADD2 (add-on card PCIe)
notes Notes

  • The PCIe slot is actually an ADD2 slot and only works with add-on display cards for the iGPU. PCIe graphics cards won't work.

  • Pentium 4 Cedar Mill might also be supported with newer BIOS versions, however can't be confirmed.

  • Board is RoHS compliant.

Last updated 2025-12-13T09:55:24Z
Board info score is 0/10
bios 1 BIOS file available

vendor Award - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
03/24/2006-Grantsdale-6A79DB39C-00
Note
Core version
6.00PG
BIOS version
Logs
drv 8 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
14.17.0.4396
OS support
Windows 2000 Windows XP/2k3
Arch
Size
Empty
Filename
Name
Version
14.25.50
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
Empty
Filename
Name
Version
V5.00
OS support
MS-DOS Mac OS X NetWare Server 3 NetWare Server 4 Netware Client32 SCO Unix - OpenServer Windows 2000 Windows 3.1x Windows 9x Windows NT 3.5x Windows NT 4.0
Arch
x86 , PPC
Size
3.3MB
Filename
Name
Version
1.0
OS support
MS-DOS Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
Size
490.9KB
Filename
Name
Version
5.12
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
x86
Size
18.5MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
Size
Empty
Filename
Version
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
2.4MB
Filename
Version
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
x86
Size
Empty
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2005-01
File
Logs
Chip
Release date
2007-11
File
Logs
Chip
Release date
2004-10
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2004-11-05
File
Logs
Chip
Release date
2003-08-07
File
Logs
Chip
Release date
2006-09-26
File
Logs
Family
Release date
File
Logs
Family
Release date
2001-02
File
Logs
Family
Release date
File
Logs
Family
Release date
2005-02
File
Logs
Family
Release date
2005-05
File
Logs
Family
Release date
2004-02
File
Logs
Family
Release date
File
Logs
Family
Release date
2001-10
File
Logs
Family
Release date
2002-05
File
Logs
Family
Release date
File
Logs
Socket
Release date
File
Logs
Socket
Release date
2006-02
File
Logs
Socket
Release date
2004
File
Logs

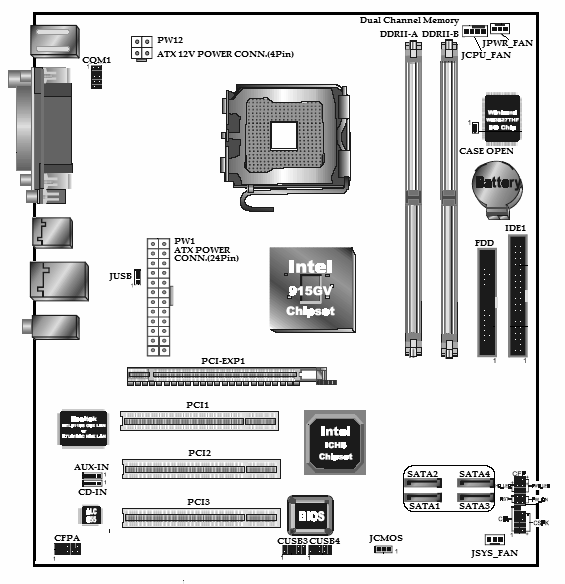

image1 Image 1 of 2 (BCM)

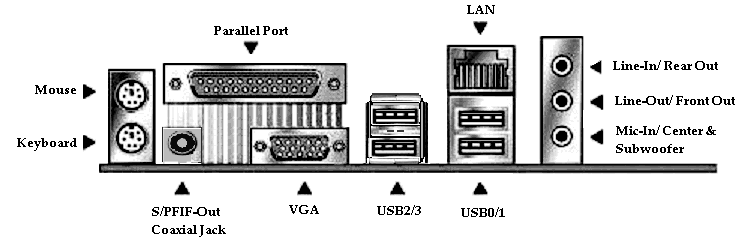

image2 Image 2 of 2 (BCM)
