BCM FM519
Logs
chipChipset
cpuSocket
BGA352
speedFSB speeds
30MHz33MHz
moboForm factor
LPX (max 229 x 330 mm)
dimDimensions
254mm x 218mm
ramMax VRAM size
2MB
chipCache
None/Integrated in the CPU
ramMax RAM size
128MB
ramRAM type
72-pin EDO
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
connI/O ports
1x
3.5mm Audio Combo
1x
Composite Video
1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
S-Video
2x
Serial
1x
VGA
cardExpansion slots
Empty
wrench Known issues
  • Expansion slots are on proprietary riser

The listed slots are on the riser card that came with the motherboard.
If you have this board make sure you have the riser for it.

Last updated 2025-06-28T17:29:28Z
Board info score is 8.9/10
chip Chips
-> Audio
Cyrix n/a (XpressAUDIO)
-> Video
Cyrix n/a (XpressGRAPHICS)
cpufam CPU family support
bios 2 BIOS files available

vendor Award - 2 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
09/05/97-Gx86-Cx5510-2A431B39C-00
Note
Core version
4.51PG
BIOS version
Logs
POST string
07/02/97-Gx86-Cx5510-2A431B39C-00
Note
Core version
4.51PG
BIOS version
Logs
drv 2 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
4.10.01.1305
OS support
Windows 3.1x Windows NT 4.0
Arch
Size
363.2KB
Filename
Name
Version
4.0.114
OS support
Windows NT 4.0
Arch
Size
1.4MB
Filename
doc 2 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs

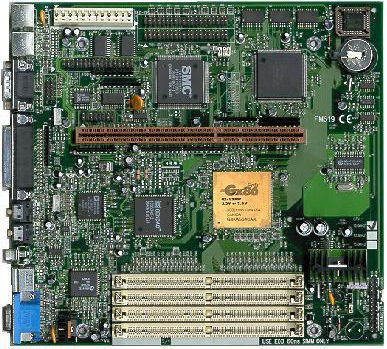

image1 Image 1 of 2 (Microhouse)
image2 Image 2 of 2
