AXIOM Tech / AXIOMTEK SBC8161VES
Chipset
Socket
FSB speeds 66MHz100MHz133MHz
Form factorSingle Board Computer
Dimensions338mm x 122mm
Max VRAM size2MB
Cache
None/Integrated in the CPU
Max RAM size
1.5GB
RAM type SDR UDIMM
PSU connector
Also known as
- AXIOM Tech / AXIOMTEK SBC8161VE (no SCSI)
- AXIOM Tech / AXIOMTEK SBC8161V (no SCSI,no LAN)
- AXIOM Tech / AXIOMTEK SBC8161 (no SCSI,no LAN,no VGA)
I/O ports1x
Disk-on-Chip Socket
1x
Floppy interface
2x
IDE interface
3x
Internal SCSI
1x
IrDA
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
2x
Serial
2x
USB 1.x
1x
VGA
Expansion slots1x
PICMG 1.0 (PCI/ISA)
Last updated 2025-06-06T21:26:36Z
Board info score is 9.4/10
Chips
-> Chipset part
-> Network
-> SCSI ctrl.
-> Video
8 BIOS files available
Award - 8 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
17 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.3.2
OS support
MS-DOS
Windows 3.1x
Arch
x86
Size
1019.2KB
Filename
Name
Version
2.2.7
OS support
OS/2 Warp 3.x
OS/2 Warp 4.x
Arch
x86
Size
1.1MB
Filename
Name
Version
3.06
OS support
Windows 9x
Arch
x86
Size
148.7KB
Filename
Name
Version
4.05
OS support
Windows 9x
Arch
x86
Size
251.3KB
Filename
Name
Version
N/A
OS support
Windows 9x
Arch
x86
Size
1.7MB
Filename
Name
Version
1.29
OS support
Windows NT 4.0
Arch
x86
Size
158.5KB
Filename
Name
Version
1.14
OS support
Windows NT 3.5x
Arch
x86
Size
41.4KB
Filename
Name
Version
1.29
OS support
Windows NT 4.0
Arch
x86
Size
304KB
Filename
Name
Version
5.719.0325.2009
OS support
Linux
MS-DOS
Mac OS X
NetWare Server 3
NetWare Server 4
Windows 2000
Windows 7
Windows 9x
Windows Vista
Windows XP/2k3
Arch
x86
Size
39.5MB
Filename
Name
Version
V5.00
OS support
MS-DOS
Mac OS X
NetWare Server 3
NetWare Server 4
Netware Client32
SCO Unix - OpenServer
Windows 2000
Windows 3.1x
Windows 9x
Windows NT 3.5x
Windows NT 4.0
Arch
x86
, PPC
Size
3.3MB
Filename
Name
Version
4.43V
OS support
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP/2k3
Arch
Size
1.1MB
Filename
Name
Version
N/A
OS support
MS-DOS
Arch
x86
Size
227.7KB
Filename
Name
Version
5.70d
OS support
Windows 2000
Windows 9x
Windows NT 3.5x
Windows NT 4.0
Windows XP/2k3
Arch
x86
Size
3.9MB
Filename
Name
Version
V3.00a
OS support
MS-DOS
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP/2k3
Arch
x86
Size
1.9MB
Filename
Name
Version
1.08
OS support
Windows 2000
Windows 9x
Arch
x86
Size
553.6KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
MS-DOS
OS/2 Warp 4.x
Windows 9x
Windows NT 4.0
Windows XP/2k3
Arch
Size
4.3MB
Filename
Version
OS support
MS-DOS
OS/2 Warp 4.x
Windows 2000
Windows 9x
Windows NT 3.5x
Windows NT 4.0
Windows XP/2k3
Arch
x86
Size
4.3MB
Filename
2 board documents available
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2002-02
File
Logs
Family
Release date
2000-02
File
Logs
Family
Release date
2001-06
File
Logs
Socket
Release date
File
Logs
Socket
Release date
1997-05
File
Logs

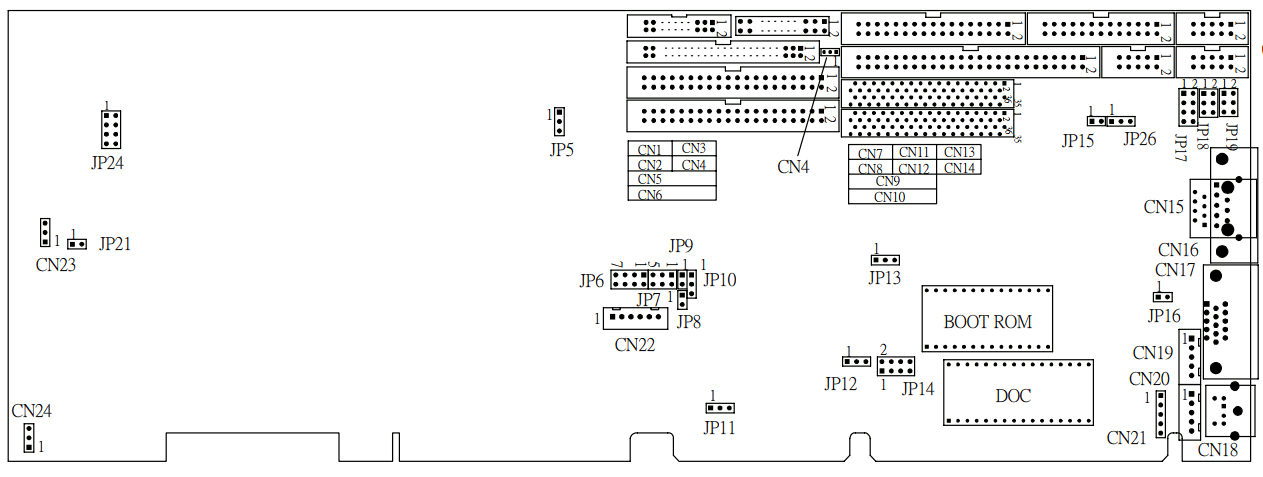

Image 1 of 2 (AXIOM Tech / AXIOMTEK)

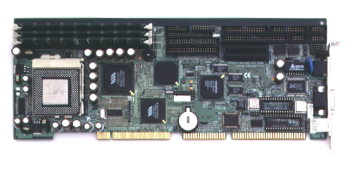

Image 2 of 2 (AXIOM Tech / AXIOMTEK)
