AXIOM Tech / AXIOMTEK MANO842
Chipset
Socket
FSB speed Empty
Form factorMini ITX (max 170 x 170 mm)
Dimensions170mm x 170mm
Cache
None/Integrated in the CPU
Max RAM size
8GB
RAM type 204-pin DDR3 SO-DIMM
PSU connector
Also known as
- AXIOM Tech / AXIOMTEK MANO842VHGGA
- AXIOM Tech / AXIOMTEK P/N:-E38M842101
I/O ports1x
3.5mm Line-In
1x
3.5mm Line-Out
1x
GPIO
1x
HDMI
1x
LVDS
1x
PS/2 keyboard
1x
PS/2 mouse
2x
RJ-45 LAN
1x
SATA II
6x
Serial
5x
USB 2.0
1x
USB 3.0
1x
VGA
1x
mSATA
Expansion slots1x
Mini-PCIe
1x
PCIe x1
1x
SIM Card Socket
Last updated 2025-07-16T19:40:47Z
Board info score is 7.5/10
Chips
-> Audio
-> Network
-> Super I/O
CPU family support
0 BIOS files available
4 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
10.001.0505.2015
OS support
Windows 10
Arch
x86
, x86-64
Size
9.4MB
Filename
Name
Version
7.082.0317.2014
OS support
Windows 7
Arch
x86
, x86-64
Size
3.7MB
Filename
Name
Version
8.029.0314.2014
OS support
Windows 8.x
Arch
x86
, x86-64
Size
3.6MB
Filename
Name
Version
R2.74
OS support
Windows 2000
Windows 7
Windows Vista
Windows XP/2k3
Arch
Size
30.7MB
Filename
2 board documents available
Chip
Release date
File
Logs
Chip
Release date
2011-02-11
File
Logs

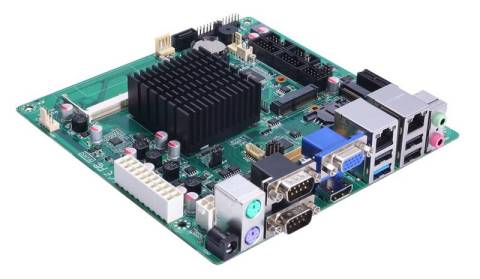

Image 1 of 2 (AXIOM Tech / AXIOMTEK)

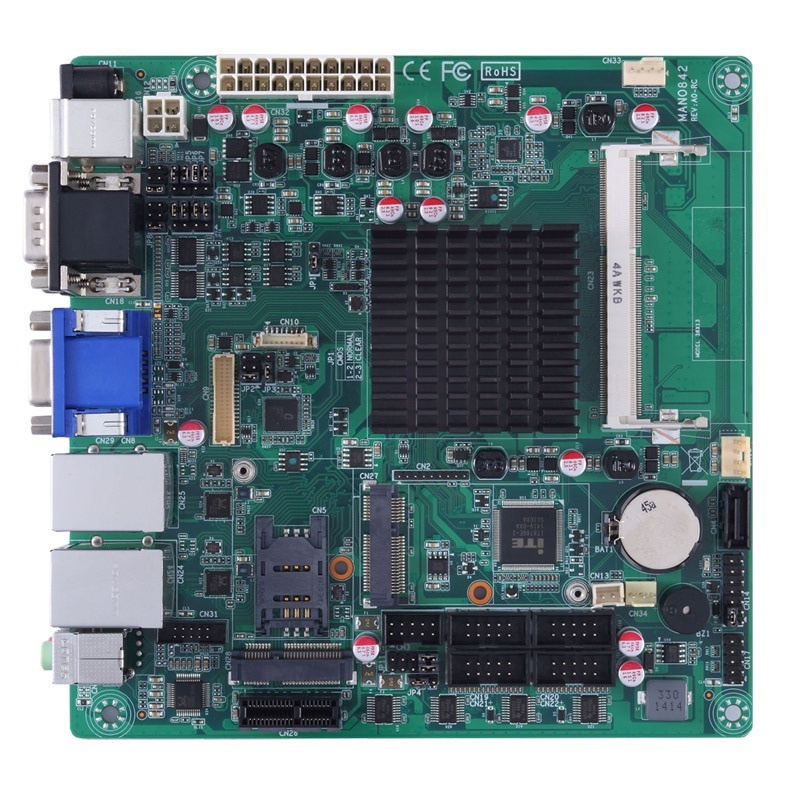

Image 2 of 2 (AXIOM Tech / AXIOMTEK)
