AT&T PSK-2000
Chipset
Socket
FSB speeds 50MHz60MHz66MHz
Form factorLPX (max 229 x 330 mm)
Dimensions330mm x 218mm
Max VRAM size2MB
RAM type
PSU connector
I/O ports1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
1x
VGA
Expansion slots3x
16-bit ISA
2x
32-bit PCI
Known issues
- Expansion slots are on proprietary riser

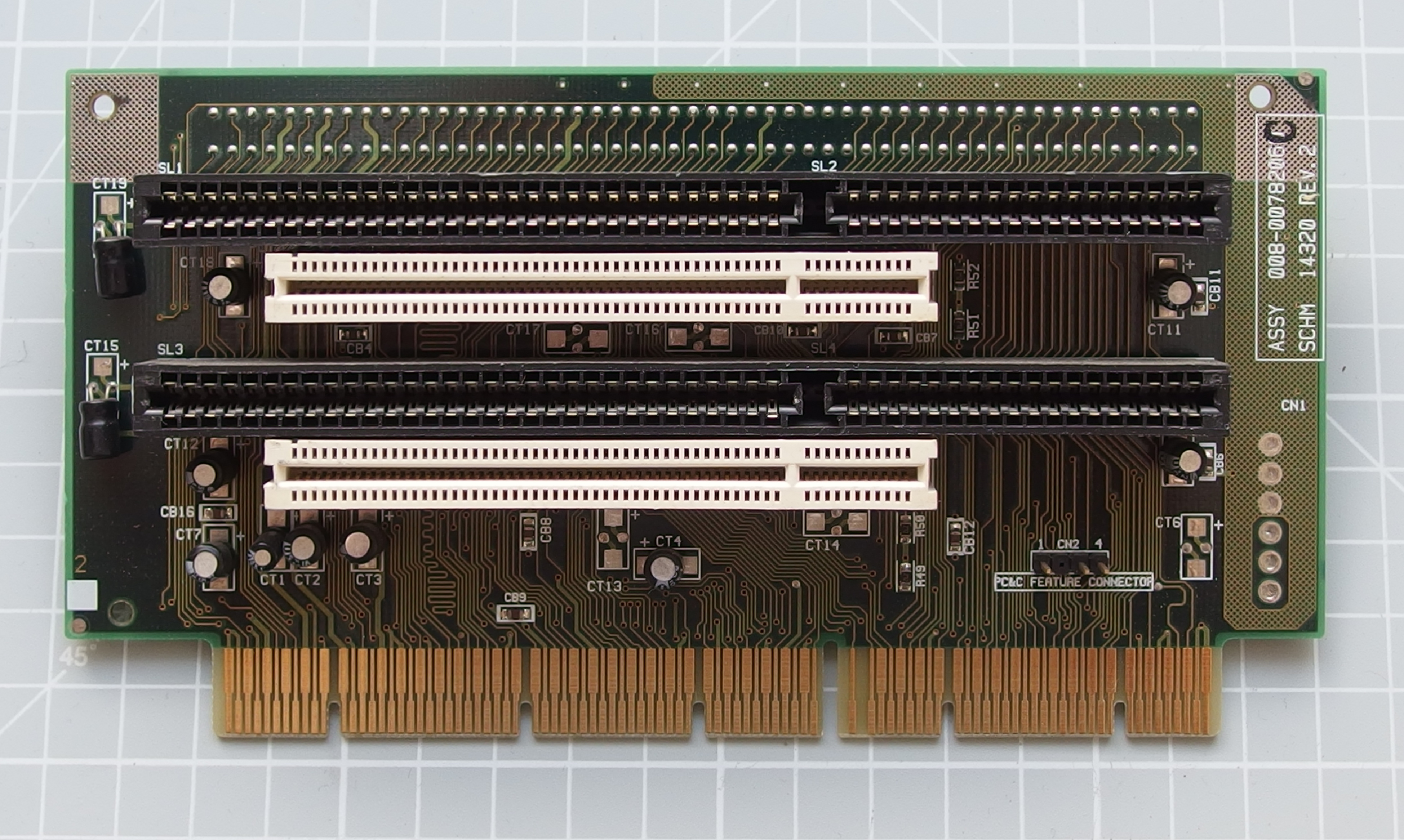

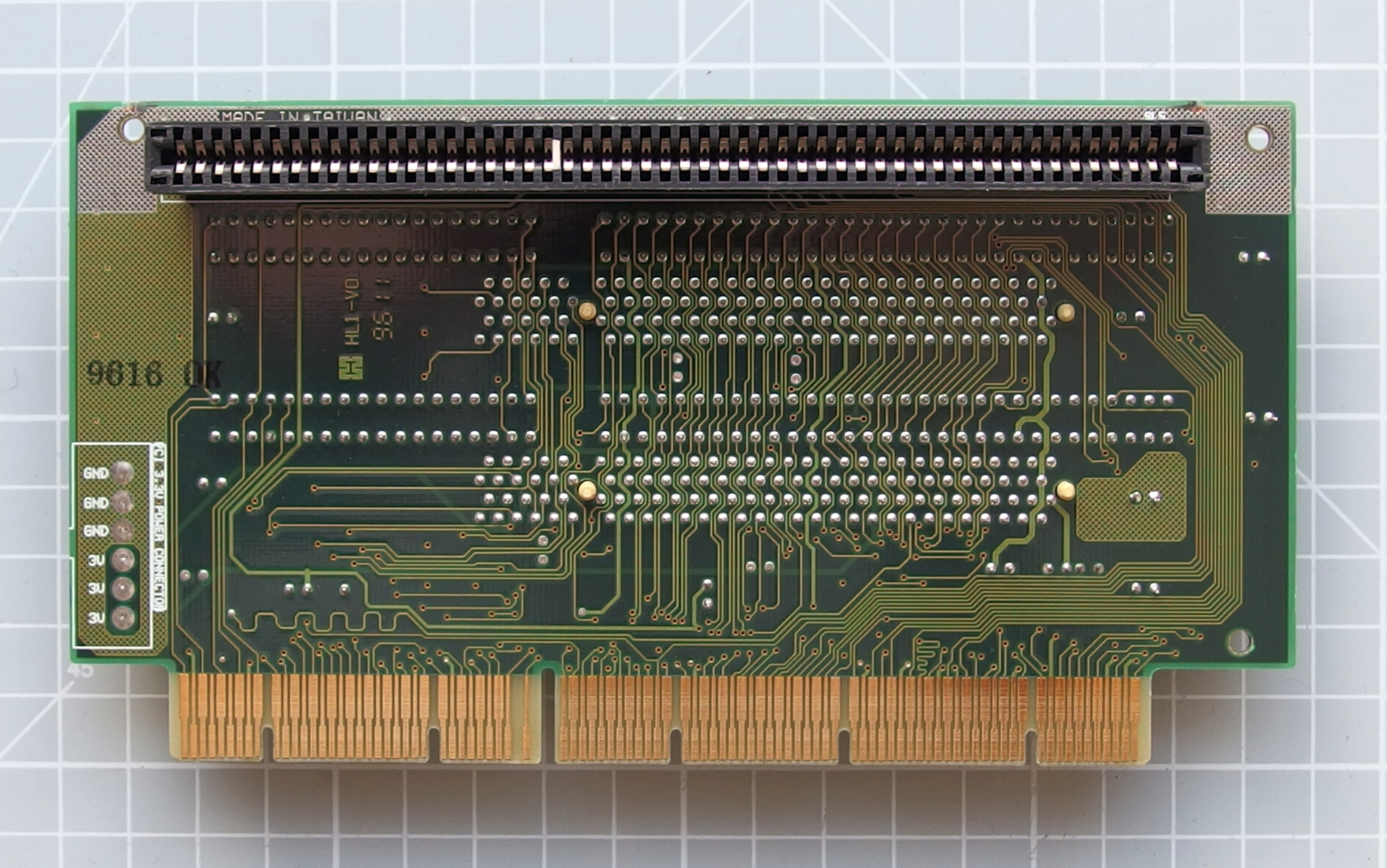

The listed slots are on the riser card that came with the motherboard.
If you have this board make sure you have the riser for it.
- Faulty IDE Controller
The IDE controller(s) is known to be faulty, which may cause problems with IDE devices such as data corruption or lockups.
Last updated 2025-06-28T17:27:54Z
Board info score is 8/10
Chips
-> Chipset part
VLSI VL82C595 (Data Buffer)
VLSI VL82C594 (System Controller)
VLSI VL82C596 (PCI to ISA Bridge Single CPU)
-> IDE ctrl.
-> Super I/O
-> Video
CPU family support
1 BIOS file available
Phoenix - 1 entry
POST string
Note
Core Ver.
BIOS Ver.
Logs
2 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
v2.09
OS support
MS-DOS
NetWare Server 3
NetWare Server 4
OS/2 2.x
SCO Unix - OpenServer
Windows NT 3.1
Windows NT 3.5x
Arch
x86
Size
691.2KB
Filename
Name
Version
1.6
OS support
OS/2 1.x
OS/2 2.x
OS/2 Warp 3.x
Arch
x86
Size
1.2MB
Filename
No board documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1995-03
File
Logs

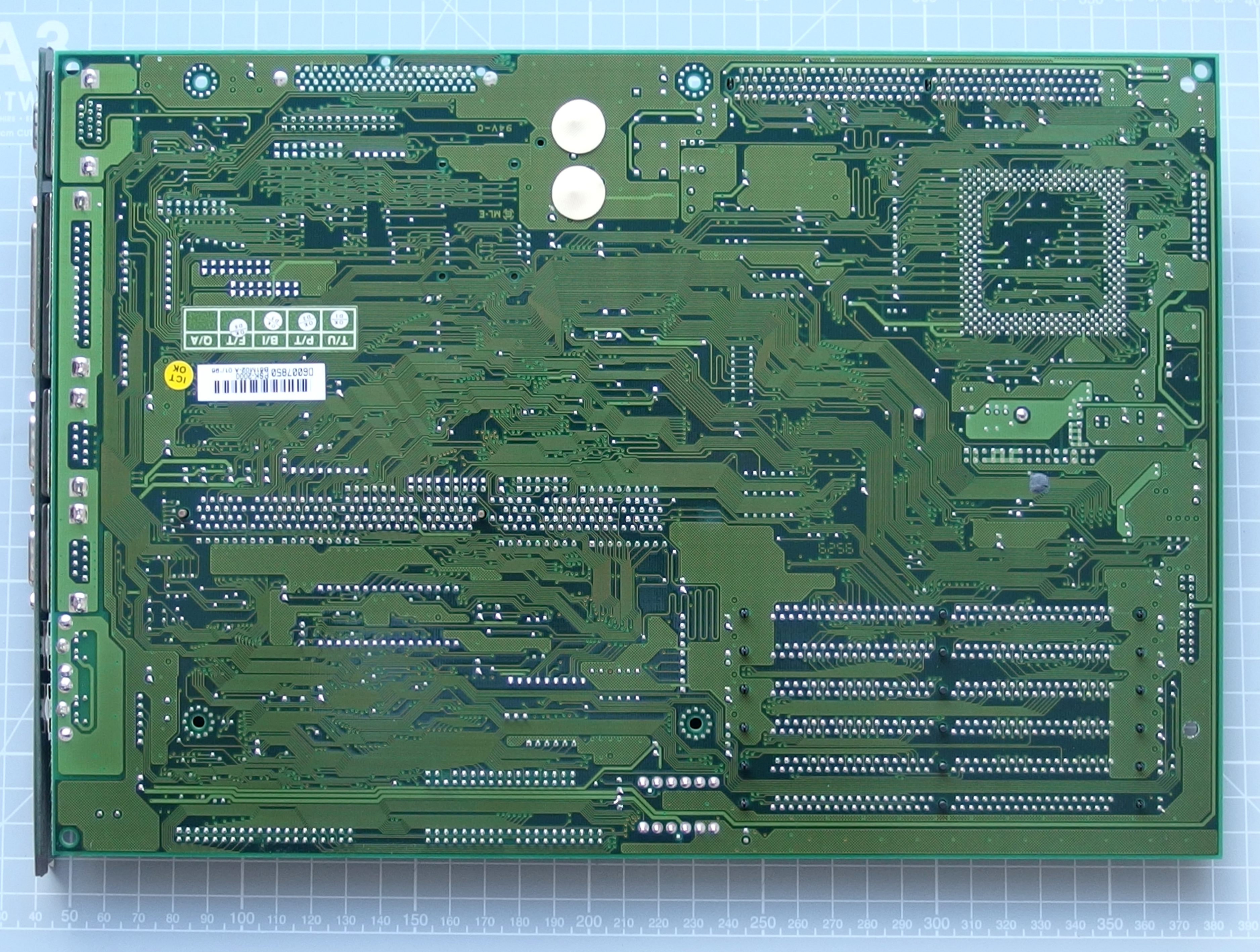

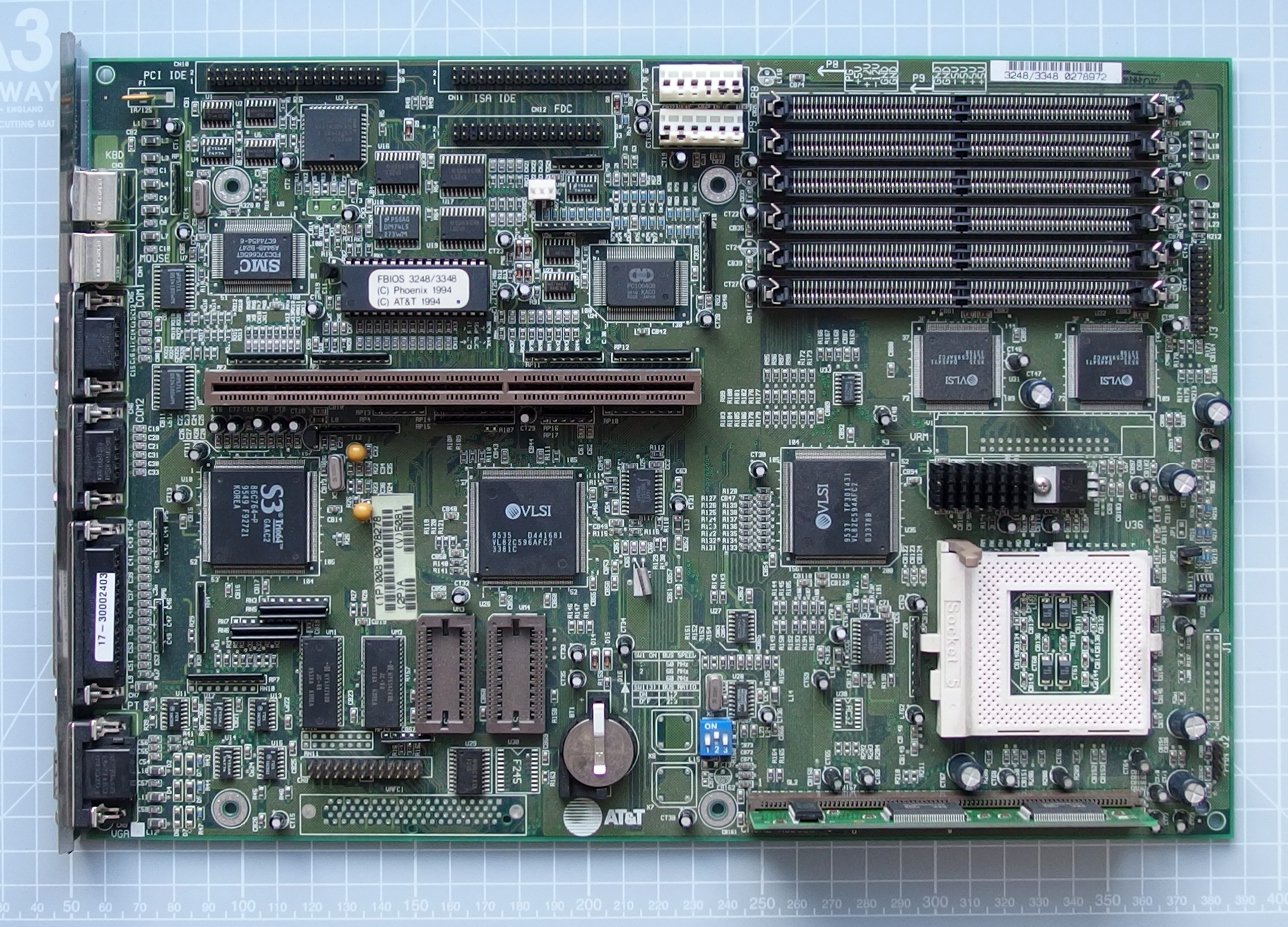

Image 1 of 4 (targeted)
Image 2 of 4 (targeted)
Image 3 of 4 (targeted)
Image 4 of 4 (targeted)
