ASUS TX97-N
Chipset
Socket
FSB speeds 50MHz60MHz66MHz75MHz83MHz
Form factorNLX (max 229 x 345 mm)
Dimensions254mm x 218mm
Max VRAM size2MB
Cache
512KB
Max RAM size
256MB
RAM types SDR UDIMM168-pin EDO UDIMMSDR UDIMM ECC
PSU connector
Empty
I/O ports1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
2x
USB 1.x
1x
VGA
Expansion slotsEmpty
Known issues
- Expansion slots are on proprietary riser
The listed slots are on the riser card that came with the motherboard.
If you have this board make sure you have the riser for it.
Notes
USB, ISA, PCI, Floppy and second IDE ports on NLX riser card
Last updated 2025-07-24T16:49:52Z
Board info score is 8.4/10
Chips
-> Chipset part
-> Audio
-> Video
3 BIOS files available
Award - 3 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
08/18/98-82430TX-<TX97-N>C-00
Note
Latest BIOS
Core version
4.51PG
BIOS version
Logs
8 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
3.00
OS support
OS/2 Warp 3.x
Windows NT 3.5x
Windows NT 4.0
Arch
x86
Size
1.2MB
Filename
Name
Version
3.7B / 3.7D
OS support
MS-DOS
NetWare Server 3
NetWare Server 4
OS/2 Warp 3.x
Windows 3.1x
Windows 9x
Windows NT 3.5x
Arch
x86
Size
1.6MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000
Windows 9x
Windows XP/2k3
Arch
x86
Size
2.2MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Arch
Size
Filename
2 board documents available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2004-02-18
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
1998-01
File
Logs

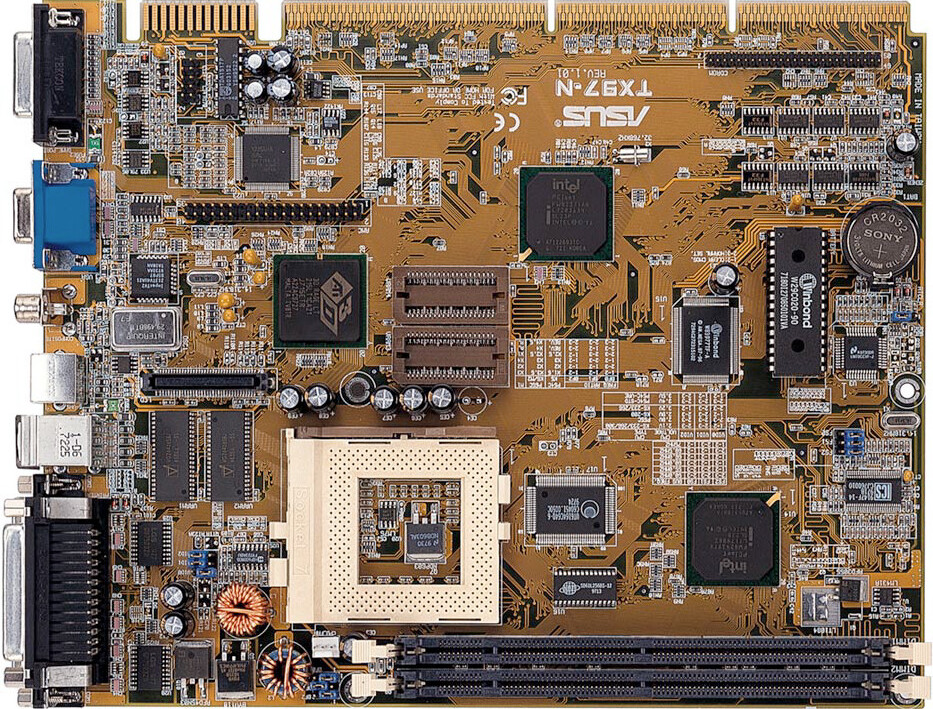

Image 1 of 2 (Microhouse)
Image 2 of 2
