ASUS TX97-L
Chipset
Socket
FSB speeds 50MHz60MHz66MHz75MHz83MHz
Form factorBaby AT (max 220 x 330 mm)
Dimensions254mm x 218mm
Cache
512KB
Max RAM size
256MB
RAM types SDR UDIMM168-pin EDO UDIMMSDR UDIMM ECC
PSU connector
I/O ports1x
AT Keyboard
1x
Floppy interface
2x
IDE interface
1x
PS/2 mouse
1x
Parallel
2x
Serial
2x
USB 1.x
Expansion slots3x
16-bit ISA
4x
32-bit PCI
Known issues
- Inadequate Power Delivery
This motherboard may have insufficient power delivery, which can lead to unstable or unsafe operation. In extreme cases, this may result in hardware damage, spontaneous combustion, or other electrical failures. Users should exercise caution and consider upgrading the motherboard power supply or other components to ensure safe and stable operation. The RetroWeb community may also provide guidance and assistance in mitigating this issue.
Last updated 2025-08-03T14:01:36Z
Board info score is 9.3/10
Chips
-> Chipset part
1 BIOS file available
Award - 1 entry
POST string
Note
Core Ver.
BIOS Ver.
Logs
6 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
3.00
OS support
OS/2 Warp 3.x
Windows NT 3.5x
Windows NT 4.0
Arch
x86
Size
1.2MB
Filename
Name
Version
3.7B / 3.7D
OS support
MS-DOS
NetWare Server 3
NetWare Server 4
OS/2 Warp 3.x
Windows 3.1x
Windows 9x
Windows NT 3.5x
Arch
x86
Size
1.6MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000
Windows 9x
Windows XP/2k3
Arch
x86
Size
2.2MB
Filename
Version
OS support
Arch
Size
Filename
3 board documents available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
1998-01
File
Logs

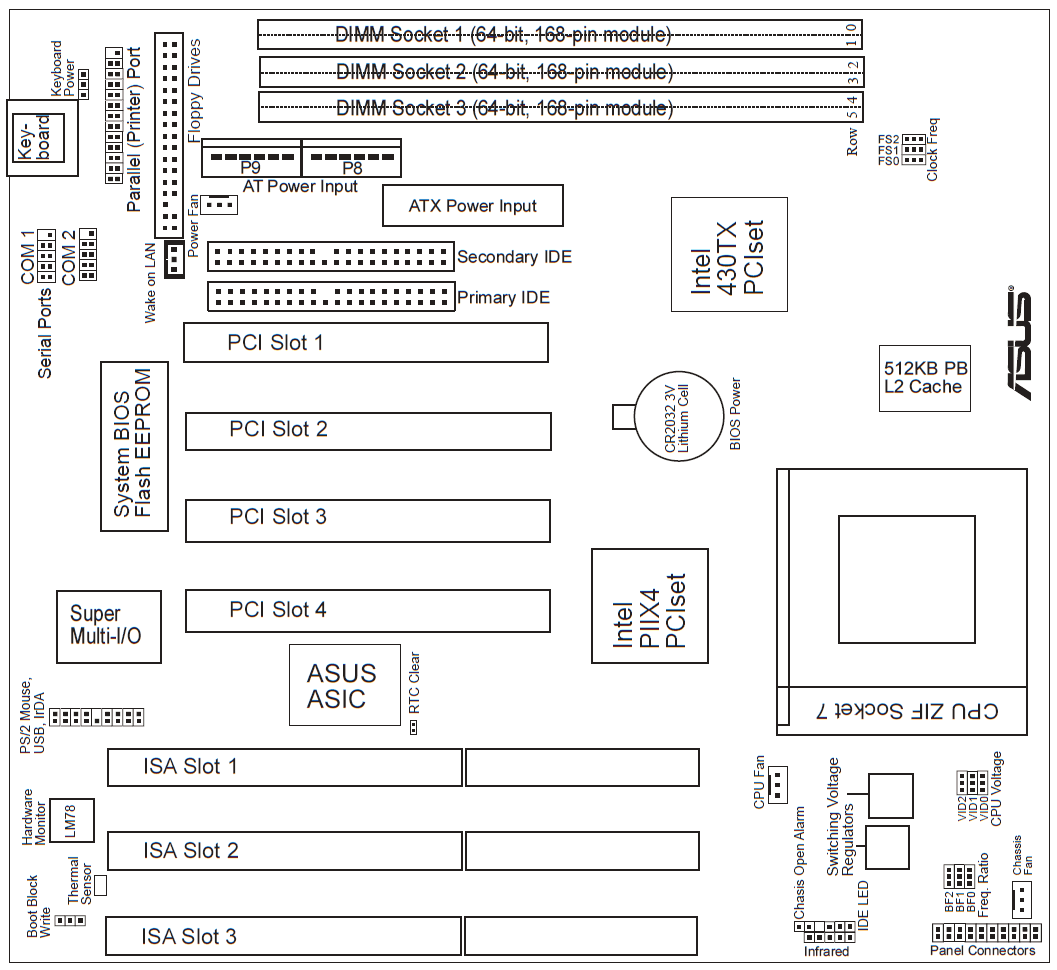

Image 1 of 3 (ASUS)

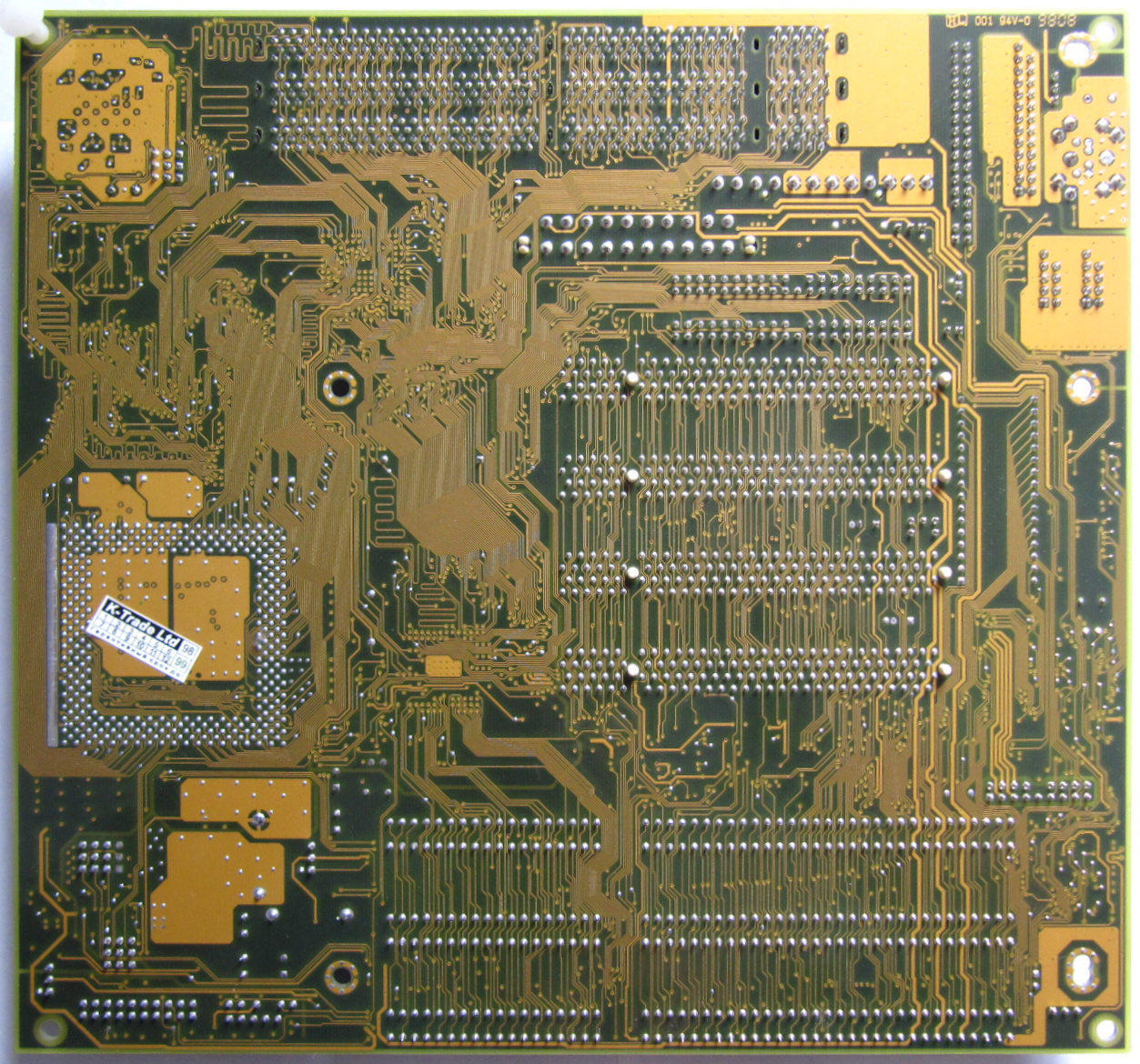

Image 2 of 3 (WDKeeper)

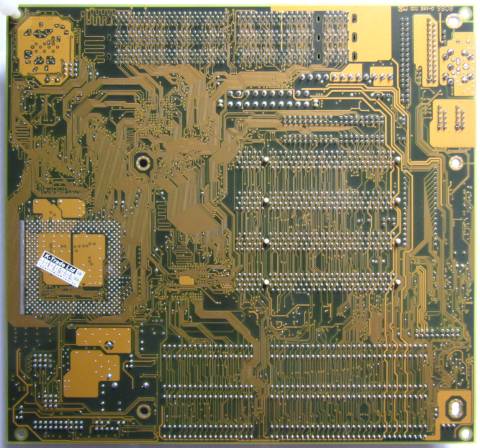

Image 3 of 3 (WDKeeper)
