ASUS Rampage III Formula
Logs
chipChipset
cpuSocket
Socket B (LGA1366)
speedFSB speeds
2400 MHz3200 MHz
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 244mm
chipCache
None/Integrated in the CPU
ramMax RAM size
24 GB
ramRAM type
DDR3 UDIMM
pwrPSU connector
Molex (4-pin) ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS)

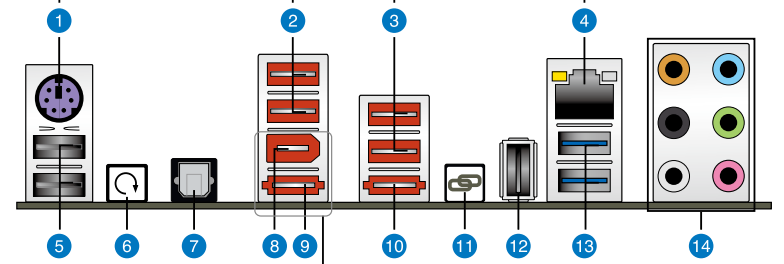

connI/O ports
1x
3.5mm Audio Combo
2x
FireWire 400
1x
PS/2 keyboard
1x
RJ-45 LAN
6x
SATA II
2x
SATA III
1x
Toslink
12x
USB 2.0
2x
USB 3.0
2x
eSATA II
cardExpansion slots
1x
32-bit PCI
2x
PCIe x1
3x
PCIe x16
notes Notes

PCIe supports either x16/x16/x16 or x16/x8/x8 modes

Last updated 2025-06-06T21:32:49Z
Board info score is 9.6/10
bios 6 BIOS files available

vendor AMI - 6 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
65-0903-000001-00101111-092011-TYLERSBUR-A1676000
Note
Core version
080015
BIOS version
Logs
POST string
65-0801-000001-00101111-051111-TYLERSBUR-A1676000
Note
Core version
080015
BIOS version
Logs
POST string
65-0702-000001-00101111-032811-TYLERSBUR-A1676000
Note
Core version
080015
BIOS version
Logs
POST string
65-0701-000001-00101111-031511-TYLERSBUR-A1676000
Note
Core version
080015
BIOS version
Logs
POST string
65-0505-000001-00101111-092110-TYLERSBUR-A1676000
Note
Core version
080015
BIOS version
Logs
POST string
65-0402-000001-00101111-081310-TYLERSBUR-A1676000
Note
Core version
080015
BIOS version
Logs
drv 3 drivers available
Name
Version
Arch
OS support
Size
Filename
Name
Version
9.1.2.1007
Arch
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Size
2.4MB
Filename
Name
Version
R1.17.39
Arch
x86 , x86-64
OS support
Windows 2000 Windows Vista Windows XP/2k3
Size
3.8MB
Filename
Name
Version
R2.74
Arch
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Size
30.7MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2008-10
File
Logs
Chip
Release date
2013-09
File
Logs
Chip
Release date
2008-07
File
Logs
Chip
Release date
2006-02-06
File
Logs
Chip
Release date
2008-11-14
File
Logs
Family
Release date
File
Logs
Family
Release date
2008-08-12
File
Logs
Family
Release date
2008-08-12
File
Logs
Family
Release date
File
Logs
Family
Release date
2010-02
File
Logs
Family
Release date
2010-07
File
Logs
Family
Release date
2011-05
File
Logs
Family
Release date
2017-01
File
Logs
Socket
Release date
File
Logs
Socket
Release date
2004
File
Logs

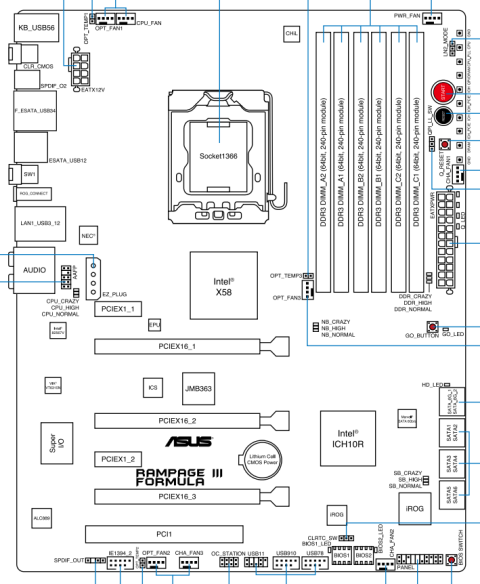

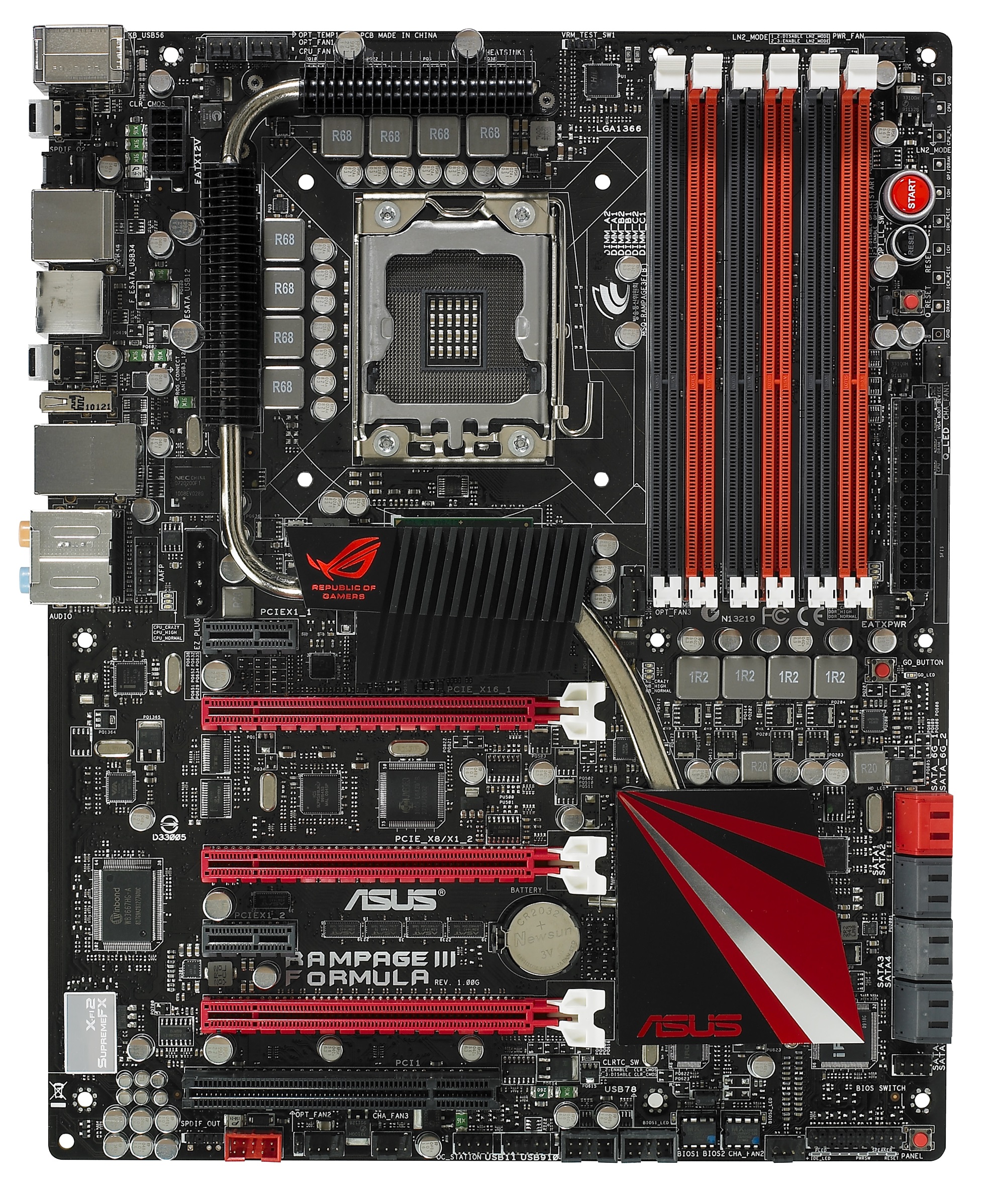

image1 Image 1 of 3 (ASUS)
image2 Image 2 of 3 (ASUS)
image3 Image 3 of 3 (ASUS)
