ASUS Rampage II Extreme
Logs
chipChipset
cpuSocket
Socket B (LGA1366)
speedFSB speeds
2400 MHz3200 MHz
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 269mm
chipCache
None/Integrated in the CPU
ramMax RAM size
12 GB
ramRAM type
DDR3 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS)
connI/O ports
2x
FireWire 400
1x
Floppy interface
1x
IDE interface
1x
PS/2 keyboard
2x
RJ-45 LAN
7x
SATA II
12x
USB 2.0
1x
eSATA II
cardExpansion slots
1x
32-bit PCI
2x
PCIe x1
3x
PCIe x16
notes Notes

PCIe supports either x16/x8/x8 or dual x16 modes

Supports 3-Way SLI and ATI CrossfireX

Last updated 2025-06-06T21:33:33Z
Board info score is 9.6/10
bios 18 BIOS files available

vendor AMI - 18 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
65-2101-000001-00101111-091911-TYLERSBUR-A1088000
Note
Core version
080015
BIOS version
Logs
POST string
65-2002-000001-00101111-050511-TYLERSBUR-A1088000
Note
Core version
080015
BIOS version
Logs
POST string
65-1914-000001-00101111-092110-TYLERSBUR-A1088000
Note
Core version
080015
BIOS version
Logs
POST string
65-1802-000001-00101111-012810-TYLERSBUR-A1088000
Note
Core version
080015
BIOS version
Logs
POST string
65-1704-000001-00101111-123009-TYLERSBUR-A1088000
Note
Core version
080015
BIOS version
Logs
POST string
65-1504-000001-00101111-072309-TYLERSBUR-A1088000
Note
Core version
080015
BIOS version
Logs
POST string
65-1406-000001-00101111-060109-TYLERSBUR-A1088000
Note
Core version
080015
BIOS version
Logs
POST string
65-1306-000001-00101111-040909-TYLERSBUR-A1088000
Note
Core version
080015
BIOS version
Logs
POST string
65-1204-000001-00101111-031109-TYLERSBUR-A1088000
Note
Core version
080015
BIOS version
Logs
POST string
65-1104-000001-00101111-020609-TYLERSBUR-A1088000
Note
Core version
080015
BIOS version
Logs
POST string
65-1001-000001-00101111-011409-TYLERSBUR-A1088000
Note
Core version
080015
BIOS version
Logs
POST string
65-0903-000001-00101111-123108-TYLERSBUR-A1088000
Note
Core version
080015
BIOS version
Logs
POST string
65-0805-000001-00101111-120908-TYLERSBUR-A1088000
Note
Core version
080015
BIOS version
Logs
POST string
65-0804-000001-00101111-120508-TYLERSBUR-A1088000
Note
Core version
080015
BIOS version
Logs
POST string
65-0705-000001-00101111-112108-TYLERSBUR-A1088000
Note
Core version
080015
BIOS version
Logs
POST string
65-0602-000001-00101111-110708-TYLERSBUR-A1088000
Note
Core version
080015
BIOS version
Logs
POST string
65-0503-000001-00101111-103008-TYLERSBUR-A1088000
Note
Core version
080015
BIOS version
Logs
POST string
65-0407-000001-00101111-102008-TYLERSBUR-A1088000
Note
Core version
080015
BIOS version
Logs
drv 3 drivers available
Name
Version
Arch
OS support
Size
Filename
Name
Version
9.1.2.1007
Arch
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Size
2.4MB
Filename
Name
Version
R1.17.39
Arch
x86 , x86-64
OS support
Windows 2000 Windows Vista Windows XP/2k3
Size
3.8MB
Filename
Name
Version
11.45.4.3
Arch
x86 , x86-64
OS support
Windows 7 Windows 8.x Windows Vista Windows XP/2k3
Size
1.8MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2008-10
File
Logs
Chip
Release date
2013-09
File
Logs
Chip
Release date
2008-07
File
Logs
Chip
Release date
2006-02-06
File
Logs
Chip
Release date
2008-11-28
File
Logs
Family
Release date
File
Logs
Family
Release date
2008-08-12
File
Logs
Family
Release date
2008-08-12
File
Logs
Family
Release date
File
Logs
Family
Release date
2010-02
File
Logs
Family
Release date
2010-07
File
Logs
Family
Release date
2011-05
File
Logs
Family
Release date
2017-01
File
Logs
Socket
Release date
File
Logs
Socket
Release date
2004
File
Logs

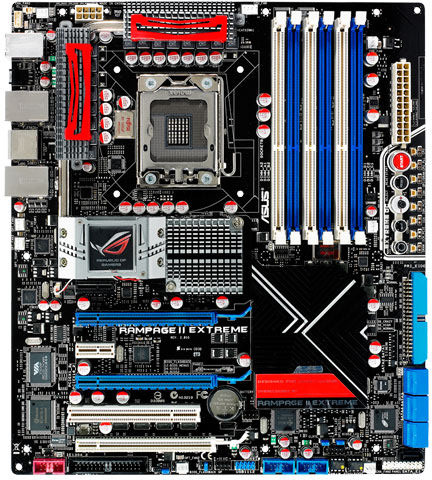

image1 Image 1 of 3 (ASUS)
image2 Image 2 of 3 (ASUS)
image3 Image 3 of 3 (ASUS)
