ASUS PTGD1-LA (OEM) R1.06
Logs
chipChipset
cpuSocket
Socket T (LGA775)
speedFSB speeds
533MHz667MHz800MHz
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
244mm x 244mm
chipCache
None/Integrated in the CPU
ramMax RAM size
4GB
ramRAM type
DDR UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX) ATX P4 connector 12v (4-pin P4)
tag Also known as
connI/O ports
1x
3.5mm Audio Combo
2x
FireWire 400
1x
Floppy interface
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
1x
S/PDIF
4x
SATA I
8x
USB 2.0
cardExpansion slots
3x
32-bit PCI
1x
PCIe x16
notes Notes

Used in: HP Media Center several models

Last updated 2024-10-22T16:48:37Z
Board info score is 9/10
bios 2 BIOS files available

vendor AMI - 2 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
63-0328-000000-00101111-012306-I915-A0005102
Note
Core version
080011
BIOS version
Logs
POST string
63-0318-000000-00101111-021605-I915-A0005074
Note
Core version
080011
BIOS version
Logs
drv 5 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename
Name
Version
1.0
OS support
MS-DOS Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
Size
490.9KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
Size
Empty
Filename
Version
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
2.4MB
Filename
Version
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
x86
Size
Empty
Filename
doc 2 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
2006-03-06
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2005-09-01
File
Logs
Chip
Release date
2005-01
File
Logs
Chip
Release date
2007-11
File
Logs
Chip
Release date
2004-10
File
Logs
Chip
Release date
2005
File
Logs
Chip
Release date
2003-05-28
File
Logs
Chip
Release date
2002-10-01
File
Logs
Family
Release date
File
Logs
Family
Release date
2001-02
File
Logs
Family
Release date
File
Logs
Family
Release date
2005-02
File
Logs
Family
Release date
2005-05
File
Logs
Family
Release date
2004-02
File
Logs
Family
Release date
File
Logs
Family
Release date
2001-10
File
Logs
Family
Release date
2002-05
File
Logs
Family
Release date
File
Logs
Socket
Release date
File
Logs
Socket
Release date
2006-02
File
Logs
Socket
Release date
2004
File
Logs

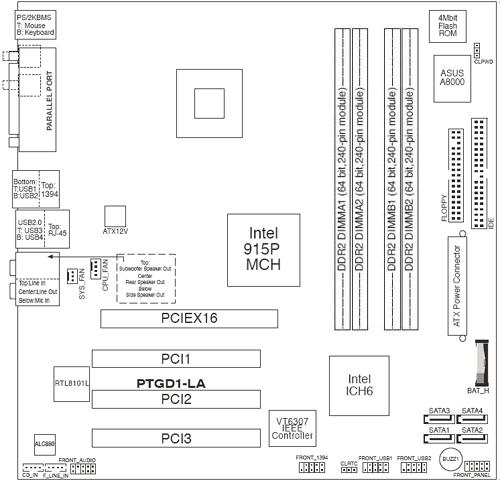

image1 Image 1 of 3 (evasive)

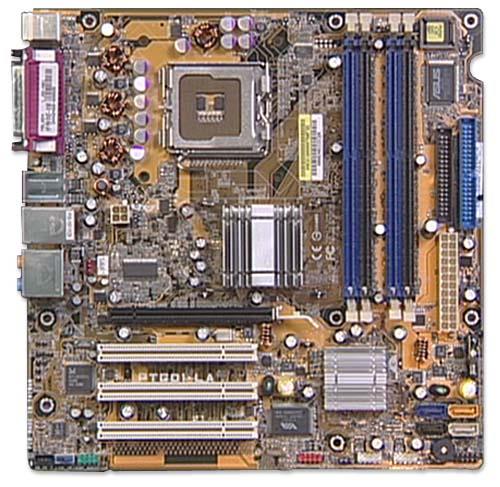

image2 Image 2 of 3

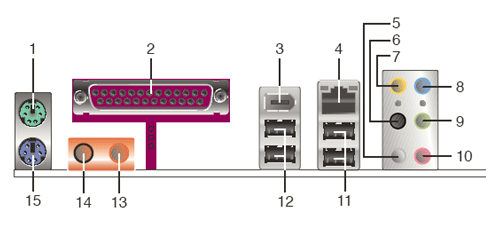

image3 Image 3 of 3 (ASUS)
