ASUS P9D-M
Chipset
Socket
FSB speed Empty
Form factormicroATX (max 244 x 244 mm)
Dimensions244mm x 244mm
Cache
None/Integrated in the CPU
Max RAM size
32GB
RAM type DDR3 UDIMM ECC
PSU connector
I/O ports1x
PS/2 KB+MS Combo
3x
RJ-45 LAN
2x
SATA II
4x
SATA III
2x
Serial
5x
USB 2.0
4x
USB 3.0
1x
VGA
Expansion slots1x
PCIe x16 @ x8
3x
PCIe x8 @ x4
Notes
2x Intel I210AT LAN and 1x Management LAN port
Last updated 2024-07-27T14:32:59Z
Board info score is 8.4/10
Chips
-> Chipset part
-> Network
-> Remote Management Processor
12 BIOS files available
AMI - 12 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
No drivers available
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2013-06
File
Logs
Chip
Release date
2014-05
File
Logs
Chip
Release date
2020-01
File
Logs
Chip
Release date
2013-12
File
Logs
Chip
Release date
2022-01
File
Logs
Family
Release date
File
Logs
Family
Release date
2013-12
File
Logs
Family
Release date
2013-12
File
Logs
Family
Release date
2013-12
File
Logs
Family
Release date
2015-03
File
Logs
Family
Release date
2015-03
File
Logs
Family
Release date
2015-03
File
Logs
Family
Release date
2013-12
File
Logs
Family
Release date
2013-12
File
Logs
Family
Release date
2013-12
File
Logs
Family
Release date
2014-07
File
Logs
Family
Release date
2014-07
File
Logs
Family
Release date
2014-07
File
Logs
Family
Release date
2015-10
File
Logs
Family
Release date
2015-10
File
Logs
Family
Release date
2015-10
File
Logs
Family
Release date
2013-12
File
Logs
Family
Release date
2013-12
File
Logs
Family
Release date
2013-12
File
Logs
Family
Release date
2013-06-03
File
Logs
2 other files available
Title
File
Logs

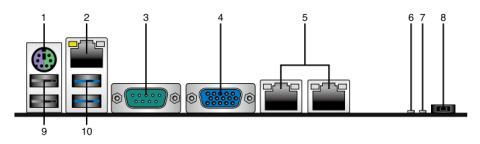

Image 1 of 3 (ASUS)

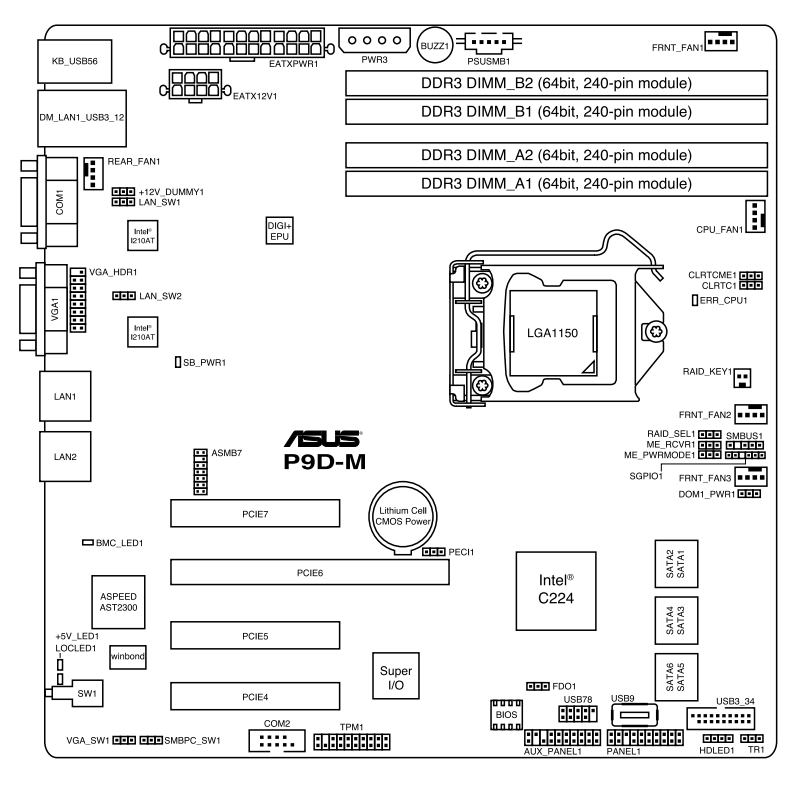

Image 2 of 3 (ASUS)

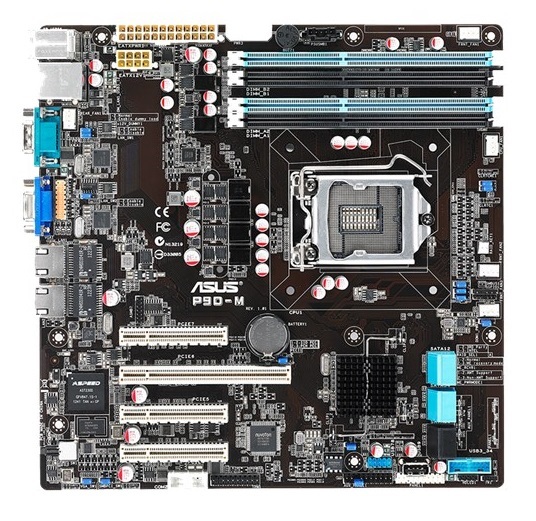

Image 3 of 3 (ASUS)
