ASUS P9D-I
Logs
chipChipset
cpuSocket
Socket H3 (LGA1150)
speedFSB speed
Empty
moboForm factor
Mini ITX (max 170 x 170 mm)
dimDimensions
170mm x 170mm
chipCache
None/Integrated in the CPU
ramMax RAM size
16GB
ramRAM type
DDR3 UDIMM ECC
pwrPSU connector
ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)
connI/O ports
1x
DVI
1x
PS/2 KB+MS Combo
2x
RJ-45 LAN
2x
SATA II
2x
SATA III
1x
Serial
4x
USB 2.0
2x
USB 3.0
cardExpansion slots
1x
PCIe x16
Last updated 2024-07-27T13:00:08Z
Board info score is 8/10
bios 10 BIOS files available

vendor AMI - 10 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
63-0100-000001-00101111-011113-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-011113-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-011113-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-011113-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-011113-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-011113-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-011113-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-011113-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-011113-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-011113-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
drv No drivers available
doc No board documents available
Chip
Release date
File
Logs
Chip
Release date
2013-06
File
Logs
Chip
Release date
2014-05
File
Logs
Chip
Release date
2020-01
File
Logs
Chip
Release date
2021-01
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2013-12
File
Logs
Chip
Release date
2022-01
File
Logs
Family
Release date
File
Logs
Family
Release date
2013-12
File
Logs
Family
Release date
2013-12
File
Logs
Family
Release date
2013-12
File
Logs
Family
Release date
2015-03
File
Logs
Family
Release date
2015-03
File
Logs
Family
Release date
2015-03
File
Logs
Family
Release date
2013-12
File
Logs
Family
Release date
2013-12
File
Logs
Family
Release date
2013-12
File
Logs
Family
Release date
2014-07
File
Logs
Family
Release date
2014-07
File
Logs
Family
Release date
2014-07
File
Logs
Family
Release date
2015-10
File
Logs
Family
Release date
2015-10
File
Logs
Family
Release date
2015-10
File
Logs
Family
Release date
2013-12
File
Logs
Family
Release date
2013-12
File
Logs
Family
Release date
2013-12
File
Logs
Family
Release date
2013-06-03
File
Logs

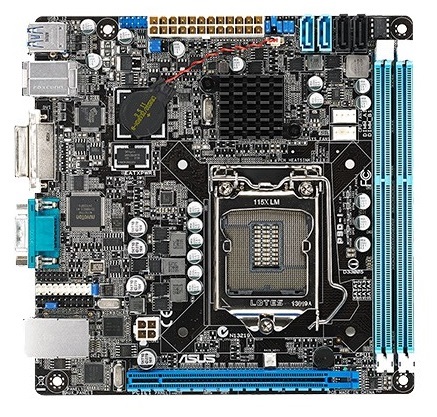

image1 Image 1 of 3 (ASUS)

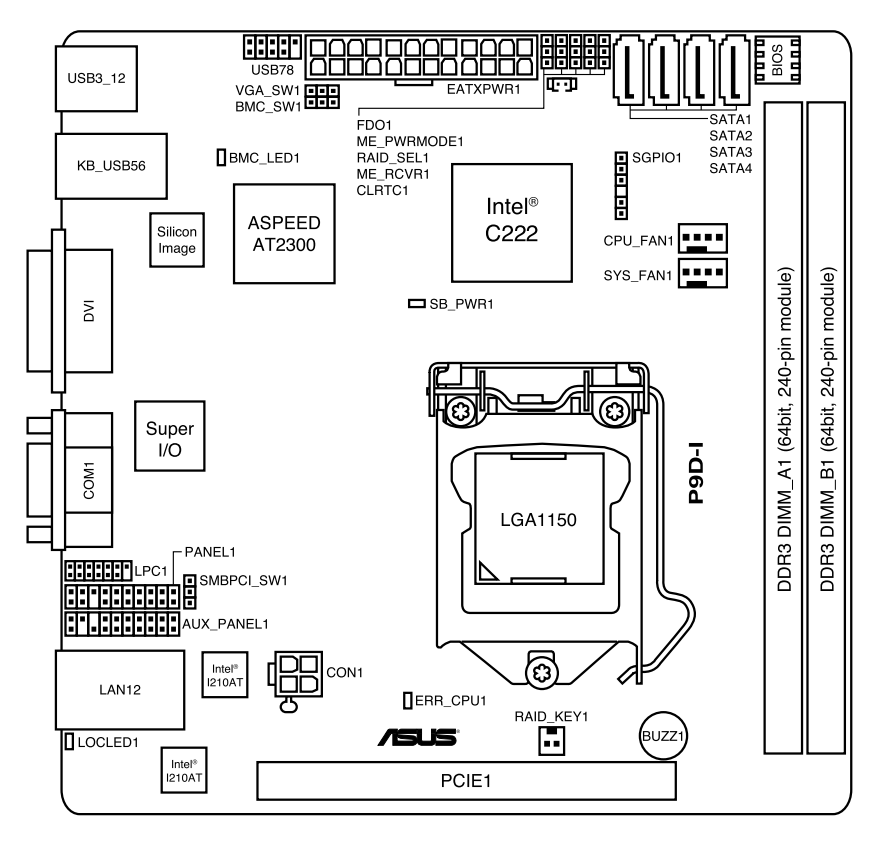

image2 Image 2 of 3 (ASUS)

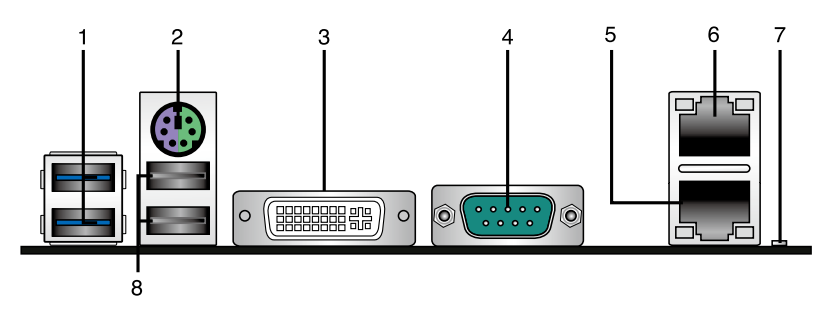

image3 Image 3 of 3 (ASUS)
