ASUS P7P55D (Rev. 1.02G)
Logs
chipChipset
cpuSocket
Socket H (LGA1156)
speedFSB speed
Empty
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 244mm
chipCache
None/Integrated in the CPU
ramMax RAM size
16GB
ramRAM type
DDR3 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS)
connI/O ports
1x
3.5mm Audio Combo
2x
FireWire 400
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
RJ-45 LAN
1x
S/PDIF
7x
SATA II
1x
Serial
1x
Toslink
14x
USB 2.0
1x
eSATA II
cardExpansion slots
3x
32-bit PCI
2x
PCIe x1
1x
PCIe x16
1x
PCIe x16 @ x4
Last updated 2024-10-27T01:06:15Z
Board info score is 8.6/10
bios 15 BIOS files available

vendor AMI - 15 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
65-2101-000001-00101111-102011-P55-A1326001
Note
Core version
080015
BIOS version
Logs
POST string
65-2003-000001-00101111-121410-P55-A1326001
Note
Core version
080015
BIOS version
Logs
POST string
65-1807-000001-00101111-072210-P55-A1326001
Note
Core version
080015
BIOS version
Logs
POST string
65-1702-000001-00101111-052110-P55-A1326001
Note
Core version
080015
BIOS version
Logs
POST string
65-1610-000001-00101111-051110-P55-A1326001
Note
Core version
080015
BIOS version
Logs
POST string
65-1408-000001-00101111-032510-P55-A1326001
Note
Core version
080015
BIOS version
Logs
POST string
65-1307-000001-00101111-022310-P55-A1326001
Note
Core version
080015
BIOS version
Logs
POST string
65-1207-000001-00101111-120709-P55-A1326001
Note
Core version
080015
BIOS version
Logs
POST string
65-1102-000001-00101111-112309-P55-A1326001
Note
Core version
080015
BIOS version
Logs
POST string
65-1002-000001-00101111-111309-P55-A1326001
Note
Core version
080015
BIOS version
Logs
POST string
65-0915-000001-00101111-110909-P55-A1326001
Note
Core version
080015
BIOS version
Logs
POST string
65-0911-000001-00101111-102709-P55-A1326001
Note
Beta Version
Core version
080015
BIOS version
Logs
POST string
65-0711-000001-00101111-092409-P55-A1326001
Note
Core version
080015
BIOS version
Logs
POST string
65-0606-000001-00101111-090309-P55-A1326001
Note
Core version
080015
BIOS version
Logs
POST string
65-0501-000001-00101111-082109-P55-A1326001
Note
Core version
080015
BIOS version
Logs
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R1.17.39
OS support
Windows 2000 Windows Vista Windows XP/2k3
Arch
x86 , x86-64
Size
3.8MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2006-02-06
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2008-11-28
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2011-01
File
Logs
Family
Release date
2011-01
File
Logs
Family
Release date
2011-01
File
Logs
Family
Release date
2013-06
File
Logs
Family
Release date
2011-01
File
Logs
Family
Release date
2010-07
File
Logs
Family
Release date
2009-09
File
Logs
Family
Release date
2015-02
File
Logs
Family
Release date
2011-03
File
Logs

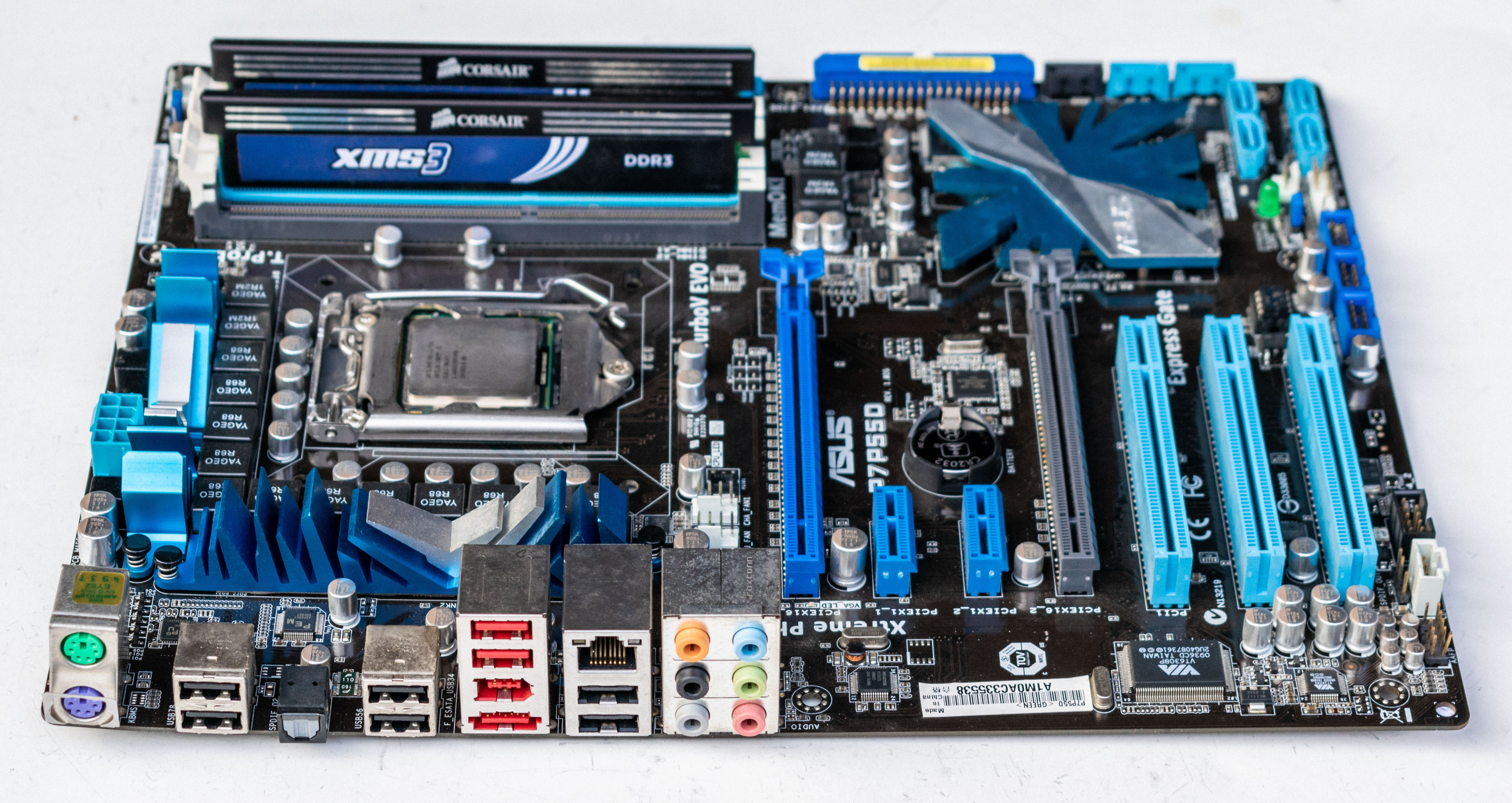

image1 Image 1 of 4 (ASUS)

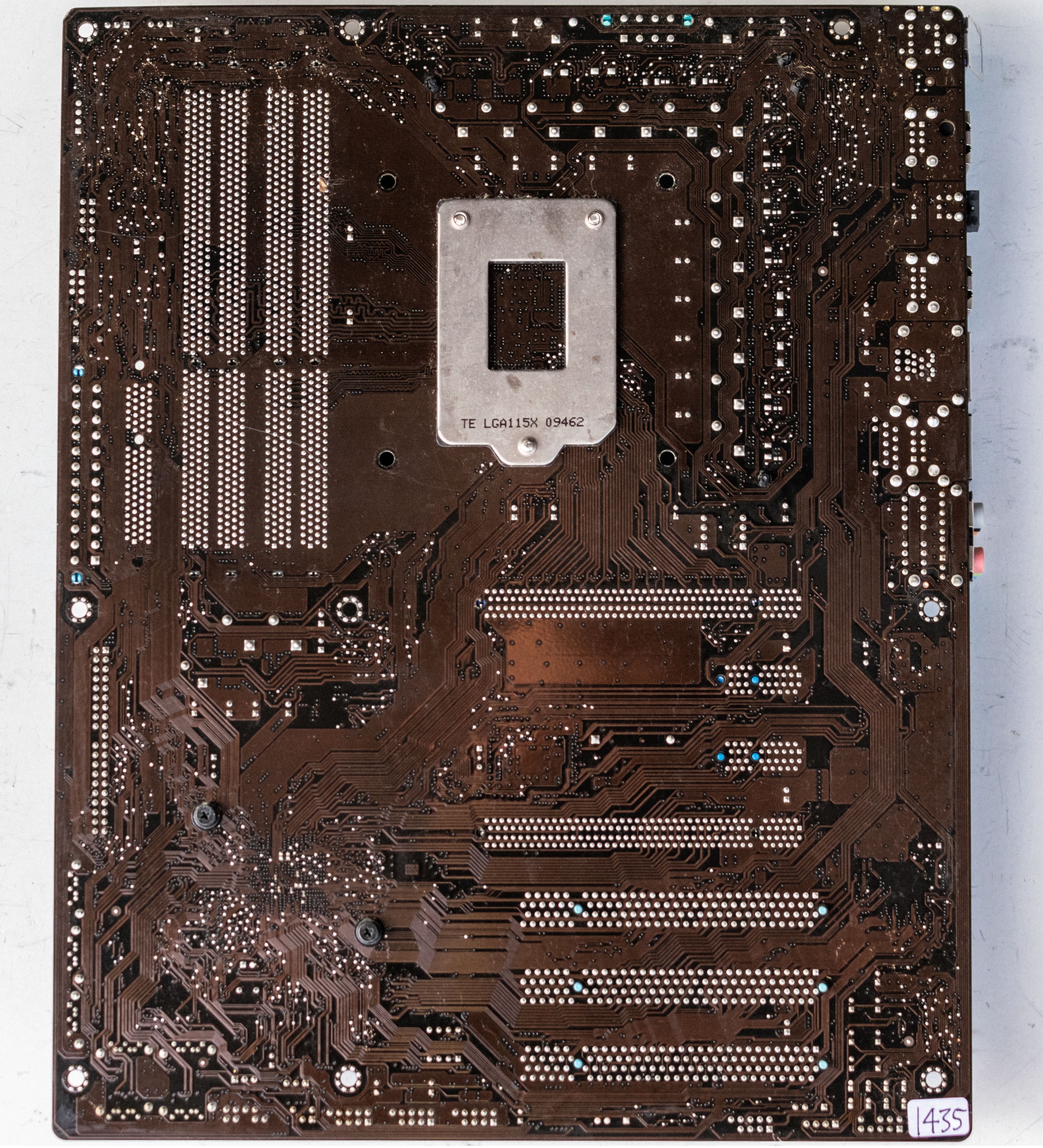

image2 Image 2 of 4 (Motherboard Continuum)

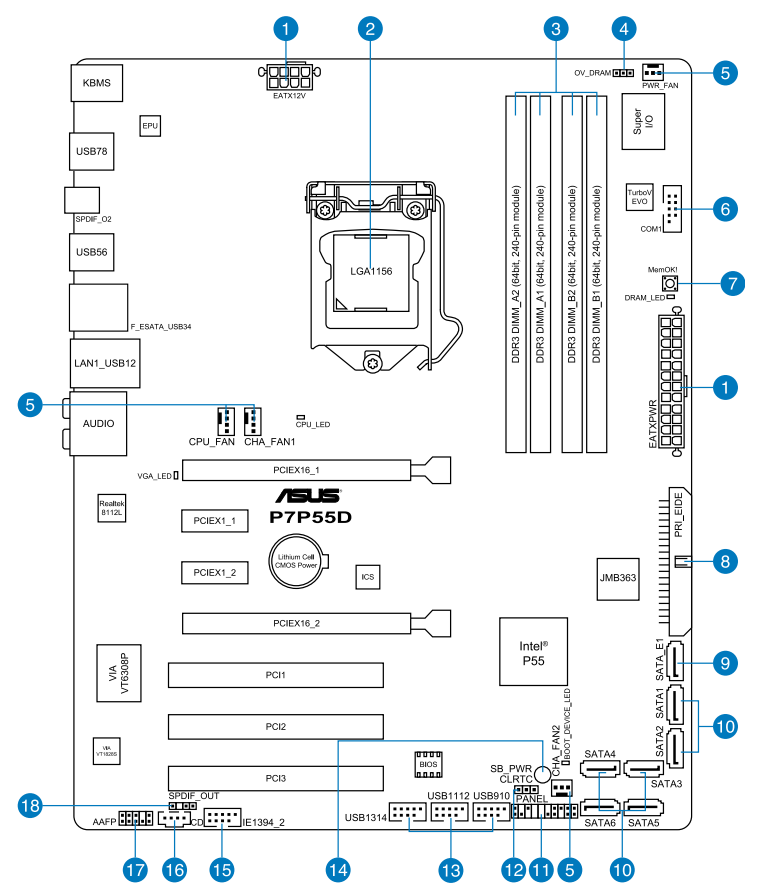

image3 Image 3 of 4 (Motherboard Continuum)

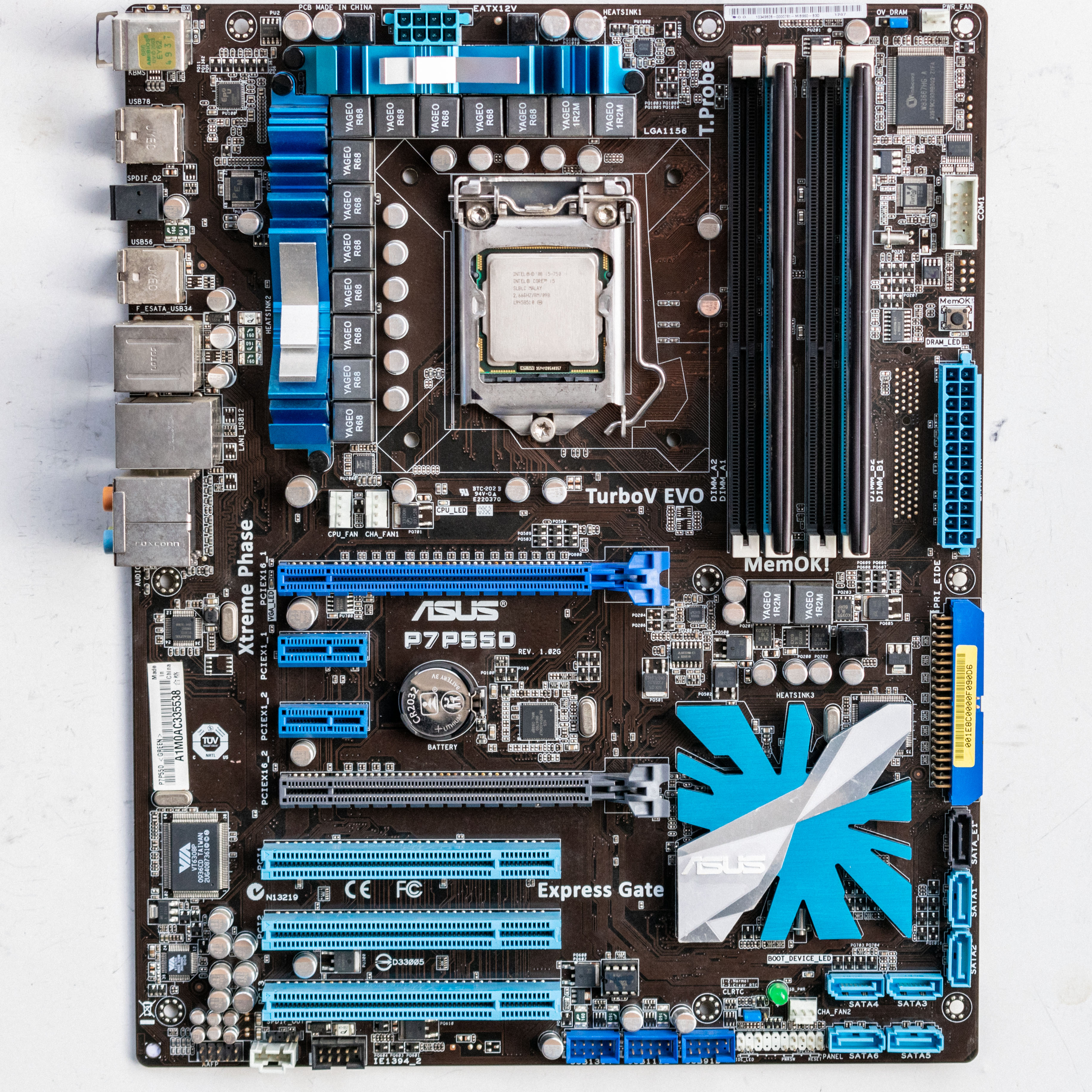

image4 Image 4 of 4 (Motherboard Continuum)
