ASUS P6T (Rev. 1.01G)
Logs
chipChipset
cpuSocket
Socket B (LGA1366)
speedFSB speeds
2400 MHz3200 MHz
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 244mm
chipCache
None/Integrated in the CPU
ramMax RAM size
12 GB(Official)48 GB(User reported)
ramRAM type
DDR3 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS)

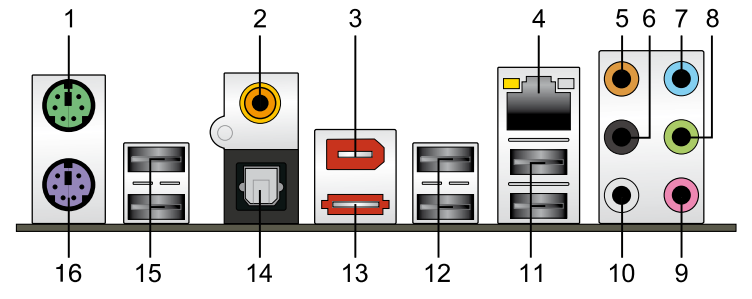

connI/O ports
1x
3.5mm Audio Combo
2x
FireWire 400
1x
Floppy interface
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
RJ-45 LAN
1x
S/PDIF
8x
SATA II
1x
Toslink
12x
USB 2.0
1x
eSATA II
cardExpansion slots
2x
32-bit PCI
1x
PCIe x1
2x
PCIe x16
1x
PCIe x16 @ x4
notes Notes

Supports Nvidia 3-Way SLI and ATI Quad CrossfireX. Reported to work with X5680 (6C12T 3.33GHz).

Last updated 2025-10-17T11:53:53Z
Board info score is 10/10
bios 14 BIOS files available

vendor AMI - 14 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
65-1408-000001-00101111-092110-TYLERSBUR-A1146001
Note
Core version
080015
BIOS version
Logs
POST string
65-1303-000001-00101111-030810-TYLERSBUR-A1146001
Note
Core version
080015
BIOS version
Logs
POST string
65-1201-000001-00101111-022410-TYLERSBUR-A1146001
Note
Core version
080015
BIOS version
Logs
POST string
65-1004-000001-00101111-123009-TYLERSBUR-A1146001
Note
Core version
080015
BIOS version
Logs
POST string
65-0904-000001-00101111-111209-TYLERSBUR-A1146001
Note
Core version
080015
BIOS version
Logs
POST string
65-0801-000001-00101111-090209-TYLERSBUR-A1146001
Note
Core version
080015
BIOS version
Logs
POST string
65-0707-000001-00101111-081809-TYLERSBUR-A1146001
Note
Core version
080015
BIOS version
Logs
POST string
65-0603-000001-00101111-051909-TYLERSBUR-A1146001
Note
Core version
080015
BIOS version
Logs
POST string
65-0507-000001-00101111-042809-TYLERSBUR-A1146001
Note
Core version
080015
BIOS version
Logs
POST string
65-0502-000001-00101111-032509-TYLERSBUR-A1146001
Note
Core version
080015
BIOS version
Logs
POST string
65-0403-000001-00101111-022609-TYLERSBUR-A1146001
Note
Core version
080015
BIOS version
Logs
POST string
65-0306-000001-00101111-020309-TYLERSBUR-A1146001
Note
Core version
080015
BIOS version
Logs
POST string
65-0202-000001-00101111-120408-TYLERSBUR-A1146001
Note
Core version
080015
BIOS version
Logs
POST string
65-0112-000001-00101111-112908-TYLERSBUR-A1146001
Note
Core version
080015
BIOS version
Logs
drv 2 drivers available
Name
Version
Arch
OS support
Size
Filename
Name
Version
9.1.2.1007
Arch
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Size
2.4MB
Filename
Name
Version
R1.17.39
Arch
x86 , x86-64
OS support
Windows 2000 Windows Vista Windows XP/2k3
Size
3.8MB
Filename
doc 3 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2018-07-26
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2008-10
File
Logs
Chip
Release date
2013-09
File
Logs
Chip
Release date
2008-07
File
Logs
Chip
Release date
2006-02-06
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2008-11-14
File
Logs
Family
Release date
File
Logs
Family
Release date
2008-08-12
File
Logs
Family
Release date
2008-08-12
File
Logs
Family
Release date
File
Logs
Family
Release date
2010-02
File
Logs
Family
Release date
2010-07
File
Logs
Family
Release date
2011-05
File
Logs
Family
Release date
2017-01
File
Logs
Socket
Release date
File
Logs
Socket
Release date
2004
File
Logs
image1 Image 1 of 5 (ASUS)

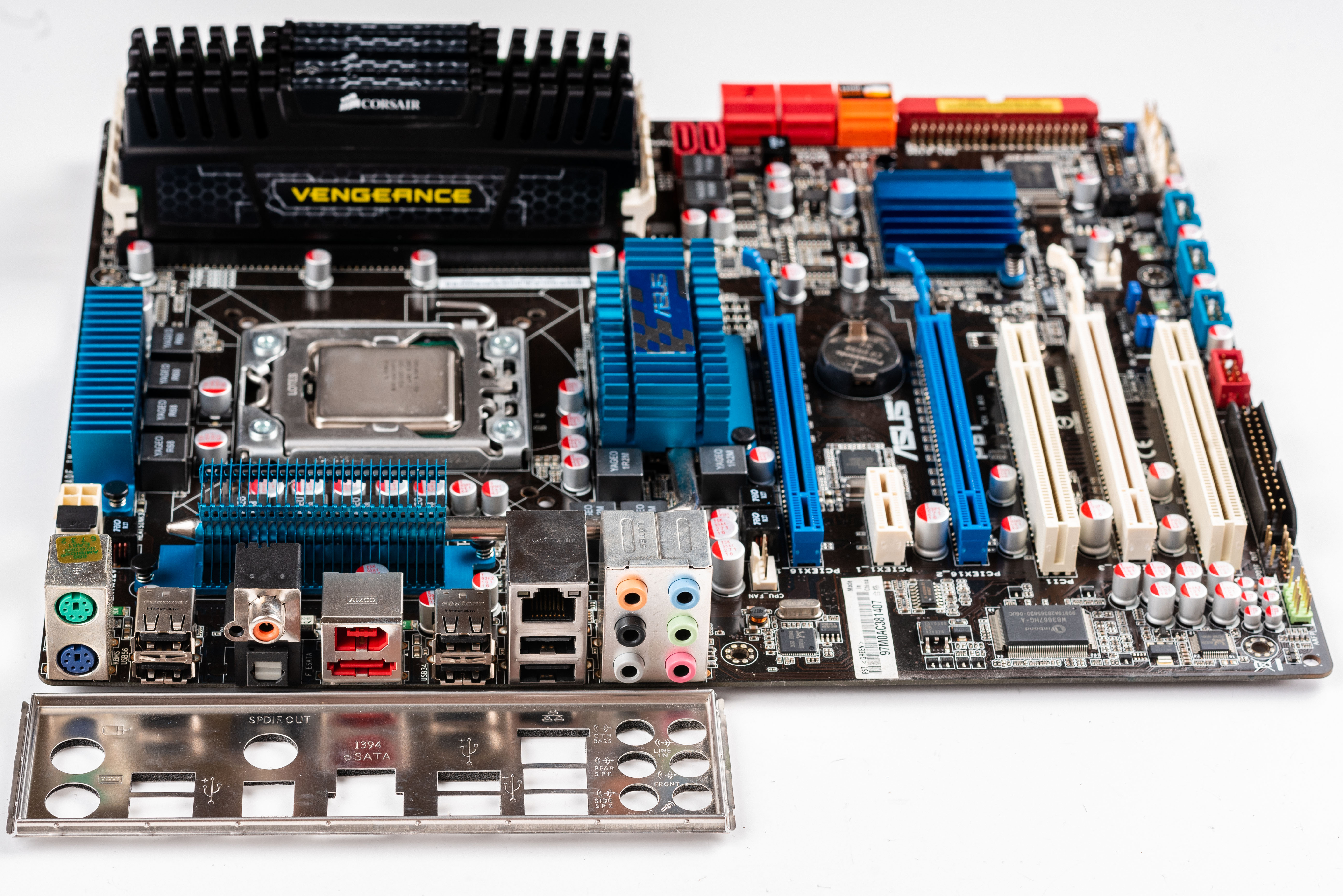

image2 Image 2 of 5 (Motherboard Continuum)

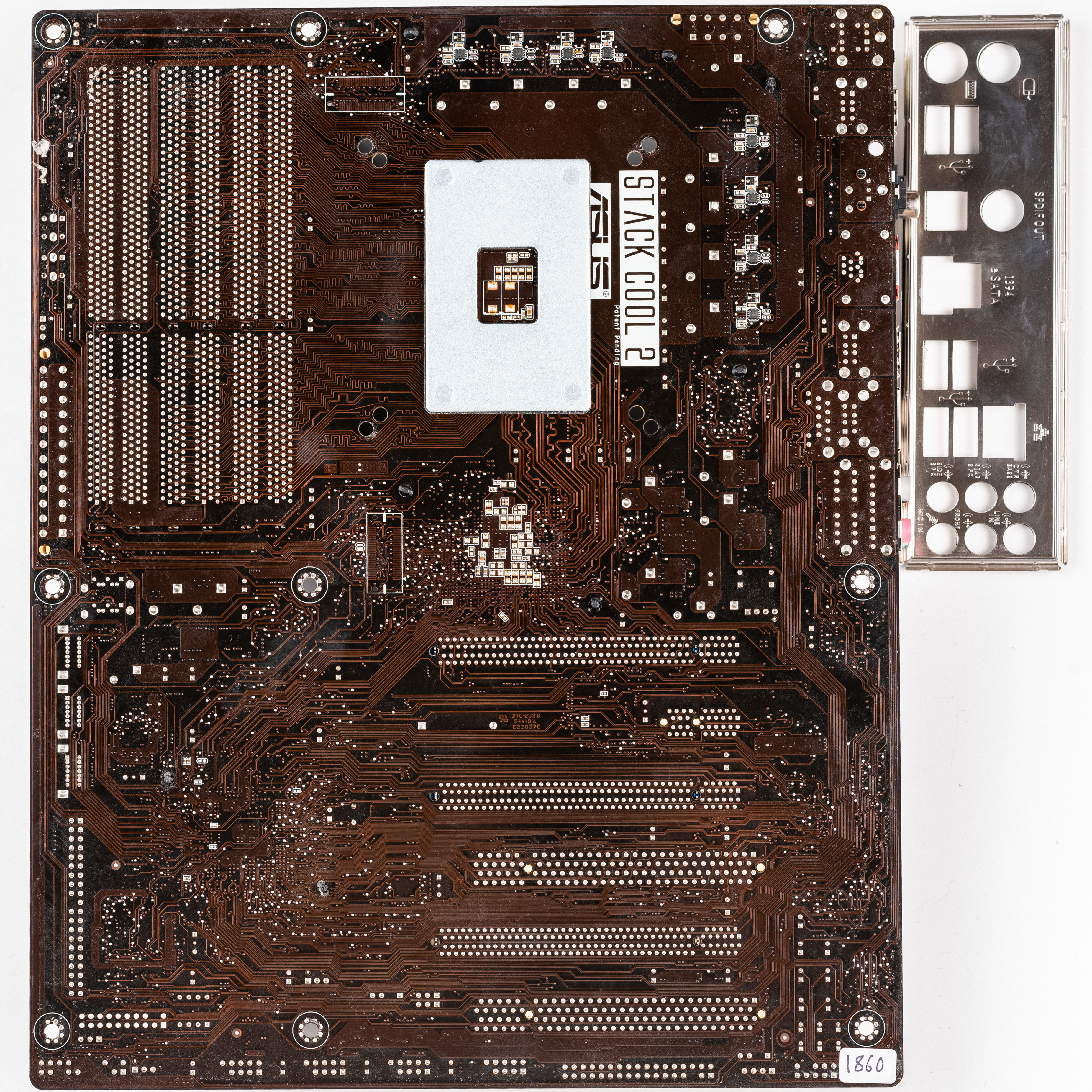

image3 Image 3 of 5 (Motherboard Continuum)
image4 Image 4 of 5 (Motherboard Continuum)
image5 Image 5 of 5 (ASUS)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
