ASUS P5PE-VM
Logs
chipChipset
cpuSocket
Socket T (LGA775)
speedFSB speeds
533MHz800MHz1066MHz
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
244mm x 200mm
chipCache
None/Integrated in the CPU
ramMax RAM size
2GB
ramRAM type
DDR UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX) ATX P4 connector 12v (4-pin P4)
tag Also known as

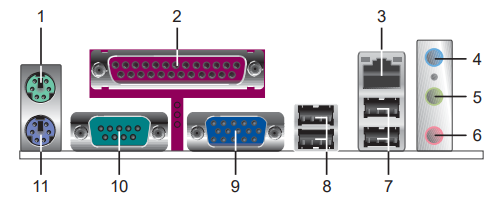

connI/O ports
1x
3.5mm Audio Combo
1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
2x
SATA I
1x
Serial
8x
USB 2.0
1x
VGA
cardExpansion slots
1x
1.5V AGP
3x
32-bit PCI
wrench Known issues
  • Faulty or Leaking Electrolytic Capacitors

Some motherboards may contain faulty or leaking electrolytic capacitors, which can negatively impact system performance or stability. These capacitors may exhibit issues such as bulging, leaking, or even exploding, potentially damaging other components on the motherboard. Users should inspect their capacitors regularly and replace any that are faulty or leaking to avoid damage or system instability.

notes Notes

  • Unofficially works with Core 2 Quad (Kentsfield).

  • Wolfdale support with unoffcial BIOS.

  • 1066MHz FSB support via OC of the chipset and only with AGP GPU.

  • IBM ThinkCentre A50 (type 8084, 8085, 8126, 8147, 8148, 8149, 8174, 8175, 8176, 8177, 8178)

Last updated 2025-12-13T10:06:53Z
Board info score is 9.8/10
bios 16 BIOS files available

vendor AMI - 16 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
63-1501-000036-00101111-122607-I865G-A0551036
Note
Core version
080011
BIOS version
Logs
POST string
63-1501-000036-00101111-122607-I865G-A0551036
Note
unofficial patch, Wolfdale support
Core version
080011
BIOS version
Logs
POST string
63-1406-000036-00101111-060707-I865G-A0551036
Note
Core version
080011
BIOS version
Logs
POST string
63-1402-000036-00101111-032107-I865G-A0551036
Note
Core version
080011
BIOS version
Logs
POST string
63-1302-000036-00101111-030307-I865G-A0551036
Note
Core version
080011
BIOS version
Logs
POST string
63-1203-000036-00101111-012207-I865G-A0551036
Note
Core version
080011
BIOS version
Logs
POST string
63-1201-000036-00101111-112306-I865G-A0551036
Note
Core version
080011
BIOS version
Logs
POST string
63-1105-000036-00101111-102706-I865G-A0551036
Note
Core version
080011
BIOS version
Logs
POST string
63-1002-000036-00101111-101006-I865G-A0551036
Note
Core version
080011
BIOS version
Logs
POST string
63-0901-000036-00101111-082106-I865G-A0551036
Note
Core version
080011
BIOS version
Logs
POST string
63-0801-000036-00101111-072806-I865G-A0551036
Note
Core version
080011
BIOS version
Logs
POST string
63-0702-000036-00101111-071306-I865G-A0551036
Note
Core version
080011
BIOS version
Logs
POST string
63-0604-000036-00101111-071006-I865G-A0551036
Note
Core version
080011
BIOS version
Logs
POST string
63-0403-000036-00101111-062906-I865G-A0551036
Note
Core version
080011
BIOS version
Logs
POST string
63-0304-000036-00101111-062106-I865G-A0551036
Note
Core version
080011
BIOS version
Logs
POST string
63-0203-000036-00101111-052406-I865G-A0551036
Note
Core version
080011
BIOS version
Logs
drv 9 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
14.17.0.4396
OS support
Windows 2000 Windows XP/2k3
Arch
Size
Empty
Filename
Name
Version
3.40.1001
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
x86
Size
2.2MB
Filename
Name
Version
11.45.4.3
OS support
Windows 7 Windows 8.x Windows Vista Windows XP/2k3
Arch
x86 , x86-64
Size
1.8MB
Filename
Name
Version
A4.06
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
17.9MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
2.4MB
Filename
Version
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
x86
Size
Empty
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 9x
Arch
Size
Empty
Filename
Version
OS support
Windows NT 4.0
Arch
Size
Empty
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
Size
Empty
Filename
doc 3 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2003-09
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2003-04
File
Logs
Chip
Release date
2003-05
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2003-05
File
Logs
Chip
Release date
2004-02
File
Logs
Chip
Release date
2003-05
File
Logs
Chip
Release date
2004-02
File
Logs
Chip
Release date
2003-09
File
Logs
Chip
Release date
2004-02
File
Logs
Chip
Release date
2003-09
File
Logs
Chip
Release date
2004-03
File
Logs
Chip
Release date
2003-09
File
Logs
Chip
Release date
2003-10
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2003-05
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2001-02
File
Logs
Family
Release date
2007-10
File
Logs
Family
Release date
2008-01
File
Logs
Family
Release date
2007-03
File
Logs
Family
Release date
2008-08
File
Logs
Family
Release date
File
Logs
Family
Release date
2009-06
File
Logs
Family
Release date
2008-01
File
Logs
Family
Release date
File
Logs
Family
Release date
2008-10
File
Logs
Family
Release date
2010-12
File
Logs
Family
Release date
2008-12
File
Logs
Family
Release date
2009-01
File
Logs
Family
Release date
2011-09-06
File
Logs
Family
Release date
2011-09-06
File
Logs
Family
Release date
2011-09-06
File
Logs
Family
Release date
2011-09-06
File
Logs
Family
Release date
2008-12
File
Logs
Family
Release date
File
Logs
Family
Release date
2007-06
File
Logs
Family
Release date
2007-10-30
File
Logs
Family
Release date
2011-09-08
File
Logs
Family
Release date
2007-08
File
Logs
Family
Release date
2007-08
File
Logs
Family
Release date
2010-12
File
Logs
Family
Release date
2010-12
File
Logs
Family
Release date
2007-04
File
Logs
Family
Release date
2007-04
File
Logs
Family
Release date
2007-10
File
Logs
Family
Release date
2010-12
File
Logs
Family
Release date
2009-08
File
Logs
Family
Release date
2009-08
File
Logs
Family
Release date
2007-11-08
File
Logs
Family
Release date
2011-09-08
File
Logs
Family
Release date
2011-03-21
File
Logs
Family
Release date
2011-03-21
File
Logs
Family
Release date
2011-03-21
File
Logs
Family
Release date
2005-02
File
Logs
Family
Release date
2005-05
File
Logs
Family
Release date
2004-02
File
Logs
Family
Release date
2007-01
File
Logs
Family
Release date
2007-07
File
Logs
Family
Release date
File
Logs
Family
Release date
2001-10
File
Logs
Family
Release date
2002-05
File
Logs
Family
Release date
File
Logs
Socket
Release date
File
Logs
Socket
Release date
2006-02
File
Logs
Socket
Release date
2004
File
Logs

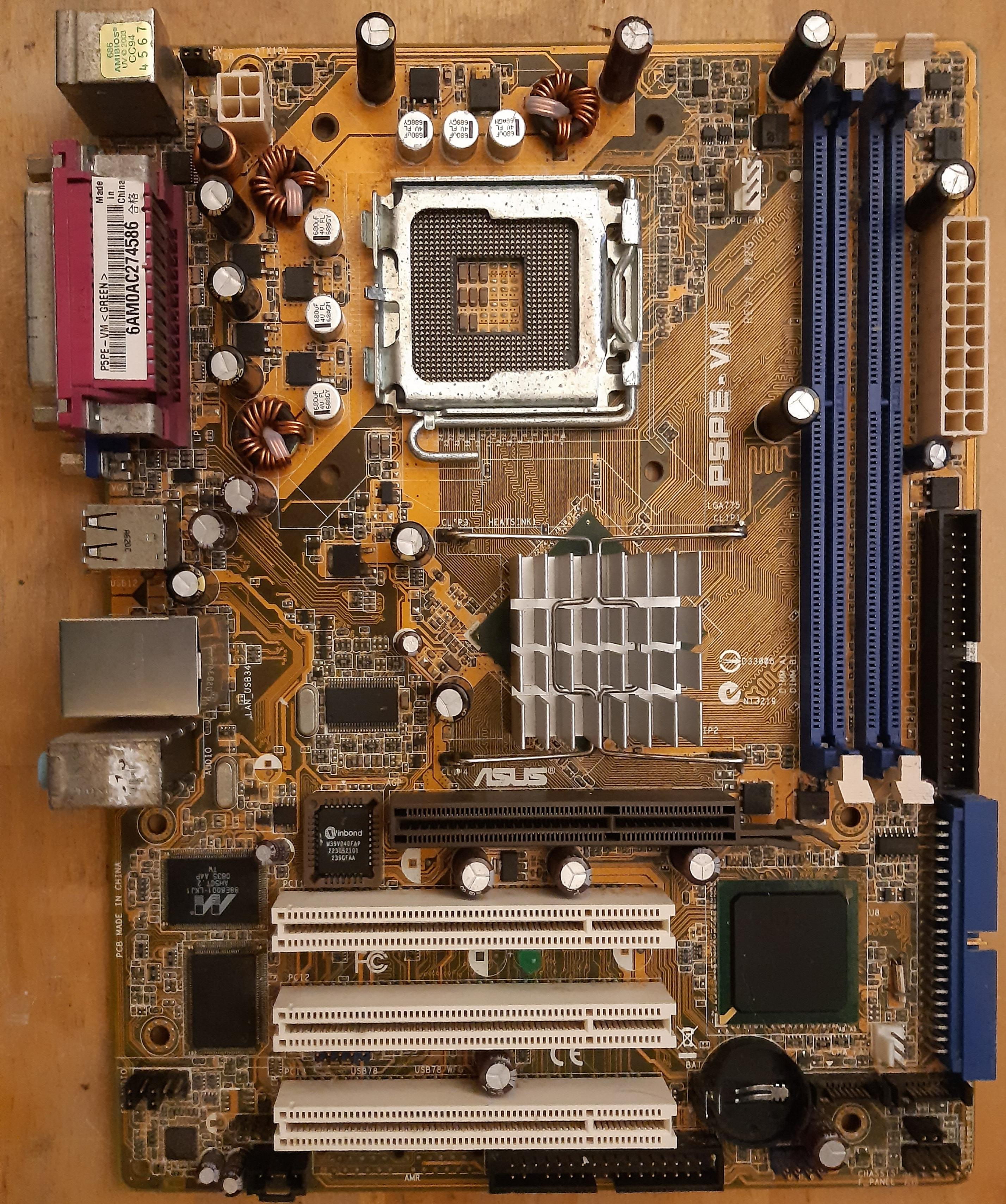

image1 Image 1 of 6 (evasive)
image2 Image 2 of 6 (Carlos S. M.)

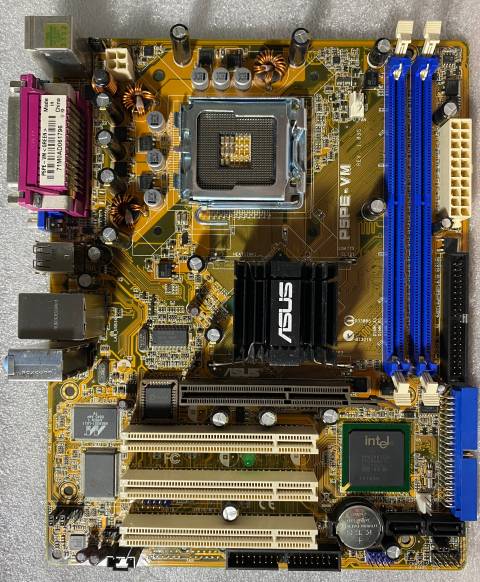

image3 Image 3 of 6 (ThisOldTech)

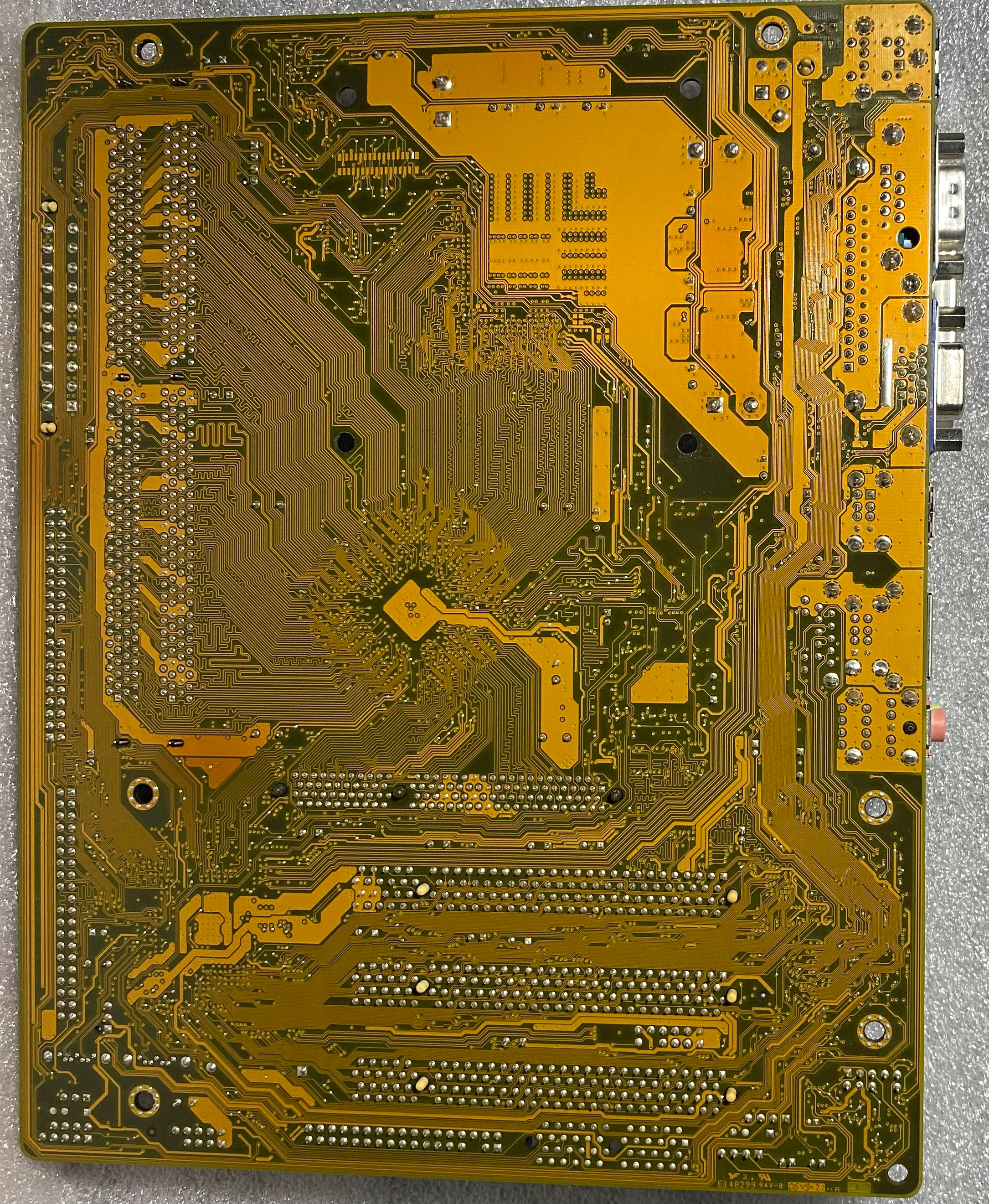

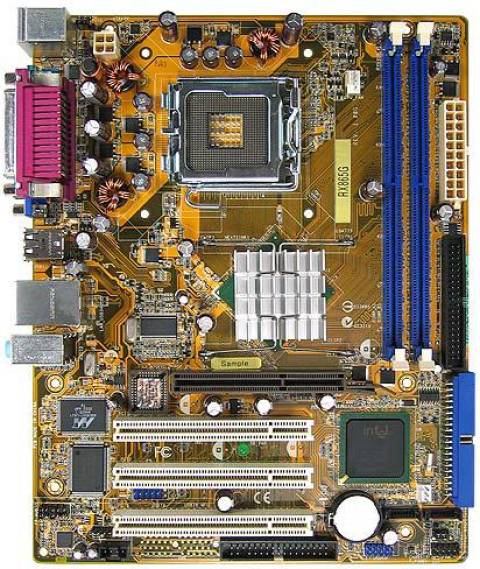

image4 Image 4 of 6 (BCM)
image5 Image 5 of 6 (ThisOldTech)
image6 Image 6 of 6 (ASUS)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
