ASUS P5LD2 SE
Logs
chipChipset
cpuSocket
Socket T (LGA775)
speedFSB speeds
533MHz800MHz1066MHz
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 190mm
chipCache
None/Integrated in the CPU
ramMax RAM size
4GB(DDR2-667)
ramRAM type
DDR2 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)
tag Also known as
  • ASUS P5LD2 SE Wireless Edition
connI/O ports
1x
3.5mm Audio Combo
1x
Floppy interface
1x
Gameport
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
1x
S/PDIF
4x
SATA II
2x
Serial
8x
USB 2.0
cardExpansion slots
3x
32-bit PCI
2x
PCIe x1
1x
PCIe x16
wrench Known issues
  • Faulty or Leaking Electrolytic Capacitors

Some motherboards may contain faulty or leaking electrolytic capacitors, which can negatively impact system performance or stability. These capacitors may exhibit issues such as bulging, leaking, or even exploding, potentially damaging other components on the motherboard. Users should inspect their capacitors regularly and replace any that are faulty or leaking to avoid damage or system instability.

notes Notes

Support Wolfdale CPUs with unofficial bios.

Core 2 support since PCB rev. 2.01.

Last updated 2025-07-25T09:23:23Z
Board info score is 9.6/10
bios 13 BIOS files available

vendor AMI - 13 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
63-1302-000010-00101111-041619-945P-A0402000
Note
unofficial patch for 45nm CPUs support
Core version
080011
BIOS version
Logs
POST string
63-1301-000010-00101111-081607-945P-A0402000
Note
Core version
080011
BIOS version
Logs
POST string
63-1208-000010-00101111-080107-945P-A0402000
Note
Core version
080011
BIOS version
Logs
POST string
63-1104-000010-00101111-061407-945P-A0402000
Note
Core version
080011
BIOS version
Logs
POST string
63-1003-000010-00101111-041207-945P-A0402000
Note
Core version
080011
BIOS version
Logs
POST string
63-0802-000010-00101111-012307-945P-A0402000
Note
Core version
080011
BIOS version
Logs
POST string
63-0605-000010-00101111-112006-945P-A0402000
Note
Core version
080011
BIOS version
Logs
POST string
63-0505-000010-00101111-102706-945P-A0402000
Note
Core version
080011
BIOS version
Logs
POST string
63-0501-000010-00101111-101706-945P-A0402000
Note
Core version
080011
BIOS version
Logs
POST string
63-0406-000010-00101111-092606-945P-A0402000
Note
Core version
080011
BIOS version
Logs
POST string
63-0315-000010-00101111-071206-945P-A0402000
Note
Core version
080011
BIOS version
Logs
POST string
63-0213-000010-00101111-053006-945P-A0402000
Note
Core version
080011
BIOS version
Logs
POST string
63-0209-000010-00101111-010906-945P-A0402000
Note
Core version
080011
BIOS version
Logs
drv 2 drivers available
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
Size
Empty
Filename
Version
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
2.4MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2008
File
Logs
Chip
Release date
2007-04
File
Logs
Chip
Release date
2005-04
File
Logs
Chip
Release date
2012-05
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2001-02
File
Logs
Family
Release date
2007-10
File
Logs
Family
Release date
2008-01
File
Logs
Family
Release date
2007-03
File
Logs
Family
Release date
2008-08
File
Logs
Family
Release date
File
Logs
Family
Release date
2009-06
File
Logs
Family
Release date
2008-01
File
Logs
Family
Release date
File
Logs
Family
Release date
2008-10
File
Logs
Family
Release date
2010-12
File
Logs
Family
Release date
2008-12
File
Logs
Family
Release date
2009-01
File
Logs
Family
Release date
2011-09-06
File
Logs
Family
Release date
2011-09-06
File
Logs
Family
Release date
2011-09-06
File
Logs
Family
Release date
2011-09-06
File
Logs
Family
Release date
2008-12
File
Logs
Family
Release date
File
Logs
Family
Release date
2007-06
File
Logs
Family
Release date
2007-10
File
Logs
Family
Release date
2010-12
File
Logs
Family
Release date
2011-03-21
File
Logs
Family
Release date
2011-03-21
File
Logs
Family
Release date
2005-02
File
Logs
Family
Release date
2005-05
File
Logs
Family
Release date
2004-02
File
Logs
Family
Release date
2007-01
File
Logs
Family
Release date
2007-07
File
Logs
Family
Release date
File
Logs
Family
Release date
2001-10
File
Logs
Family
Release date
2002-05
File
Logs
Family
Release date
File
Logs
Socket
Release date
File
Logs
Socket
Release date
2006-02
File
Logs
Socket
Release date
2004
File
Logs

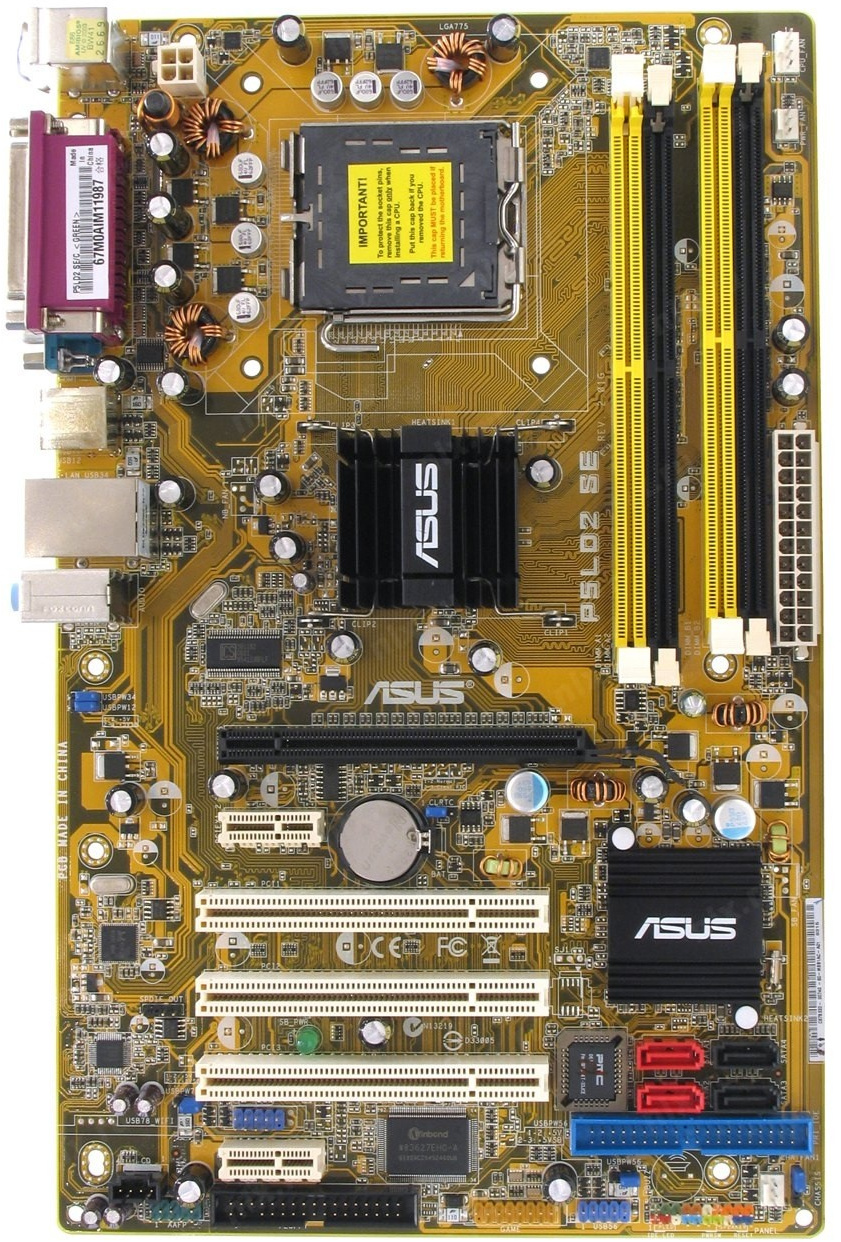

image1 Image 1 of 5 (ASUS)

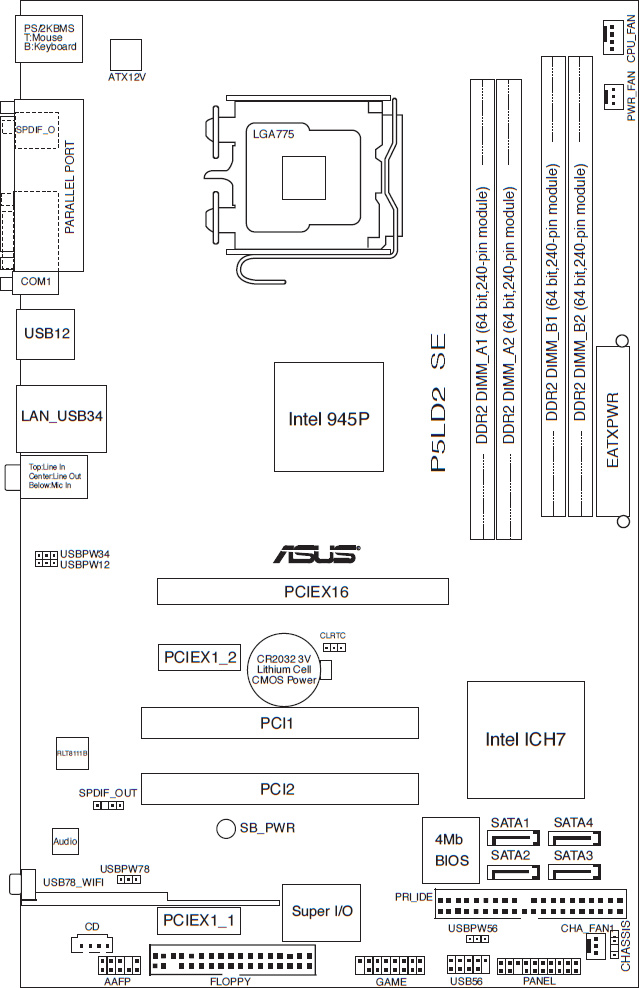

image2 Image 2 of 5 (px4c)

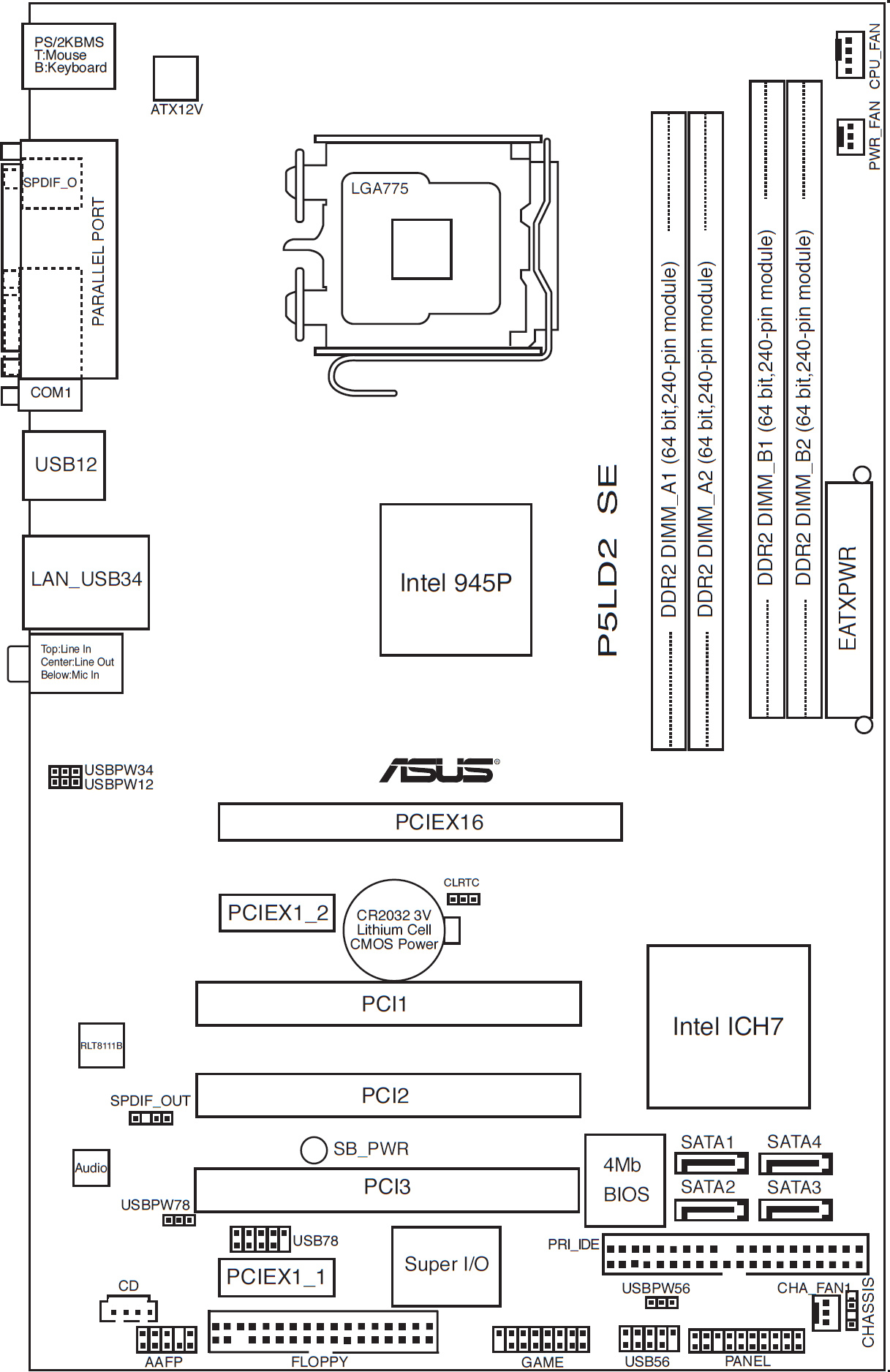

image3 Image 3 of 5

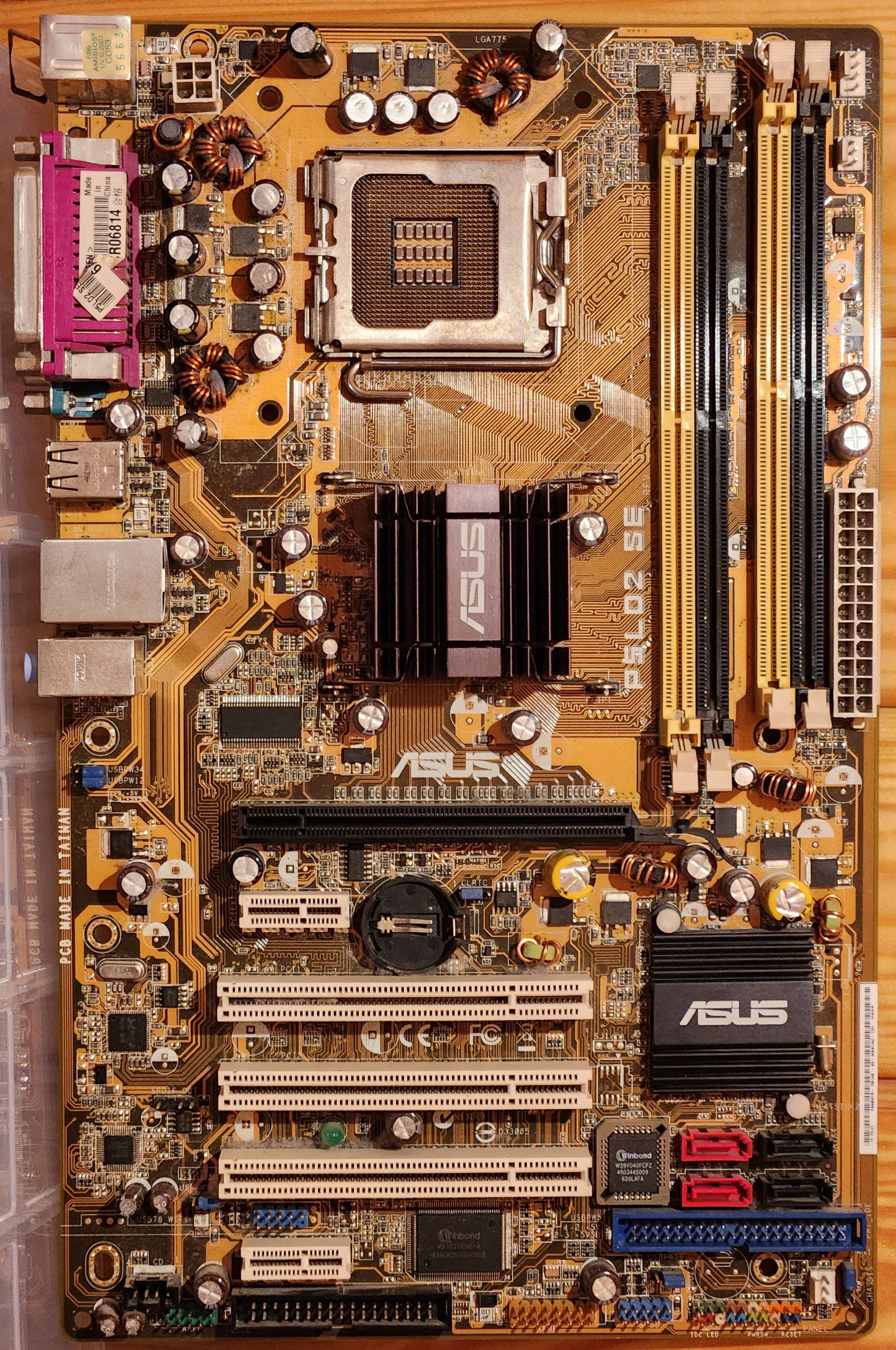

image4 Image 4 of 5 (ASUS)
image5 Image 5 of 5 (ASUS)
