ASUS P4T (Rev. 1.07)
Logs
chipChipset
cpuSocket
Socket 423 (PGA423)
speedFSB speed
400MHz
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 244mm
chipCache
None/Integrated in the CPU
ramMax RAM size
2GB
ramRAM type
184-pin RDRAM
pwrPSU connector
ATX 1.x (20-pin ATX) ATX P4 connector 12v (4-pin P4)
connI/O ports
1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
4x
USB 2.0
cardExpansion slots
1x
1.5V AGP Pro
5x
32-bit PCI
Last updated 2025-11-17T23:00:25Z
Board info score is 9.6/10
bios 10 BIOS files available

vendor Award - 10 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
12/12/2002-i850-<<P4T>>
Note
beta
Core version
Asus v6.0
BIOS version
Logs
POST string
11/18/2002-i850-<<P4T>>
Note
beta
Core version
Asus v6.0
BIOS version
Logs
POST string
11/18/2002-i850-<<P4T>>
Note
Core version
Asus v6.0
BIOS version
Logs
POST string
03/01/2002-i850-<<P4T>>
Note
beta
Core version
Asus v6.0
BIOS version
Logs
POST string
03/01/2002-i850-<<P4T>>
Note
HDD >160GB
Core version
Asus v6.0
BIOS version
Logs
POST string
07/15/2001-i850-<<P4T>>-00
Note
added CPU support
Core version
Asus v6.0
BIOS version
Logs
POST string
03/02/2001-i850-<<P4T>>-00
Note
Core version
Asus v6.0
BIOS version
Logs
POST string
12/29/2000-i850-<<P4T>>-00
Note
Core version
Asus v6.0
BIOS version
Logs
POST string
11/20/2000-i850-<<P4T>>-00
Note
Core version
Asus v6.0
BIOS version
Logs
POST string
Note
flash utility
Core version
n/a
BIOS version
Logs
drv 5 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
3.5.1.6
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
x86
Size
18.5MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
x86
Size
2.2MB
Filename
Version
OS support
Windows 2000 Windows 9x
Arch
x86
Size
1.5MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
x86
Size
Empty
Filename
Version
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
Size
Empty
Filename
doc 1 board document available
Release date
File
Logs
Release date
2001-07
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2007
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs

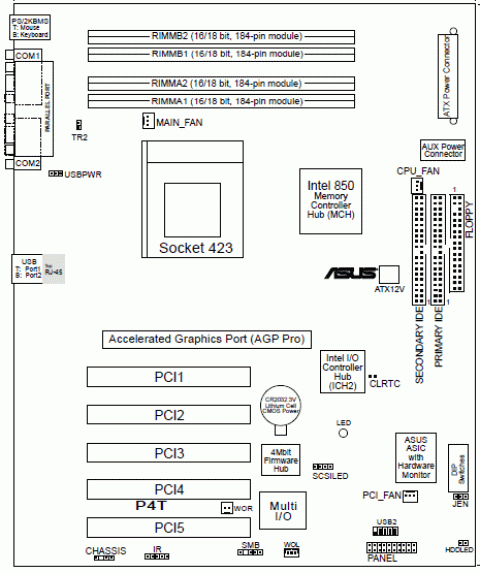

image1 Image 1 of 3 (ASUS)

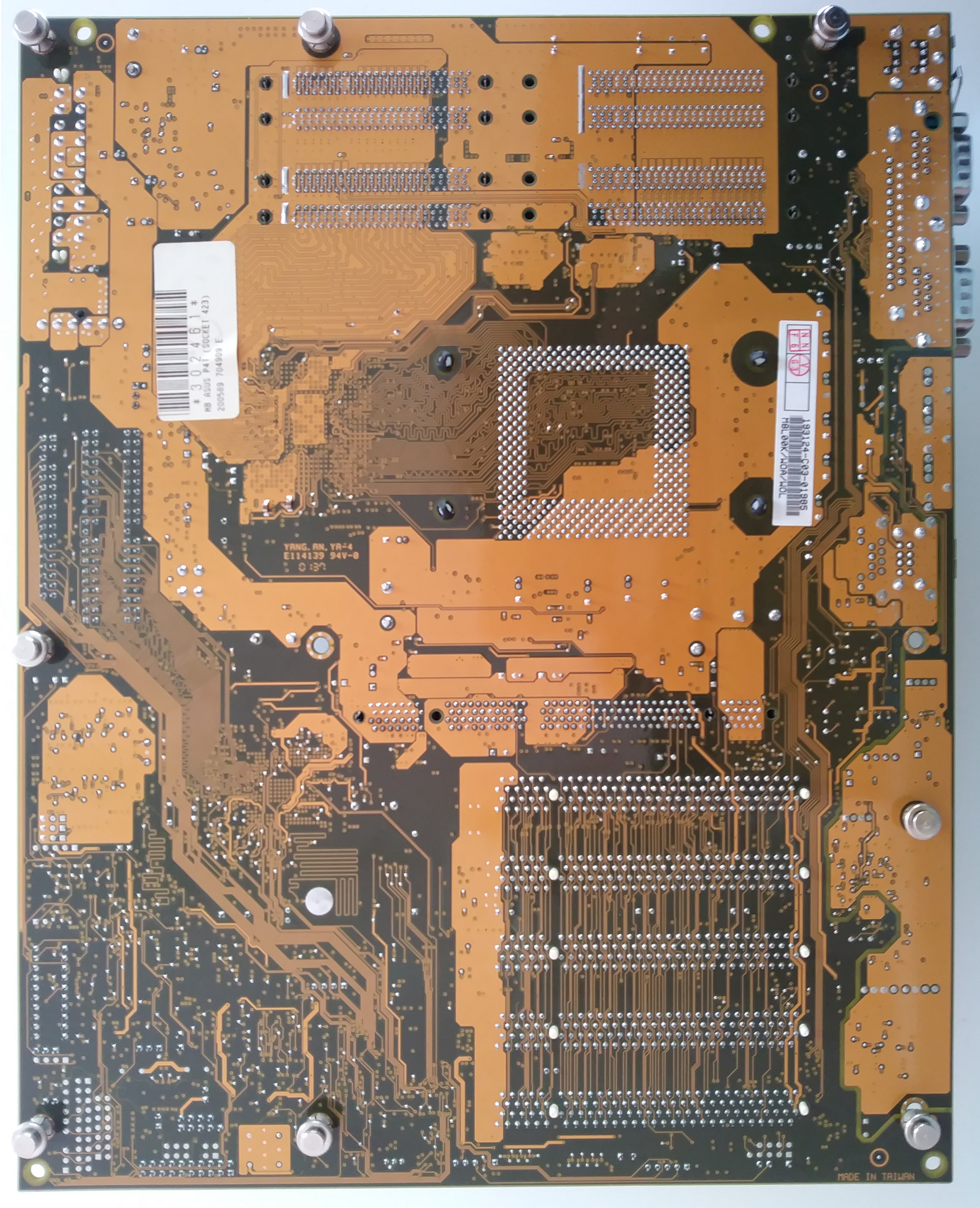

image2 Image 2 of 3 (VooDooMan)

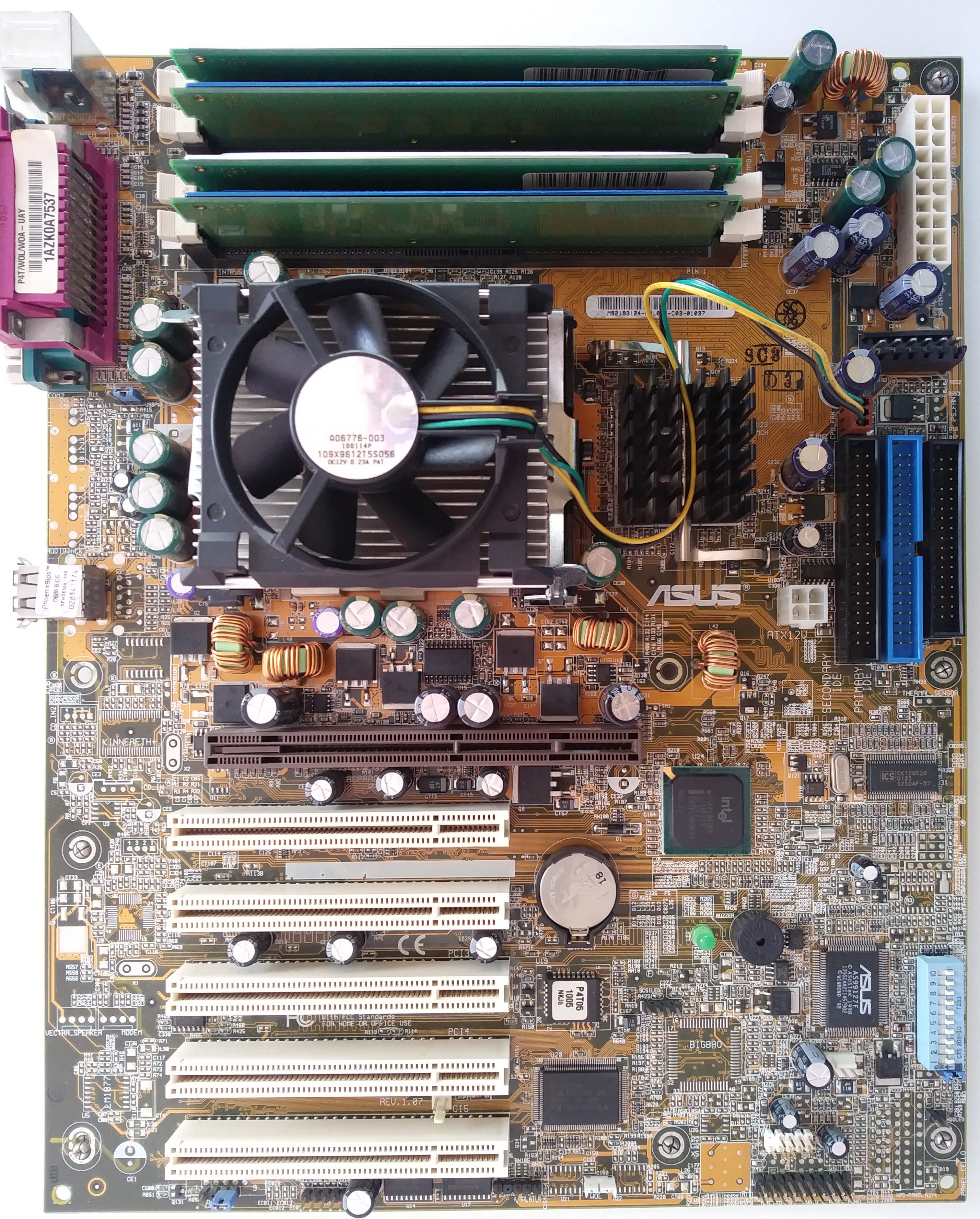

image3 Image 3 of 3 (VooDooMan)
