ASUS P4S8X
Logs
chipChipset
cpuSocket
Socket 478 (mPGA478)
speedFSB speeds
400MHz533MHz
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 219mm
chipCache
None/Integrated in the CPU
ramMax RAM size
3GB
ramRAM type
DDR UDIMM
pwrPSU connector
Molex (4-pin) ATX 1.x (20-pin ATX) ATX P4 connector 12v (4-pin P4)
connI/O ports
1x
3.5mm Audio Combo
2x
FireWire 400
1x
Floppy interface
1x
Gameport
3x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
2x
SATA I
2x
Serial
6x
USB 2.0
cardExpansion slots
1x
1.5V AGP
6x
32-bit PCI
wrench Known issues
  • Misleading AGP slot/specification

The motherboard may feature a misleading AGP slot/specification.

Notably:

  • Universal AGP slot in motherboard, but is actually only runs at 3.3V or 1.5V
  • The motherboard AGP slot doesn't support the advertised speeds

See notes for detailed info for your hardware.

notes Notes
  • Audio, Smart Card Reader support and onboard LAN are optional
  • 1.5V AGP only. The warning LED next to slot will indicate 3.3V card detection.
Last updated 2025-05-23T10:58:35Z
Board info score is 9.8/10
bios 5 BIOS files available

vendor Award - 5 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
10/23/2003-SiS648/SIS963/W697-P4S8X
Note
Beta Version
Core version
6.00PG
BIOS version
Logs
POST string
10/23/2003-SiS648/SIS963/W697-P4S8X
Note
Core version
6.00PG
BIOS version
Logs
POST string
10/04/2002-SiS648/SIS963/W697-P4S8X
Note
Core version
6.00PG
BIOS version
Logs
POST string
08/26/2002-SiS648/SIS963/W697-P4S8X
Note
Core version
6.00PG
BIOS version
Logs
POST string
08/14/2002-SiS648/SIS963/W697-P4S8X
Note
Core version
6.00PG
BIOS version
Logs
drv 2 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.21
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
Size
Empty
Filename
Name
Version
2.04A
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
Size
Empty
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2001-02
File
Logs
Family
Release date
File
Logs
Family
Release date
2002-11
File
Logs
Family
Release date
2002-11
File
Logs
Family
Release date
2004-02
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2001-08
File
Logs
Family
Release date
File
Logs
Family
Release date
2002-05
File
Logs
Family
Release date
File
Logs
Socket
Release date
File
Logs
Socket
Release date
2001-10
File
Logs
Socket
Release date
2002-05
File
Logs
Socket
Release date
2002-10
File
Logs
Socket
Release date
2001-08
File
Logs

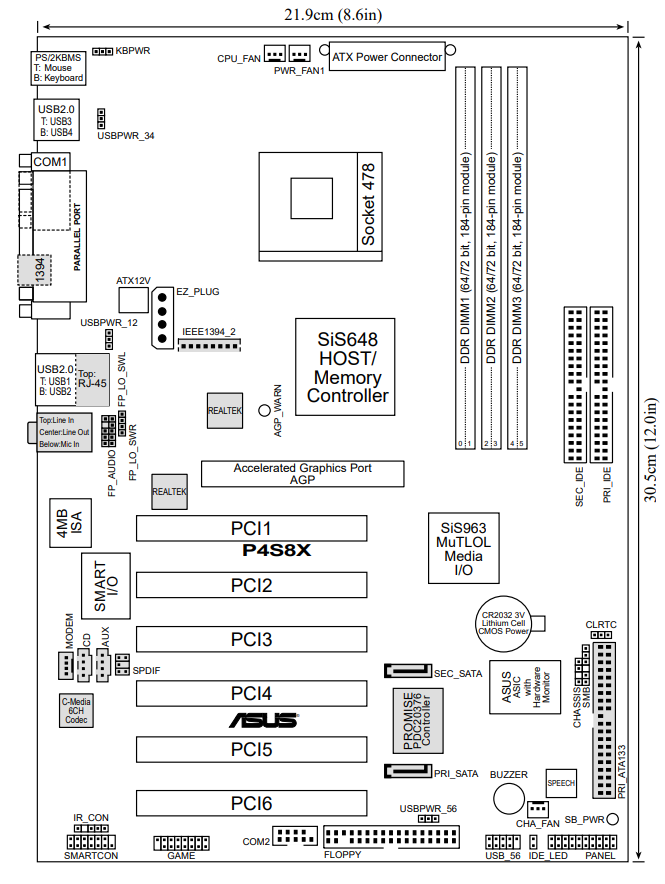

image1 Image 1 of 4 (ASUS)

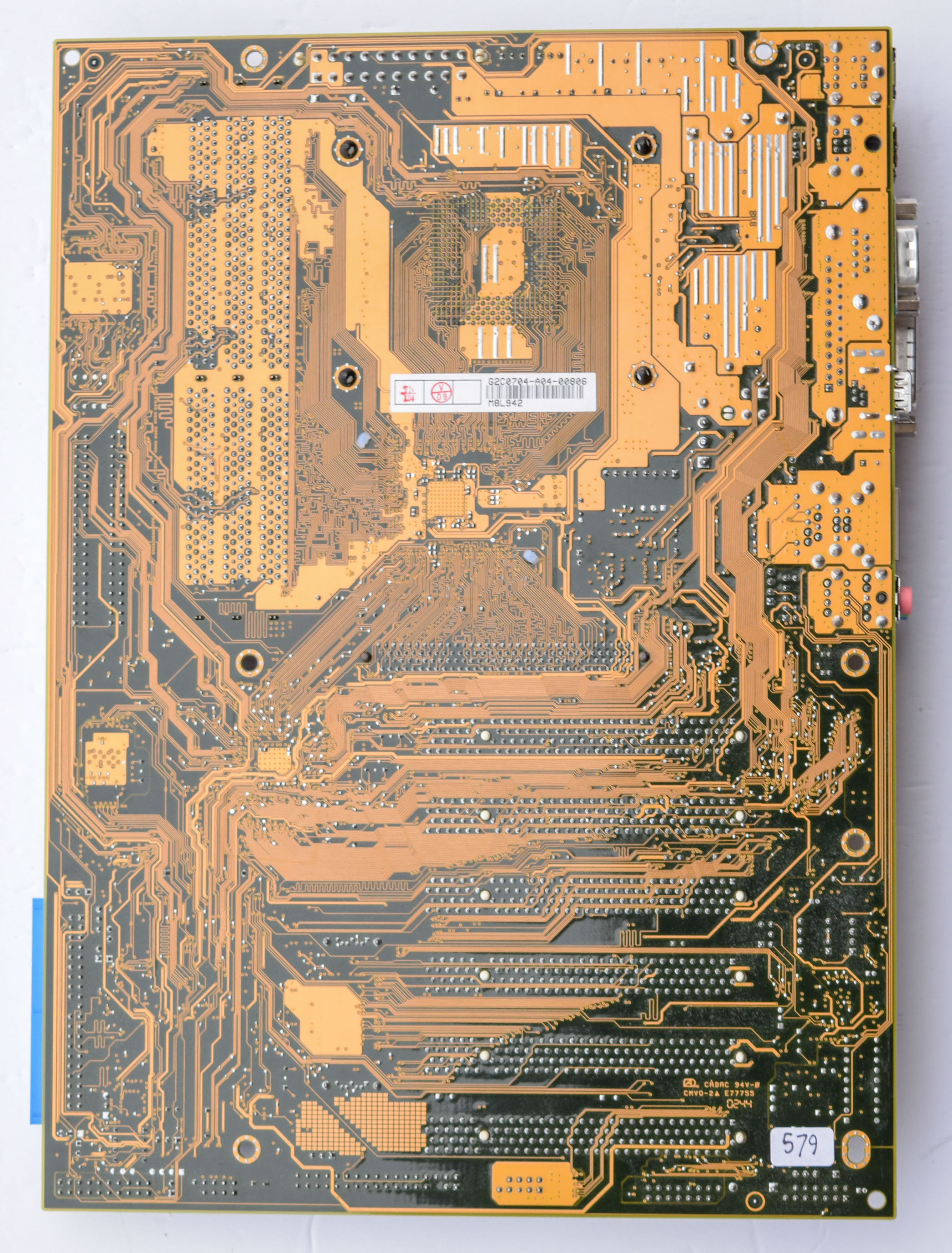

image2 Image 2 of 4 (Motherboard Continuum)

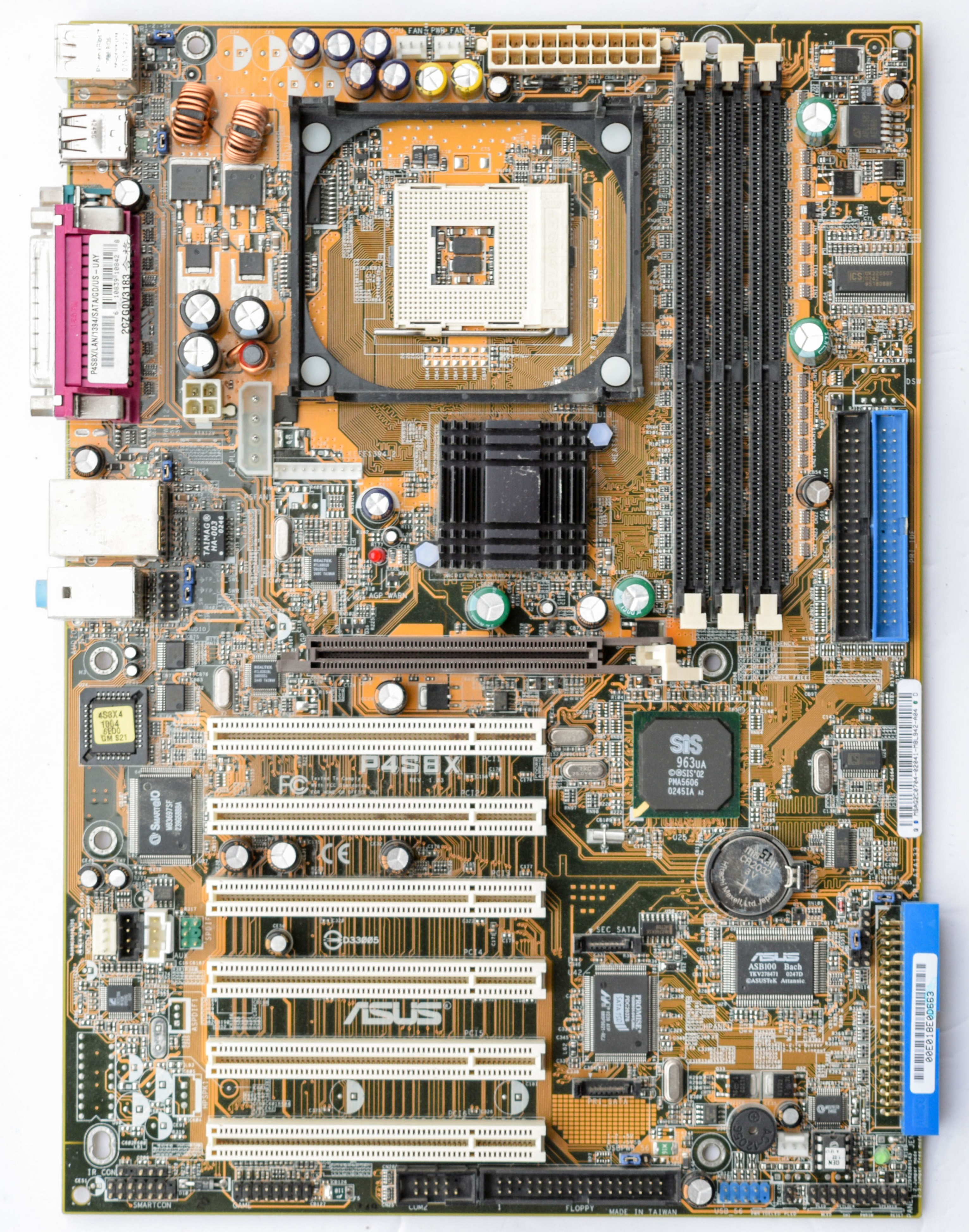

image3 Image 3 of 4 (Motherboard Continuum)

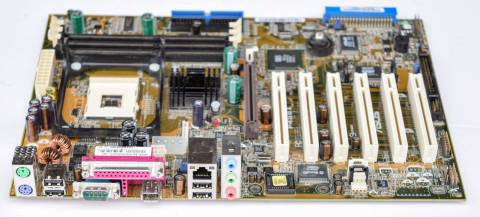

image4 Image 4 of 4 (Motherboard Continuum)
