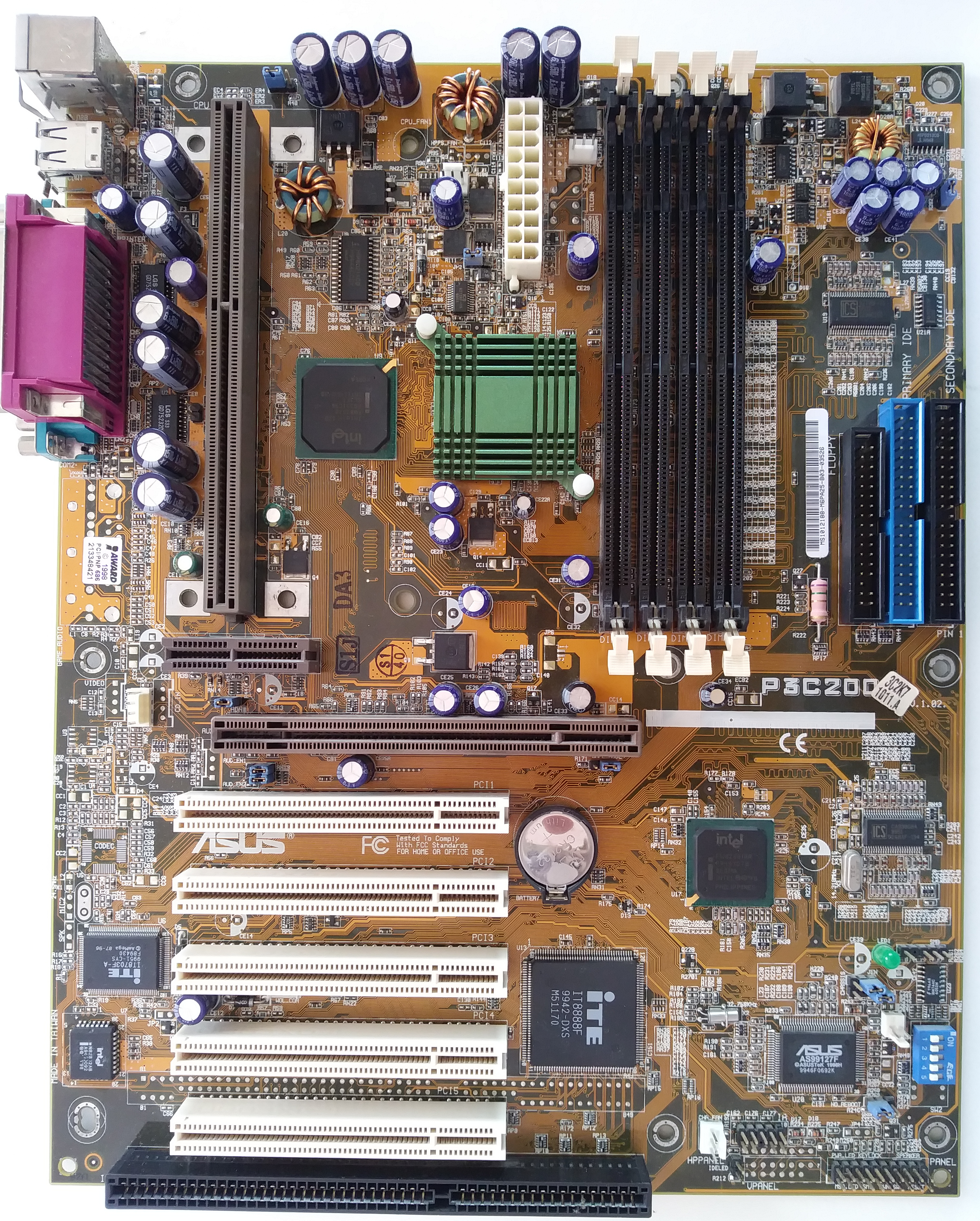

ASUS P3C2000
Logs
chipChipset
cpuSocket
speedFSB speeds
100MHz133MHz
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
Empty
chipCache
None/Integrated in the CPU
ramMax RAM size
1GB
ramRAM type
SDR UDIMM
pwrPSU connector
tag Also known as
connI/O ports
1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
2x
Serial
2x
USB 1.x
cardExpansion slots
1x
16-bit ISA
5x
32-bit PCI
1x
AMR
1x
Universal AGP Pro
wrench No board specific known issues
Last updated 2025-10-30T15:49:08Z
Board info score is 9.5/10
bios 7 BIOS files available

vendor Award - 7 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
05/08/2000-i820-P3C-2000
Note
Beta BIOS
Core version
Asus v6.0
BIOS version
Logs
POST string
05/04/2000-i820-P3C-2000
Note
Core version
Asus v6.0
BIOS version
Logs
POST string
03/17/2000-i820 -P3C-2000
Note
Core version
Asus v6.0
BIOS version
Logs
POST string
08/02/2001-i820-P3C-2000
Note
beta
Core version
Asus v6.0
BIOS version
Logs
POST string
01/13/2000-i820 -P3C-2000
Note
Beta BIOS
Core version
Asus v6.0
BIOS version
Logs
POST string
01/21/2000-i820 -P3C-2000-00
Note
Core version
Asus v6.0
BIOS version
Logs
POST string
12/09/1999-i820 -P3C-2000-00
Note
Core version
Asus v6.0
BIOS version
Logs
drv 7 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
4.02.0017
OS support
Windows NT 4.0
Arch
x86
Size
5.5MB
Filename
Name
Version
4.10.2225
OS support
Windows 9x
Arch
x86
Size
4.6MB
Filename
Name
Version
5.00.2238
OS support
Windows 2000 Windows 9x
Arch
x86
Size
3MB
Filename
doc 2 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
