ASUS P3B-F (rev. 1.03, 2 ISA)
Chipset
Socket
FSB speeds 66MHz100MHz
Form factorATX (max 305 x 244 mm)
Dimensions305 mm x 200 mm
Cache
None/Integrated in the CPU
Max RAM size
1GB
RAM types SDR UDIMMSDR UDIMM ECCSDR RDIMM ECC
PSU connector
I/O ports1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
2x
USB 1.x
Expansion slots2x
16-bit ISA
1x
3.3V AGP
5x
32-bit PCI
Last updated 2025-07-23T08:16:31Z
Board info score is 9/10
Chips
-> Chipset part
-> Sensing / Monitoring
-> Super I/O
1 BIOS file available
Award - 1 entry
POST string
Note
Core Ver.
BIOS Ver.
Logs
6 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
3.20.1008
OS support
Windows 2000
Windows 9x
Windows XP/2k3
Arch
Size
Empty
Filename
Name
Version
3.7B / 3.7D
OS support
MS-DOS
NetWare Server 3
NetWare Server 4
OS/2 Warp 3.x
Windows 3.1x
Windows 9x
Windows NT 3.5x
Arch
x86
Size
1.6MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000
Windows 9x
Windows XP/2k3
Arch
x86
Size
2.2MB
Filename
Version
OS support
Arch
Size
Filename
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2002-02
File
Logs
Family
Release date
2000-02
File
Logs
Family
Release date
1998-01
File
Logs
Family
Release date
1998-01
File
Logs
Family
Release date
1999-05
File
Logs
Family
Release date
2001-06
File
Logs
Socket
Release date
File
Logs
Socket
Release date
1999-02
File
Logs
Socket
Release date
1997-05
File
Logs

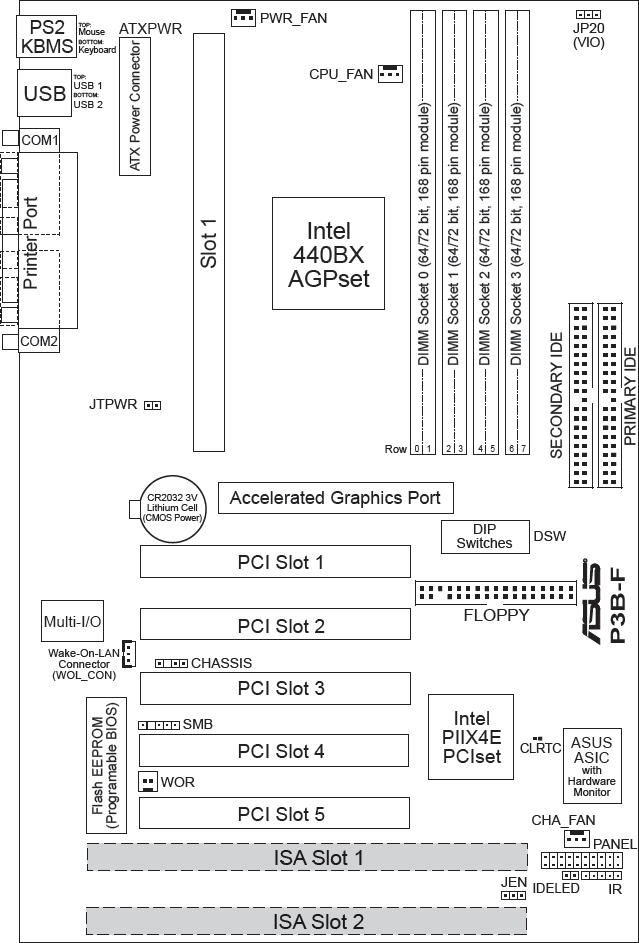

Image 1 of 3 (ASUS)

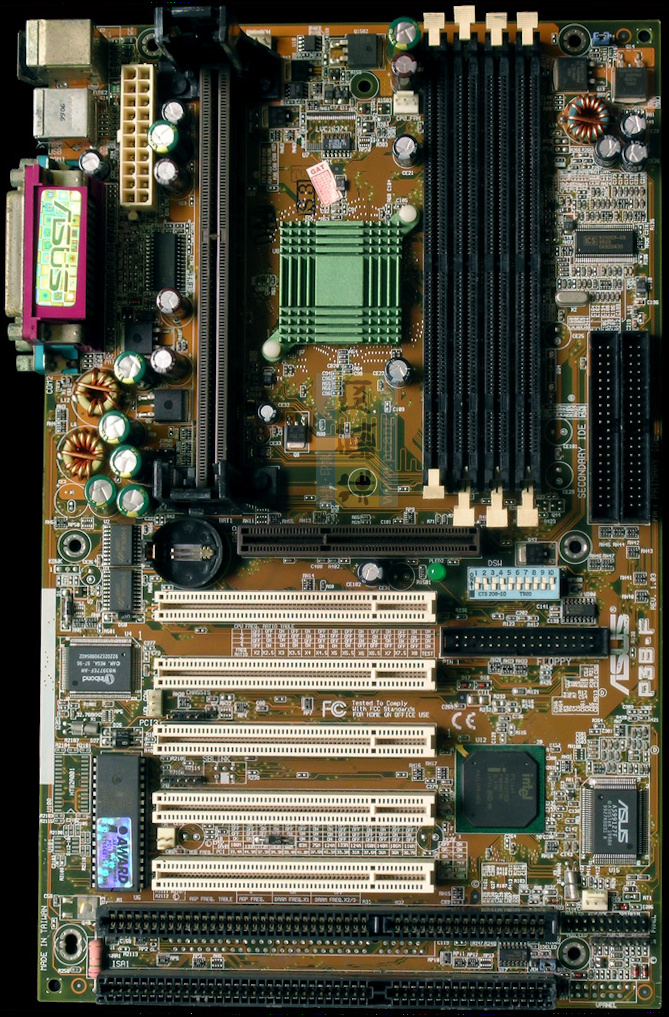

Image 2 of 3 (PCang)

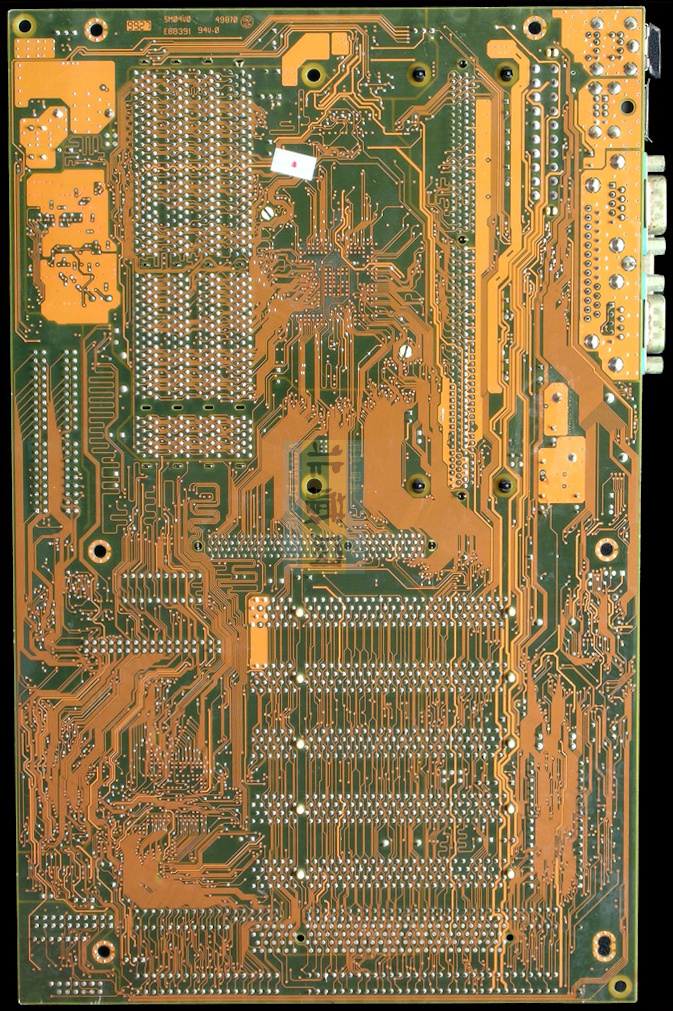

Image 3 of 3 (PCang)
