ASUS P2B-B
Logs
chipChipset
cpuSocket
Slot 1 (Slot-242)
speedFSB speeds
66MHz100MHz
moboForm factor
Baby AT (max 220 x 330 mm)
dimDimensions
254mm x 218mm
chipCache
None/Integrated in the CPU
ramMax RAM size
768MB
ramRAM types
SDR UDIMM168-pin EDO UDIMMSDR UDIMM ECCSDR RDIMM ECC
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
connI/O ports
1x
AT Keyboard
1x
Floppy interface
2x
IDE interface
1x
PS/2 mouse
1x
Parallel
1x
SB_Link
2x
Serial
2x
USB 1.x
cardExpansion slots
2x
16-bit ISA
1x
3.3V AGP
3x
32-bit PCI
notes Notes

Unlike its P2B ATX sibling, this board ships with the JEN jumber hardwired for manual CPU multiplier and bus frequency.
By desoldering the wire and replacing it with a normal jumper, it's possible to re-enable the missing "CPU PnP" feature, with multiplier and clock auto-detection and manual adjustment from BIOS. Latest BIOS is recommended for this feature to work correctly.
On PCB Revision 1.01, Pentium III Coppermine support can be added by replacing the VRM PWM controller with a compatible one. See [https://www.vogons.org/viewtopic.php?t=85273] for details.
According to the support page here PCB 1.02 supports Coppermine CPUs up to 1GHz using the beta bios 1013.006 or higher.

Last updated 2026-01-07T19:00:56Z
Board info score is 9.6/10
bios 10 BIOS files available

vendor Award - 10 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
08/01/2002-i440BX-P2B-B
Note
Core version
4.51PG
BIOS version
Logs
POST string
12/08/00-i440BX-P2B-B
Note
Core version
4.51PG
BIOS version
Logs
POST string
03/03/00-i440BX-P2B-B
Note
Beta BIOS
Core version
4.51PG
BIOS version
Logs
POST string
10/21/99-i440BX-P2B-B-00
Note
Core version
4.51PG
BIOS version
Logs
POST string
07/16/99-i440BX-P2B-B-00
Note
Core version
4.51PG
BIOS version
Logs
POST string
05/10/99-i440BX-P2B-B-00
Note
Core version
4.51PG
BIOS version
Logs
POST string
03/22/99-i440BX-P2B-B-00
Note
Core version
4.51PG
BIOS version
Logs
POST string
03/01/99-i440BX-P2B-B-00
Note
Core version
4.51PG
BIOS version
Logs
POST string
02/22/99-i440BX-P2B-B-00
Note
Core version
4.51PG
BIOS version
Logs
POST string
12/23/98-i440BX-P2B-B-00
Note
Core version
4.51PG
BIOS version
Logs
drv 6 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
3.20.1008
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
Size
Empty
Filename
Name
Version
3.7B / 3.7D
OS support
MS-DOS NetWare Server 3 NetWare Server 4 OS/2 Warp 3.x Windows 3.1x Windows 9x Windows NT 3.5x
Arch
x86
Size
1.6MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
x86
Size
2.2MB
Filename
Version
OS support
Windows 2000 Windows 9x
Arch
x86
Size
1.5MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 9x
Arch
x86
Size
569.7KB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
577.8KB
Filename
doc 2 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1997-11
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1998-03
File
Logs
Family
Release date
File
Logs
Family
Release date
2002-02
File
Logs
Family
Release date
1998-01
File
Logs
Family
Release date
1998-01
File
Logs
Family
Release date
1999-05
File
Logs
Socket
Release date
File
Logs
Socket
Release date
1999-02
File
Logs
Socket
Release date
1997-05
File
Logs

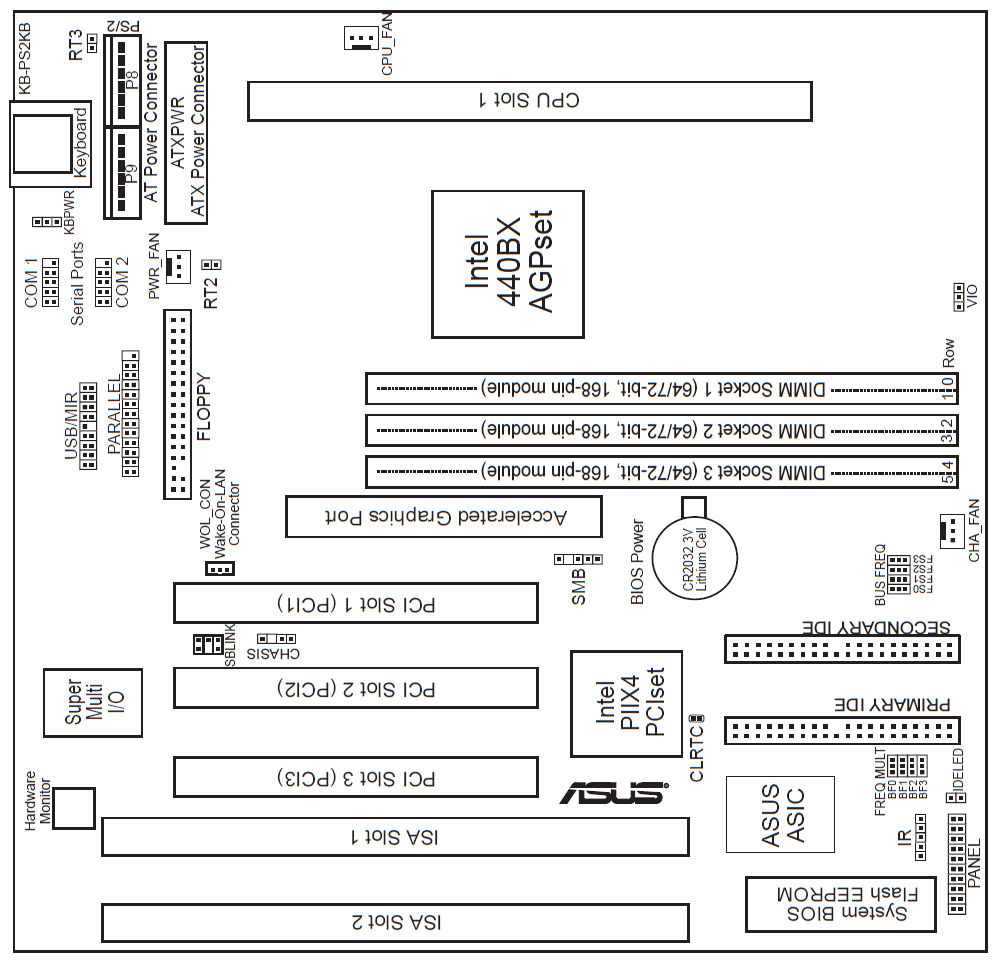

image1 Image 1 of 5 (evasive)

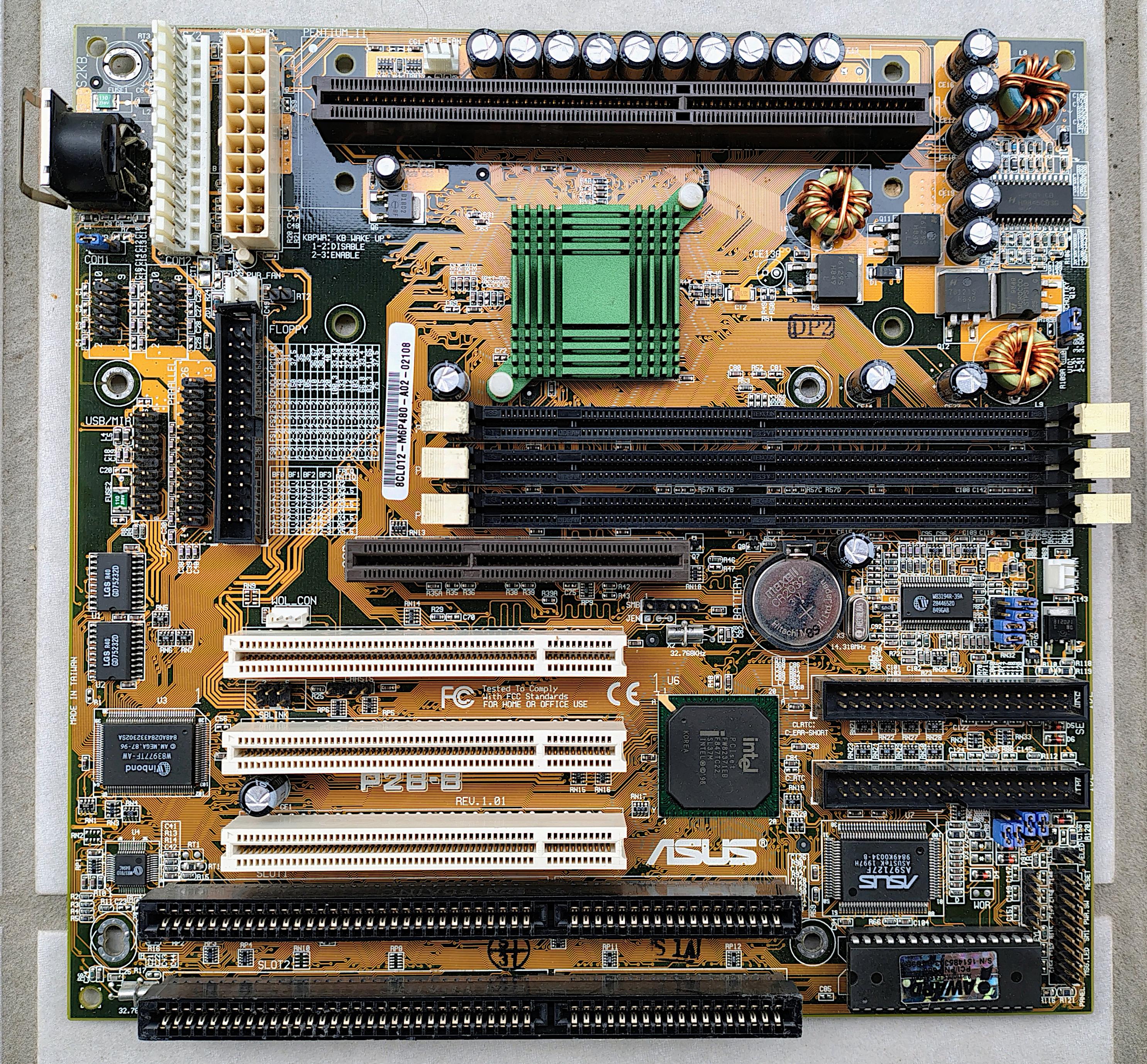

image2 Image 2 of 5 (wx)

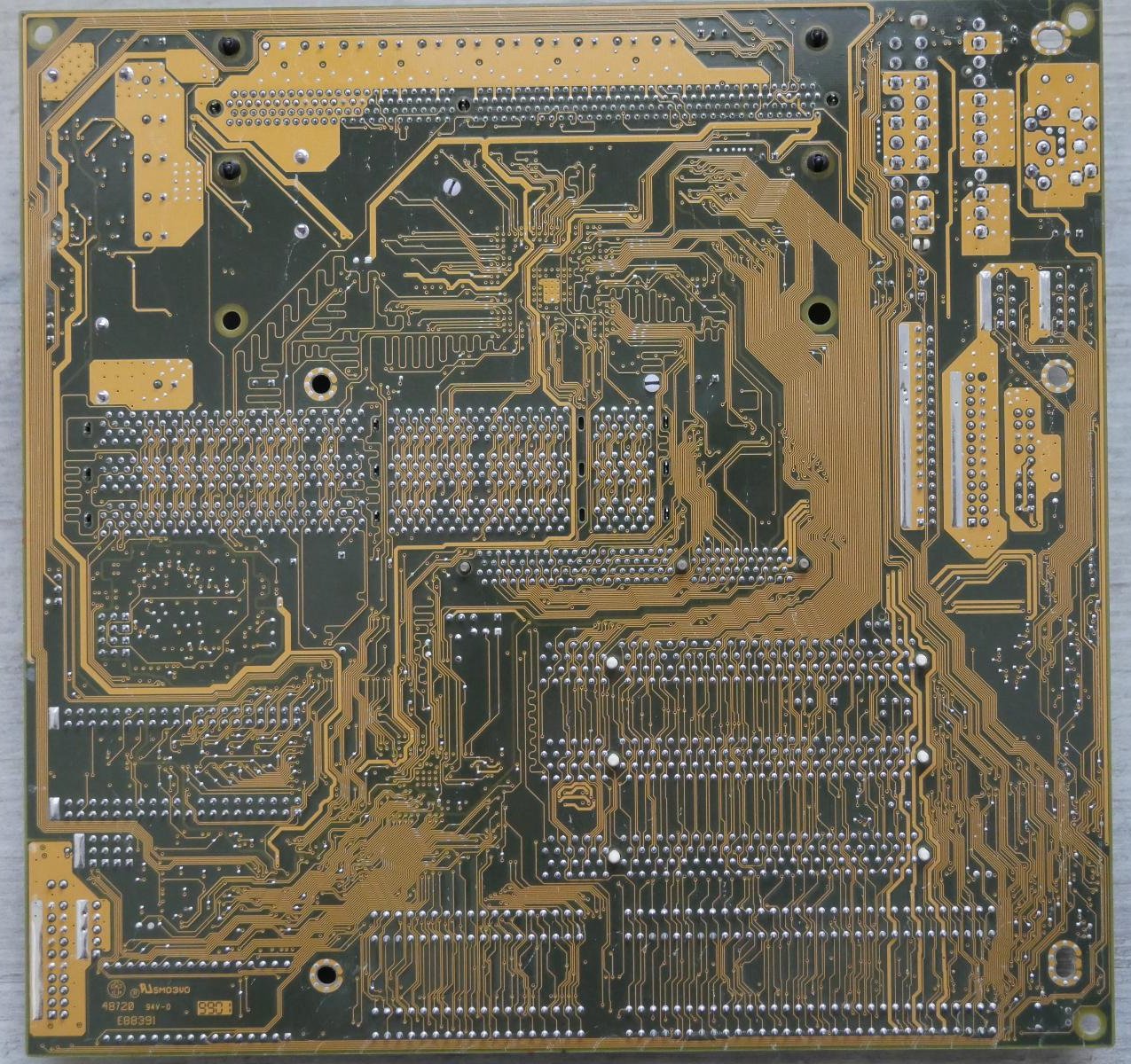

image3 Image 3 of 5 (Necroware)
image4 Image 4 of 5 (wx)

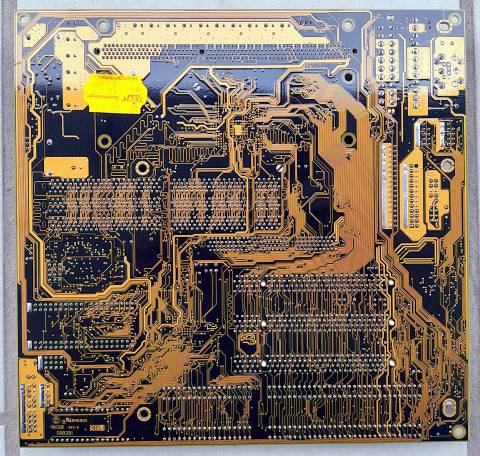

image5 Image 5 of 5 (Necroware)
