ASUS P/I-P6RP4
Chipset
Socket
FSB speeds 60MHz66MHz
Form factorBaby AT (max 220 x 330 mm)
Dimensions330mm x 218mm
Cache
None/Integrated in the CPU
Max RAM size
512MB
RAM types 72-pin FPM72-pin EDO
PSU connector
I/O ports1x
AT Keyboard
1x
Floppy interface
2x
IDE interface
1x
PS/2 mouse
1x
Parallel
2x
Serial
Expansion slots3x
16-bit ISA
4x
32-bit PCI
1x
Asus MediaBus 1.2
No board specific known issues
- Faulty IDE Controller
The IDE controller(s) is known to be faulty, which may cause problems with IDE devices such as data corruption or lockups.
Last updated 2025-01-07T19:17:09Z
Board info score is 9.4/10
Chips
-> Chipset part
-> IDE ctrl.
-> Real-Time Clock
-> Super I/O
CPU family support
4 BIOS files available
AMI - 4 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
61-0406-001292-00111111-101094-ORNISA
Note
UMC I/O
Core version
101094
BIOS version
Logs
POST string
61-0405-001292-00111111-101094-ORNISA
Note
SMC I/O
Core version
101094
BIOS version
Logs
POST string
61-0406-001292-00111111-101094-ORNISA
Note
UMC I/O
Core version
101094
BIOS version
Logs
POST string
61-0405-001292-00111111-101094-ORNISA
Note
SMC I/O
Core version
101094
BIOS version
Logs
No drivers available
2 board documents available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
1997
File
Logs
Family
Release date
1998-05
File
Logs
Family
Release date
1995-11
File
Logs
Family
Release date
1998-01
File
Logs
Family
Release date
1996
File
Logs
Family
Release date
1997-05
File
Logs
Family
Release date
1995-11
File
Logs
Family
Release date
1999-01
File
Logs
Family
Release date
1997-06
File
Logs
Family
Release date
1997-02
File
Logs

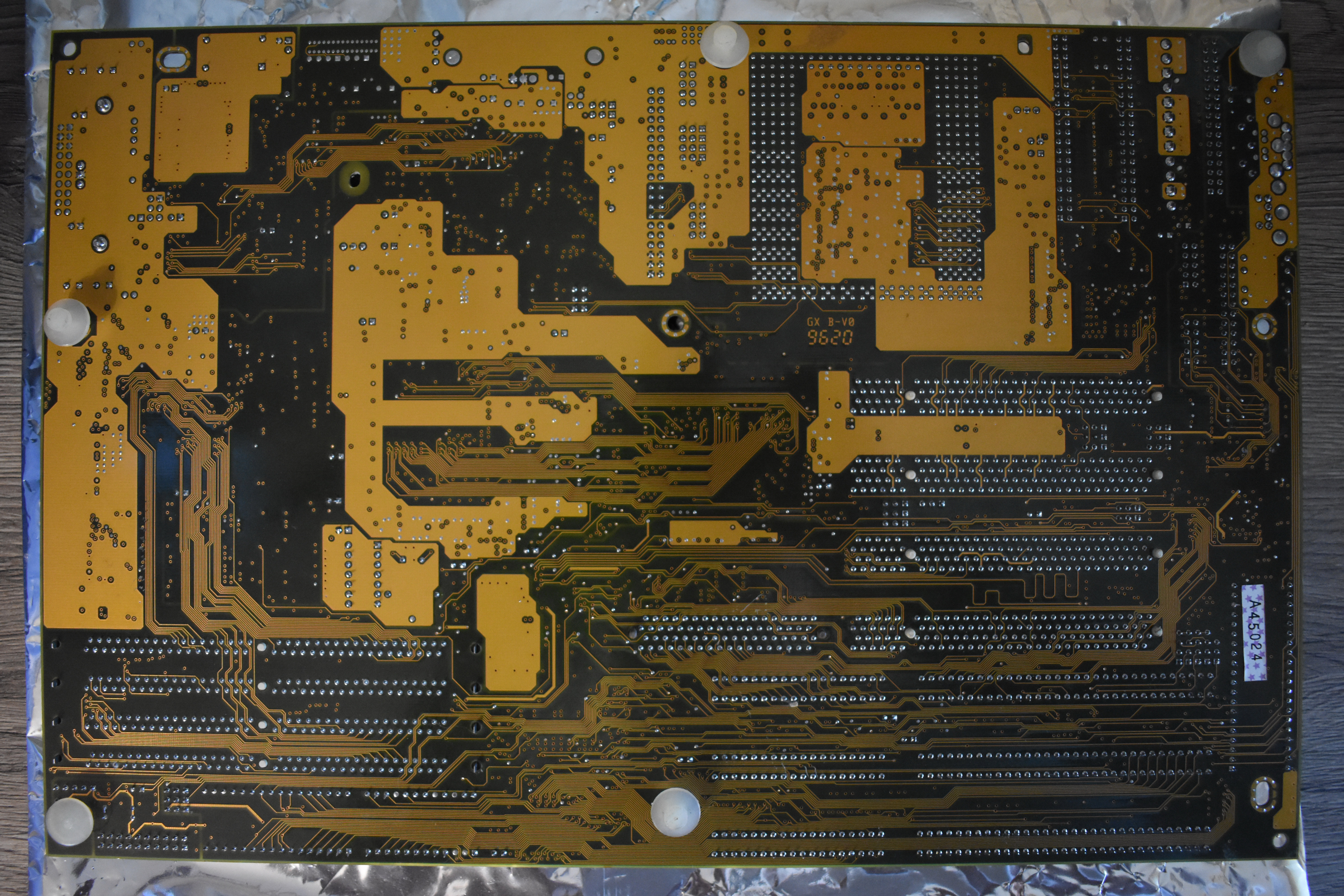

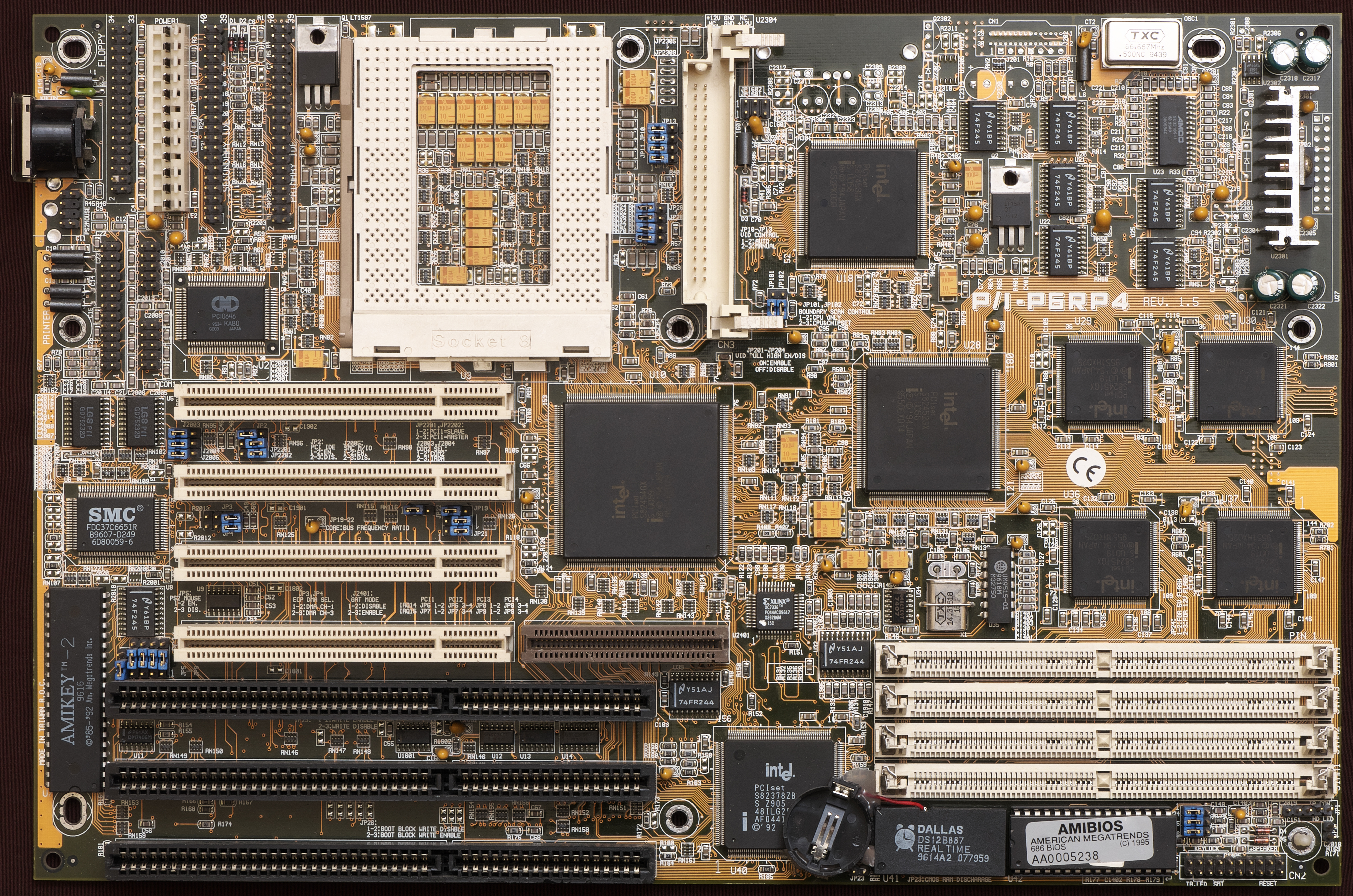

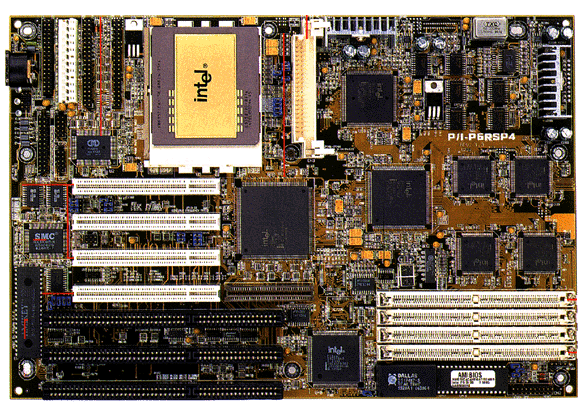

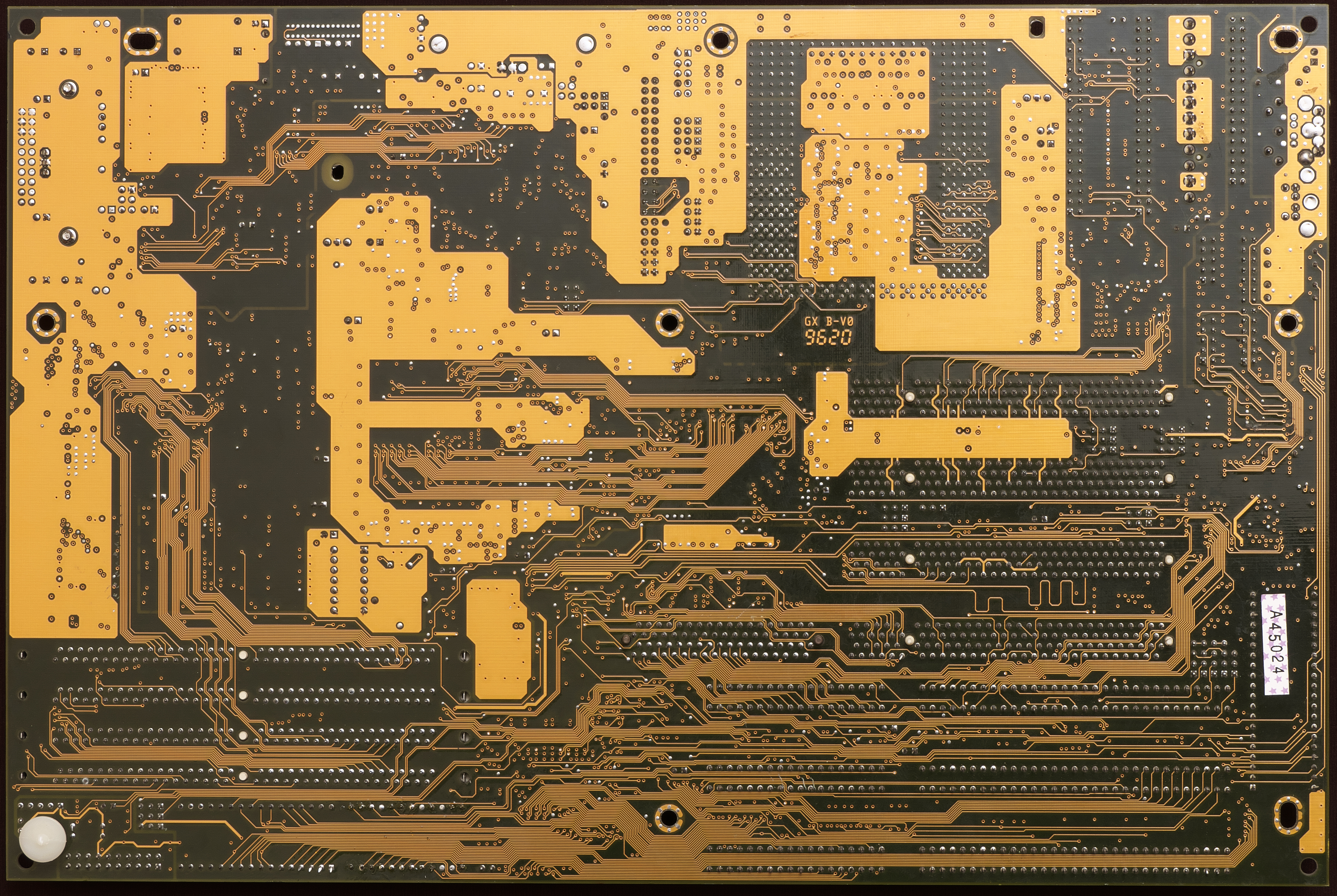

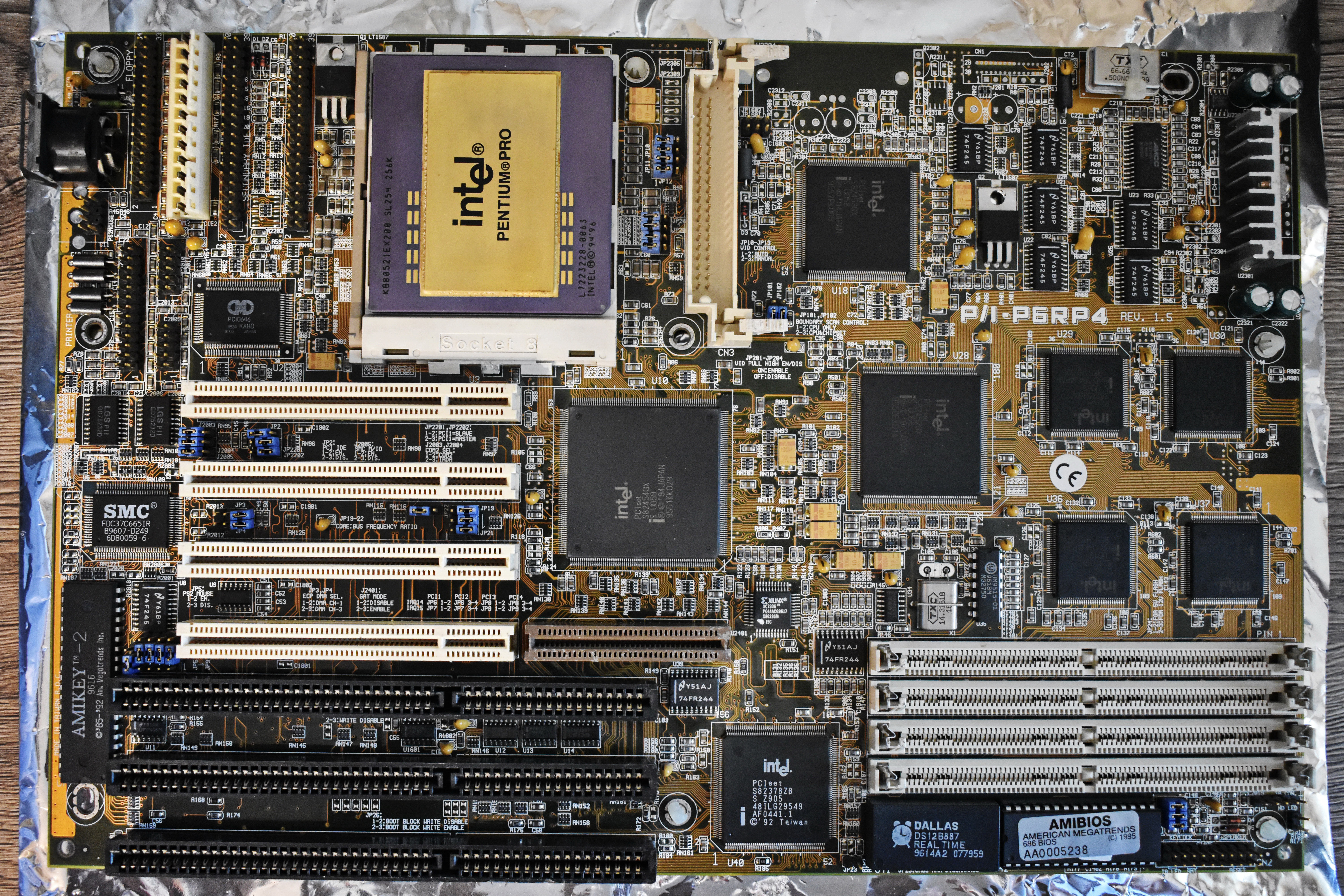

Image 1 of 6 (Microhouse)
Image 2 of 6 (limsup)
Image 3 of 6 (limsup)
Image 4 of 6
Image 5 of 6 (limsup)
Image 6 of 6 (limsup)
